KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )RHD..XTR ; (0610- )RHD..DCB,SCB,THDCB,THSCB

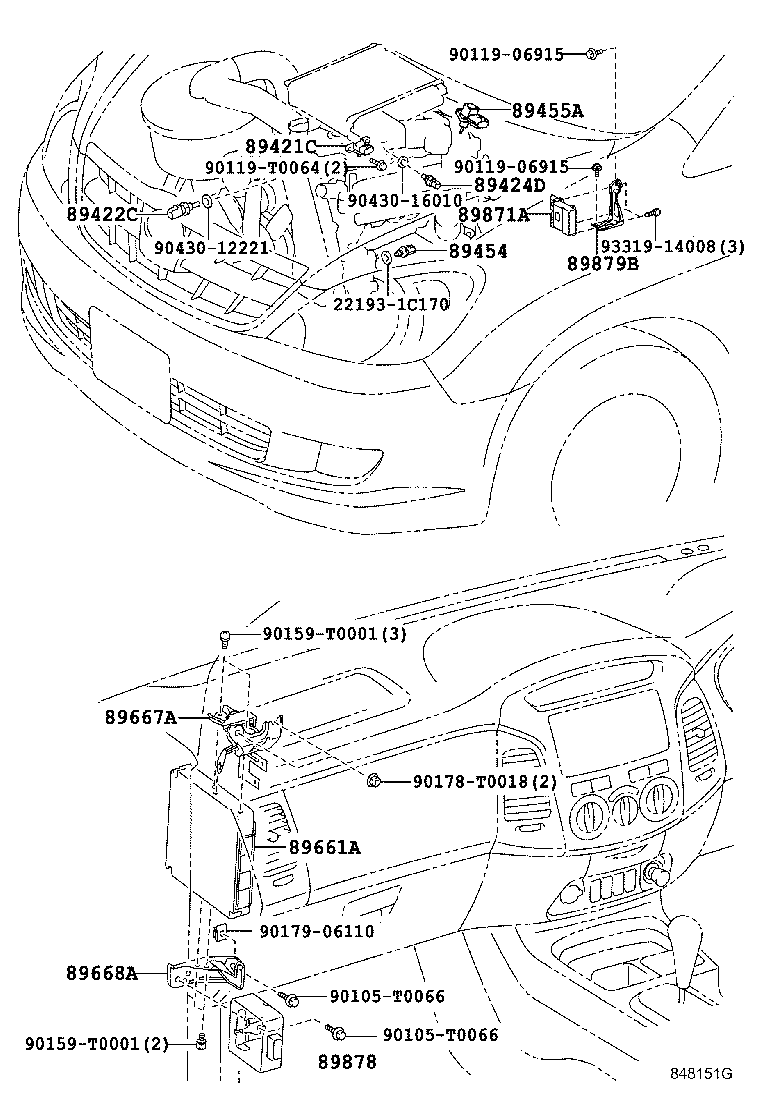

Click highlighted areas on diagram

diagram 221931C170 89421C 89422C 89424D 89454 89455A 89661A 89667A 89668A 89871A 89878 89879B 90105T0066 90105T0066 9011906915 9011906915 90119T0064 90159T0001 90159T0001 90178T0018 9017906110 9043012221 9043016010 9331914008
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030

KUN25..DCB,SCB

 1
89421-71020

KUN15..XTR..DCR;KUN15,25..DCB,SCB

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

KUN15,2#..4FC,5F

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010

KUN25..DCB,SCB

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-20010

KUN15,2#..4FC,5F

 1
89454-60010

KUN15,25

 1
89455A - SENSOR, EGR VALVE POSITION
89455-35020

KUN15,2#..4FC,5F

 1
89661A - COMPUTER, ENGINE CONTROL
89661-0K390

KUN25..DCB,SCB

P/N LABEL=896610KB00

 1
89661-0KD10

KUN25..DCB,SCB

P/N LABEL=896610KD10

 1
89661-0K390

KUN25..DCB,SCB

P/N LABEL=896610K390

 1
89661-0KD20

KUN25..DCB,SCB

P/N LABEL=896610KD20

 1
89661-0KD21

KUN25;KUN15..IV3;KUN15..(DCB,THDCB)..CBU

P/N LABEL=896610KD21

 1
89661-0KD11

KUN25;KUN15..IV3;KUN15..(DCB,THDCB)..CBU

P/N LABEL=896610KD11

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K010

KUN15,2#..RHD..5F

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K030

KUN15,2#..RHD..5F

 1
89871A - DRIVER, INJECTOR
89871-71010

KUN15,25

 1
89879B - BRACKET, INJECTOR DRIVER
89879-71010

KUN15,2#..RHD..(4FC,5F)

 1
Common parts
22193-1C170
90105-T0066
90119-06915
90119-T0064
90159-T0001
90178-T0018
90179-06110
90430-12221
90430-16010
93319-14008

(0507-0608)RHD..XTR ; (0507-0610)RHD..DCB,SCB

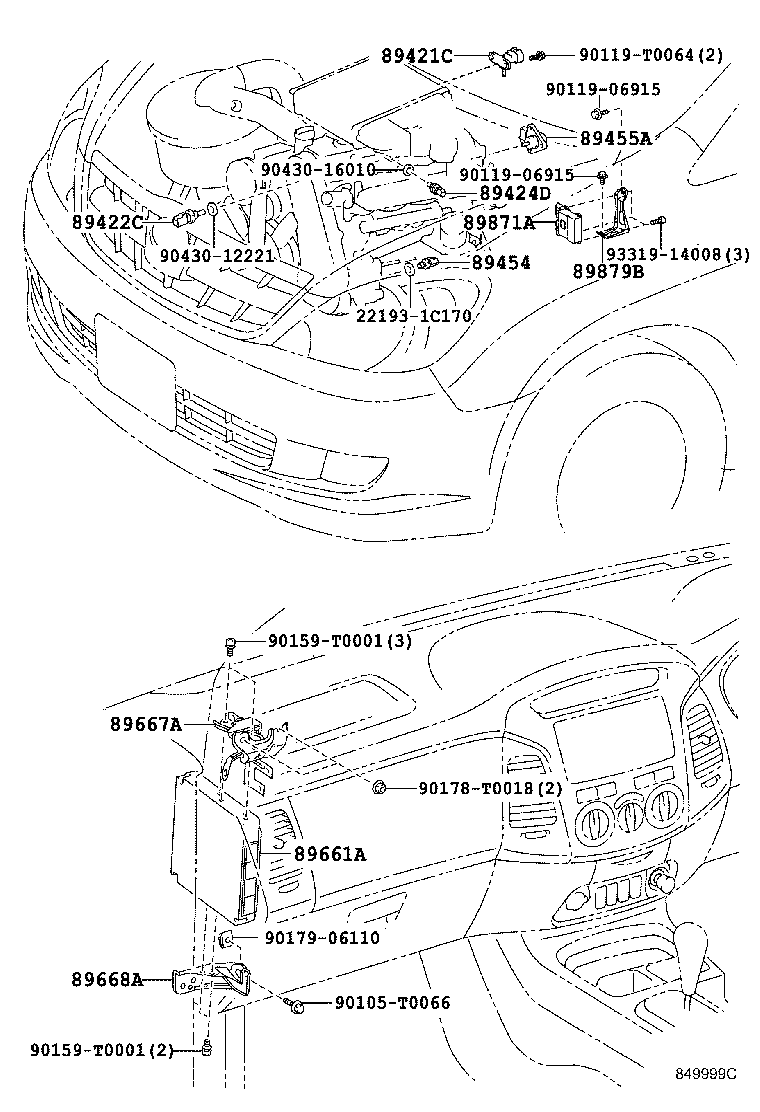

Click highlighted areas on diagram

diagram 221931C170 89421C 89422C 89424D 89454 89455A 89661A 89667A 89668A 89871A 89879B 90105T0066 9011906915 9011906915 90119T0064 90159T0001 90159T0001 90178T0018 9017906110 9043012221 9043016010 9331914008
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030

KUN25..DCB,SCB

 1
89421-71020

KUN15..XTR..DCR;KUN15,25..DCB,SCB

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

KUN15,2#..4FC,5F

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010

KUN25..DCB,SCB

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-20010

KUN15,2#..4FC,5F

 1
89454-60010

KUN15,25

 1
89455A - SENSOR, EGR VALVE POSITION
89455-35020

KUN15,2#..4FC,5F

 1
89661A - COMPUTER, ENGINE CONTROL
89661-0K390

KUN25..DCB,SCB

P/N LABEL=896610KB00

 1
89661-0KD10

KUN25..DCB,SCB

P/N LABEL=896610KD10

 1
89661-0K390

KUN25..DCB,SCB

P/N LABEL=896610K390

 1
89661-0KD20

KUN25..DCB,SCB

P/N LABEL=896610KD20

 1
89661-0KD21

KUN25;KUN15..IV3;KUN15..(DCB,THDCB)..CBU

P/N LABEL=896610KD21

 1
89661-0KD11

KUN25;KUN15..IV3;KUN15..(DCB,THDCB)..CBU

P/N LABEL=896610KD11

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K010

KUN15,2#..RHD..5F

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K030

KUN15,2#..RHD..5F

 1
89871A - DRIVER, INJECTOR
89871-71010

KUN15,25

 1
89879B - BRACKET, INJECTOR DRIVER
89879-71010

KUN15,2#..RHD..(4FC,5F)

 1
Common parts
22193-1C170
90105-T0066
90119-06915
90119-T0064
90159-T0001
90178-T0018
90179-06110
90430-12221
90430-16010
93319-14008
