KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608-0808)THDCB,THSCB,XTR ; (0608-0810)DCB,SCB

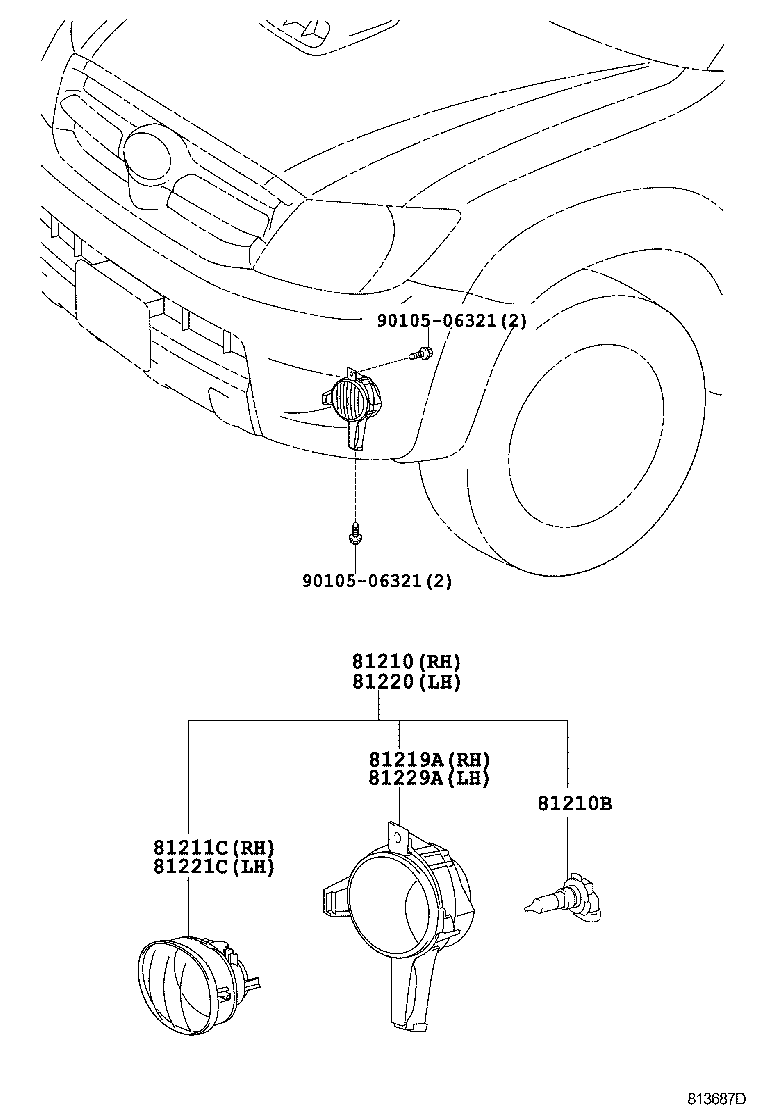

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81219A 81220 81221C 81229A 9010506321 9010506321
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-0K021

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-13047

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-0D070

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81219A - BRACKET, FOG LAMP, RH
81219-0K021

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81220 - LAMP ASSY, FOG, LH
81220-0K020

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-0D070

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81229A - BRACKET, FOG LAMP, LH
81229-0K020

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
Common parts
90105-06321

(0808- )THDCB,THSCB,XTR ; (0810- )DCB,SCB

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81220 81221C 81481G 81482E 90119T0162 90119T0162 90119T0162 9017906127 9017906127 9017906127
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-0K021

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-13047

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-0D070

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81220 - LAMP ASSY, FOG, LH
81220-0K020

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-0D070

KUN25..RHD..SR;KUN15,25..DLX..HDCR;KUN25..LHD..(THDCB,XTR)..SR

FRONT FOG LAMP-WITH

 1
Common parts
90119-T0162
90179-06127

(1107-1210)

Click highlighted areas on diagram

51W

diagram 5252 81210 81210B 81211C 81220 81221C
Part # Description Qty Price
Linked diagrams
5252
