KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0507- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74603 74611B 74617A 74617C 9015960353 9015960353 9015960353 90162T0001 90162T0001
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0K070B0

KUN15,25..RHD..(DCB,SCB)..DLX

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-0K080B0

KUN15,25..RHD..(DCB,SCB)..DLX

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

 1
74320-0K050B0

KUN15,25..RHD..(DCB,SCB)..DLX

LT.GRAY,TRIM1#

 1
74348B - HOLDER, VISOR, RH
74348-0K020B0

KUN15,2#..DCB,SCB

LT.GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-0K020B0

KUN15,2#..DCB,SCB

LT.GRAY,TRIM1#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K030B0

KUN2#..DCB,SCB

LT.GRAY,TRIM1#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K030B0

KUN2#..DCB,SCB

LT.GRAY,TRIM1#

 2
74611B - GRIP, ASSIST
74611-0K010B0

KUN15,25..(DCB,SCB)..DLX

LT.GRAY,TRIM1#

 1
74617A - PLUG, ASSIST GRIP
74615-0K020B0

KUN2#..DCB,SCB

LT.GRAY,TRIM1#,FRONT-RH,REAR-LH

 2
74616-0K020B0

KUN2#..DCB,SCB

LT.GRAY,TRIM1#,FRONT-LH,REAR-RH

 2
Common parts
90159-60353
90162-T0001

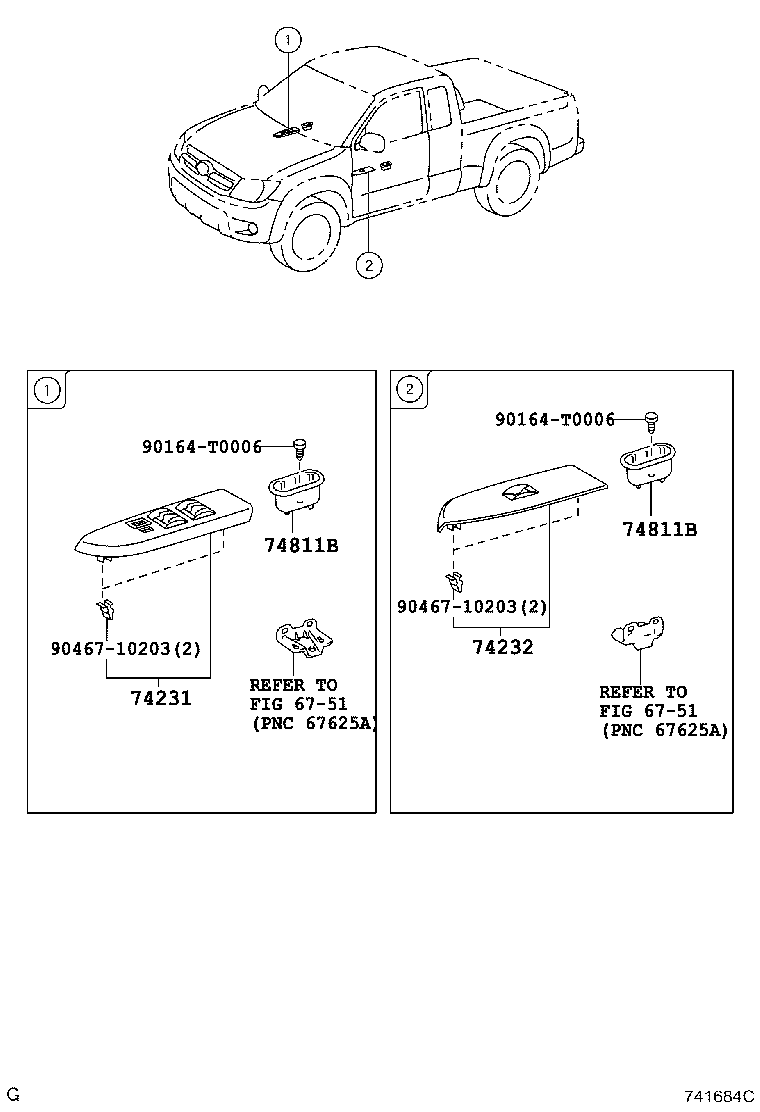

ILLUST NO. 1 OF 2(0507- )RHD..SCB,THSCB,XTR

Click highlighted areas on diagram

ARMREST

diagram 6751 6751 74231 74232 74811B 74811B 90164T0006 90164T0006 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0K060B0

KUN15,25..RHD..(SCB,THSCB,XTR)

GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0K030B0

KUN15,25..RHD..(DCB,SCB)..DLX

GRAY,TRIM1#

 1
74811B - HANDLE, DOOR PULL
74811-0K020B0

KUN15,25..SCB

GRAY,TRIM1#

 2
74811B - HANDLE, DOOR PULL
74811-0K020B0

KUN15,25..SCB

GRAY,TRIM1#

 2
Common parts
90164-T0006
90467-10203
Linked diagrams
6751
