KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

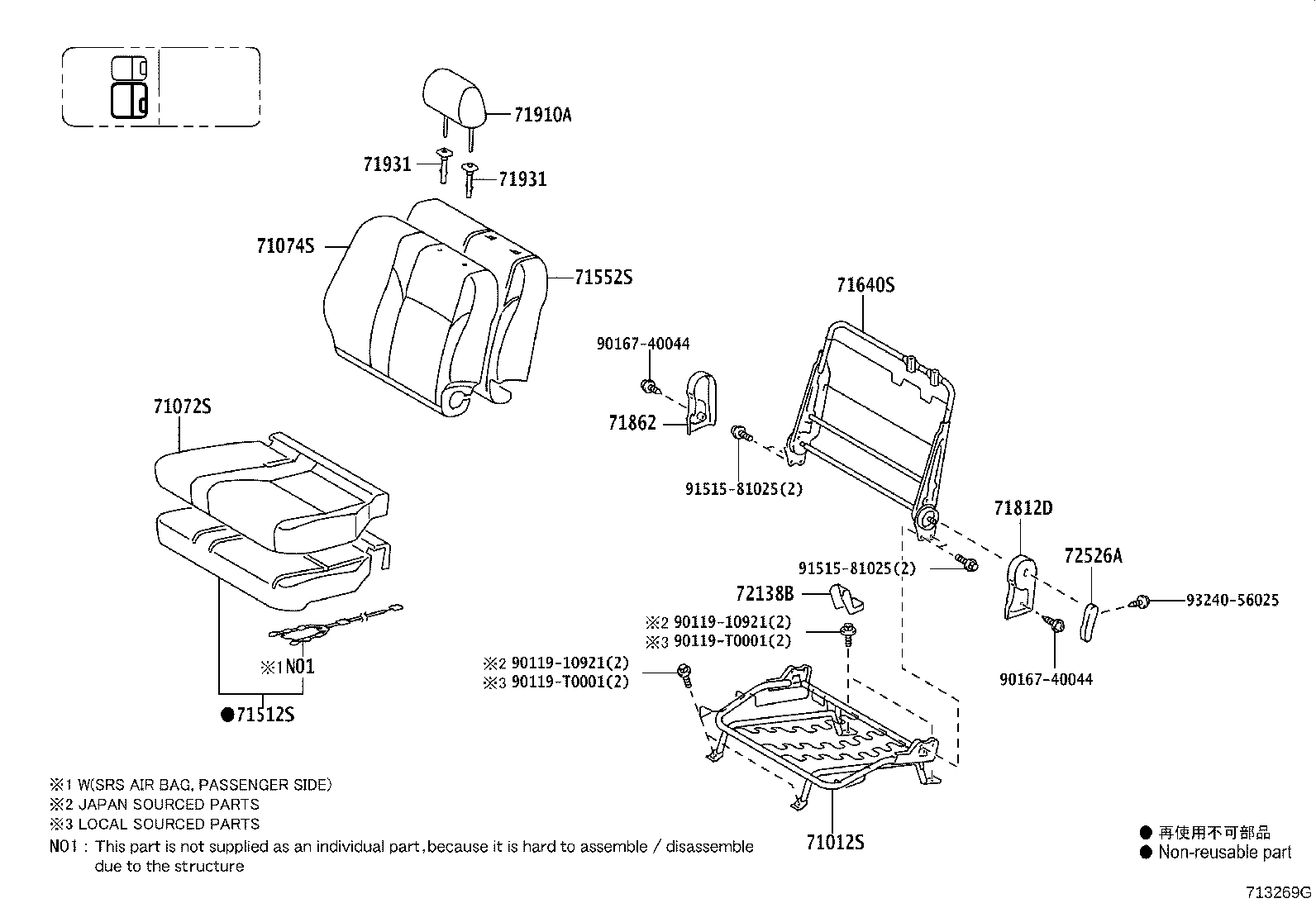

ILLUST NO. 2 OF 3(0507- )RHD..SCB,THSCB

Click highlighted areas on diagram

PASSENGER SEAT(FOR TWO PEOPLE TYPE)

diagram 71012S 71072S 71074S 71512S 71552S 71640S 71812D 71862 71910A 71931 71931 72138B 72526A 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9151581025 9151581025 9324056025
Part # Description Qty Price
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71011-0K030

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71012-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71011-0K050

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71011-0K050

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0K030B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71072-0K190B1

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71072-0K190B1

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0K200B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71074-0K030B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71051-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71512-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71511-0K050

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71052-0K010

KUN15,25..RHD..(SCB,THSCB)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71552-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71640-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71640-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
71812-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
71811-0K010B0

KUN15,25..RHD..(SCB,THSCB)..HDCR

GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
71862-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
71861-0K010B0

KUN15,25..RHD..(SCB,THSCB)..HDCR

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K280B2

KUN15,25..SCB

MID. GRAY,TRIM10

 2
71910-0K280B4

KUN15,25..SCB

MID.GRAY,TRIM10

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
72526-0K040B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
72525-0K010B0

KUN15,25..RHD..(SCB,THSCB)

GRAY,TRIM1#

 1
Common parts
90119-10921
90119-T0001
90167-40044
91515-81025
93240-56025

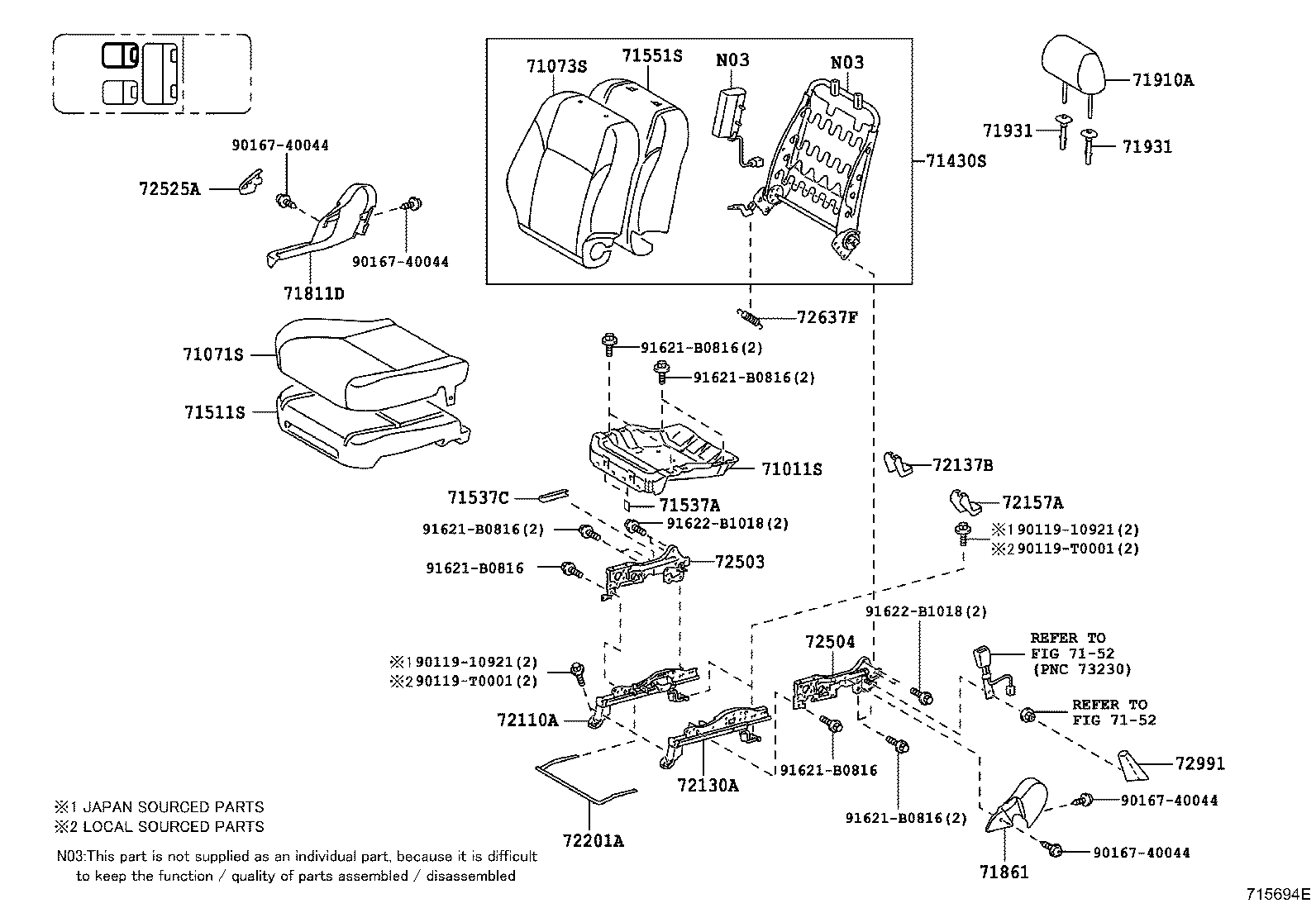

ILLUST NO. 1 OF 3(0507- )RHD

Click highlighted areas on diagram

DRIVER SEAT

diagram 71011S 71071S 71073S 71511S 7152 7152 71537A 71537C 71551S 71630S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72525A 72637F 72991 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K030

KUN15..SR;KUN15,25..RHD..SCB;KUN15..(DCB,XTR)..DCR

 1
71011-0K050

KUN15,25..RHD..SCB

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K190B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71071-0K190B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71071-0K120B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K150B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71073-0K200B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71073-0K200B2

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020

KUN15,25..SCB,THSCB

 2
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 4
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 4
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-71010

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71551-0K050

KUN15,25..RHD..(SCB,THSCB)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K040

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B0

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B0

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K280B2

KUN15,25..SCB

MID. GRAY,TRIM10

 2
71910-0K280B4

KUN15,25..SCB

MID.GRAY,TRIM10

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K010

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K030

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B0

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

GRAY,TRIM1#

 1
72637F - SPRING, SEAT BACK, RH
72637-0K010

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K010

KUN26..THDCB..(4FC,5F);KUN15,25..LHD..(THDCB,XTR);KUN15,25..RHD..(SCB,THDCB,THSCB,XTR)

 1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

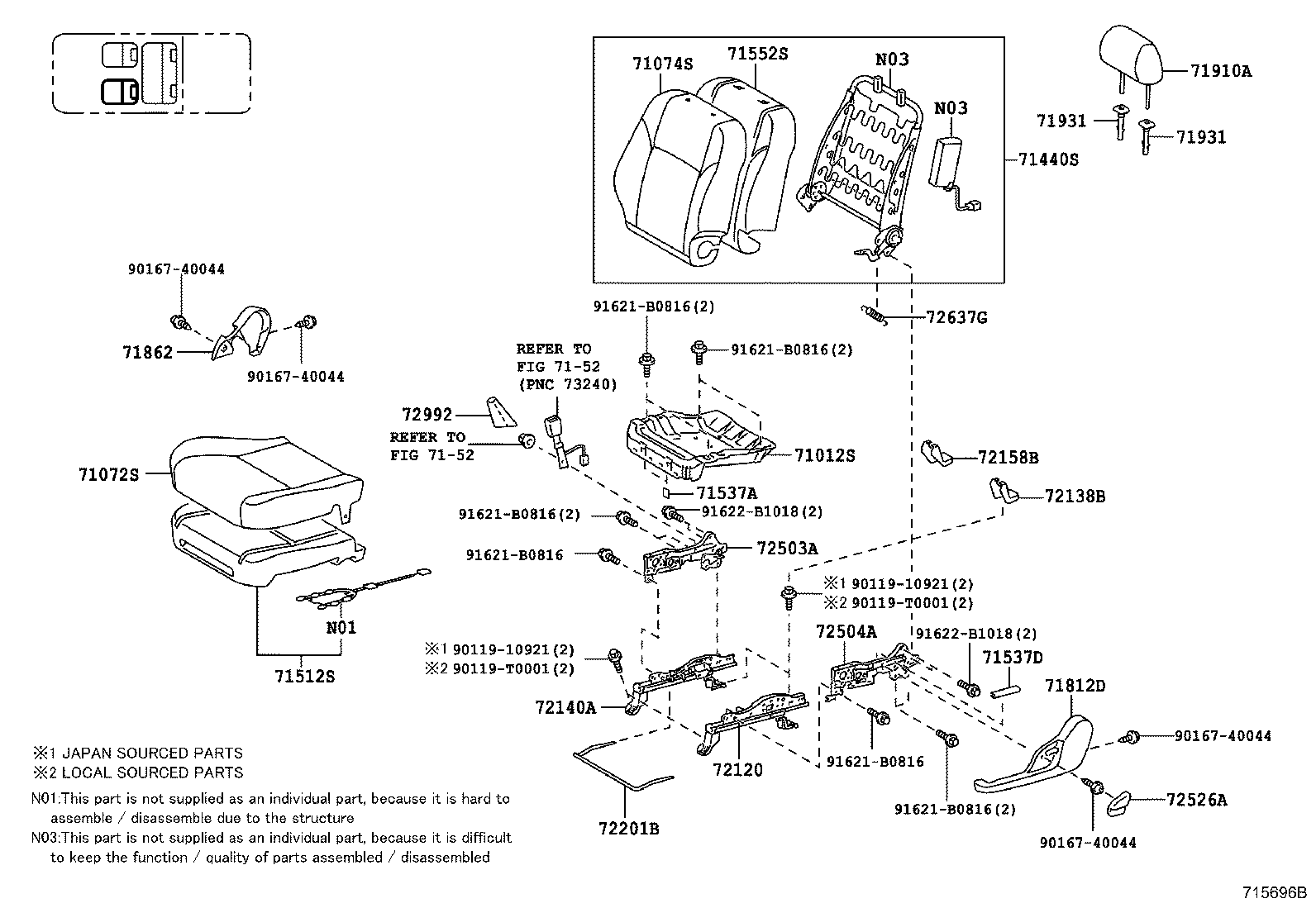

ILLUST NO. 2 OF 3(0507- )RHD..DCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

PASSENGER SEAT(FOR ONE PERSON TYPE)

diagram 71012S 71072S 71074S 71512S 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72504A 72526A 72637G 72992 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71011-0K030

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71012-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71011-0K050

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71011-0K050

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0K030B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71072-0K190B1

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71072-0K190B1

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0K200B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71074-0K030B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71051-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71512-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71511-0K050

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71052-0K010

KUN15,25..RHD..(SCB,THSCB)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020

KUN15,25..SCB,THSCB

 2
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 4
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 4
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-71010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71537-71010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71552-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71640-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71640-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
71812-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
71811-0K010B0

KUN15,25..RHD..(SCB,THSCB)..HDCR

GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
71862-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
71861-0K010B0

KUN15,25..RHD..(SCB,THSCB)..HDCR

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K280B2

KUN15,25..SCB

MID. GRAY,TRIM10

 2
71910-0K280B4

KUN15,25..SCB

MID.GRAY,TRIM10

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72120-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72140-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72211-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72503-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K030

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72504-0K030

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
72526-0K040B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
72525-0K010B0

KUN15,25..RHD..(SCB,THSCB)

GRAY,TRIM1#

 1
72637G - SPRING, SEAT BACK, LH
72637-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72637-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72991-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(0808- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(SRS SIDE AIR BAG)

diagram 71011S 71071S 71073S 71430S 71511S 7152 7152 71537A 71537C 71551S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72525A 72637F 72991 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K030

KUN15..SR;KUN15,25..RHD..SCB;KUN15..(DCB,XTR)..DCR

 1
71011-0K050

KUN15,25..RHD..SCB

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K190B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71071-0K190B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71071-0K120B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K150B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71073-0K200B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71073-0K200B2

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020

KUN15,25..SCB,THSCB

 2
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 4
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 4
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-71010

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71551-0K050

KUN15,25..RHD..(SCB,THSCB)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B0

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B0

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K280B2

KUN15,25..SCB

MID. GRAY,TRIM10

 2
71910-0K280B4

KUN15,25..SCB

MID.GRAY,TRIM10

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K010

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010

KUN15,25..RHD;KUN25..LHD..(DCB,THDCB);KUN15,26..(DCB,THDCB)..(4FC,5F)

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K030

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B0

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

GRAY,TRIM1#

 1
72637F - SPRING, SEAT BACK, RH
72637-0K010

KUN25..RHD;KUN15..RHD..(SCB,THSCB);KUN25..LHD..(DCB,THDCB,XTR);KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K010

KUN26..THDCB..(4FC,5F);KUN15,25..LHD..(THDCB,XTR);KUN15,25..RHD..(SCB,THDCB,THSCB,XTR)

 1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 3(0808- )RHD

Click highlighted areas on diagram

PASSENGER SEAT W(SRS SIDE AIR BAG)

diagram 71012S 71072S 71074S 71440S 71512S 7152 7152 71537A 71537D 71552S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72504A 72526A 72637G 72992 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71011-0K030

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71012-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71011-0K050

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71011-0K050

KUN15,25..RHD..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0K030B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71072-0K190B1

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71072-0K190B1

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0K200B2

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#

 1
71074-0K030B1

KUN15,25..RHD..SCB

MID.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71051-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71512-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71511-0K050

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71052-0K010

KUN15,25..RHD..(SCB,THSCB)

SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020

KUN15,25..SCB,THSCB

 2
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 4
71537-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 4
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-71010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71537-71010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
71551-0K020

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
71552-0K010

KUN15,25..RHD..(SCB,THSCB)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
71812-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
71811-0K010B0

KUN15,25..RHD..(SCB,THSCB)..HDCR

GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
71862-0K020B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
71861-0K010B0

KUN15,25..RHD..(SCB,THSCB)..HDCR

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K280B2

KUN15,25..SCB

MID. GRAY,TRIM10

 2
71910-0K280B4

KUN15,25..SCB

MID.GRAY,TRIM10

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02080B3

KUN15,2#..DCB,SCB

W(LOCK),GRAY,TRIM1#

 2
71931-02060B1

KUN15,2#..DCB,SCB

W/O(LOCK),GRAY,TRIM1#

 2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72120-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72140-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72211-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72503-0K040

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K030

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72504-0K030

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#

 1
72526-0K040B0

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

 1
72525-0K010B0

KUN15,25..RHD..(SCB,THSCB)

GRAY,TRIM1#

 1
72637G - SPRING, SEAT BACK, LH
72637-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72637-0K010

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
72991-0K020

KUN15,25..RHD..(SCB,THSCB)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

 1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152
