KUN25R-TRMDHW (2005)
Toyota Hilux

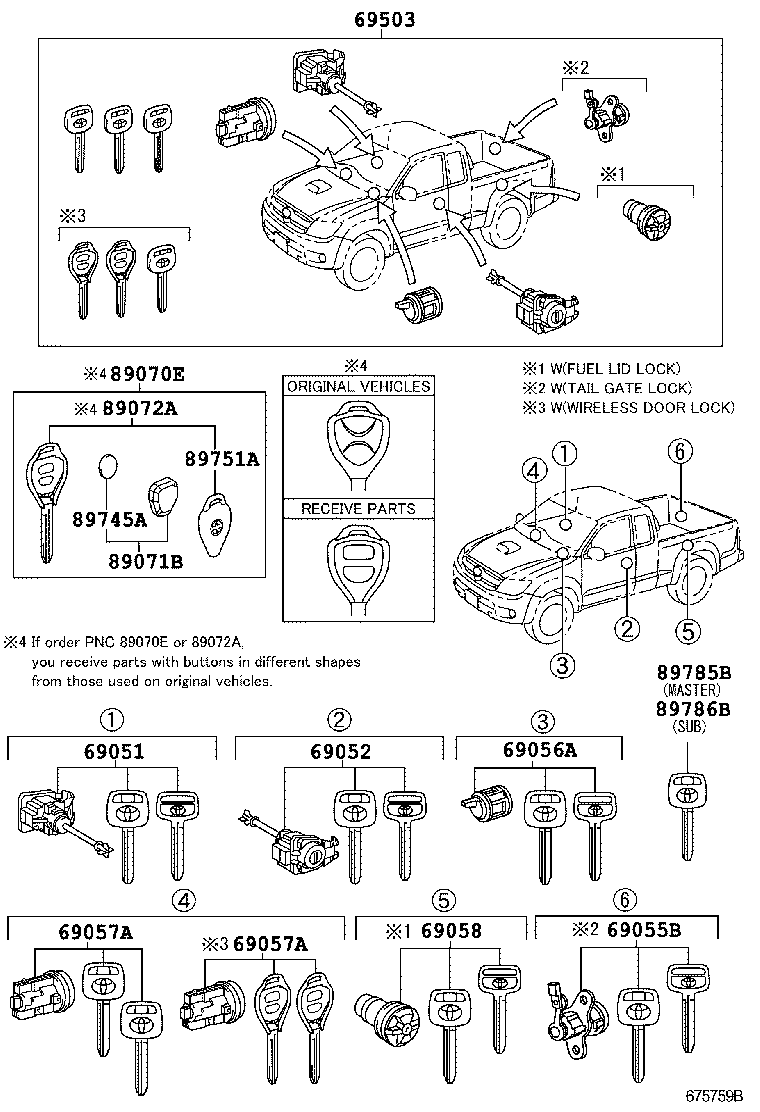

(0507-0604)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0K011 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,THSCB,XTR |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K010 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,THSCB,XTR |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K010 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,THSCB,XTR |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K050 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 69057-0K051 |
KUN15,26..(4FC,5F)..SR;KUN25..LHD..(DCB,XTR)..SR;KUN15,25..RHD..(DCB,SCB,THSCB,XTR) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K050 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 69057-0K051 |
KUN15,26..(4FC,5F)..SR;KUN25..LHD..(DCB,XTR)..SR;KUN15,25..RHD..(DCB,SCB,THSCB,XTR) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0K061 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 69005-0K062 |
KUN15,26..(4FC,5F)..SR;KUN25..LHD..(DCB,XTR)..SR;KUN15,25..RHD..(DCB,SCB,THSCB,XTR) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-71140 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 89070-0K330 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 89070-0K151 |
KUN26;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89070-0K150 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-71010 |
KUN15,25..SR;KUN15,25..RHD..DLX |
2 | ||
| 89071-71050 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
2 | ||
| 89071-71051 |
KUN15,25..RHD;KUN26..4FC,5F;KUN25..LHD..SR |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-71150 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89072-71150 |
KUN26;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89072-0K090 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
KUN15,25..RHD;KUN25..LHD..SR;KUN15,26..(4FC,5F)..SR |
2 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-26010 |
KUN15,25..SR;KUN15,25..RHD..DLX |
2 | ||
| 89751-02090 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
2 | ||
| 89751-28070 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
2 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-08020 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,XTR BLANK KEY |
1 | ||

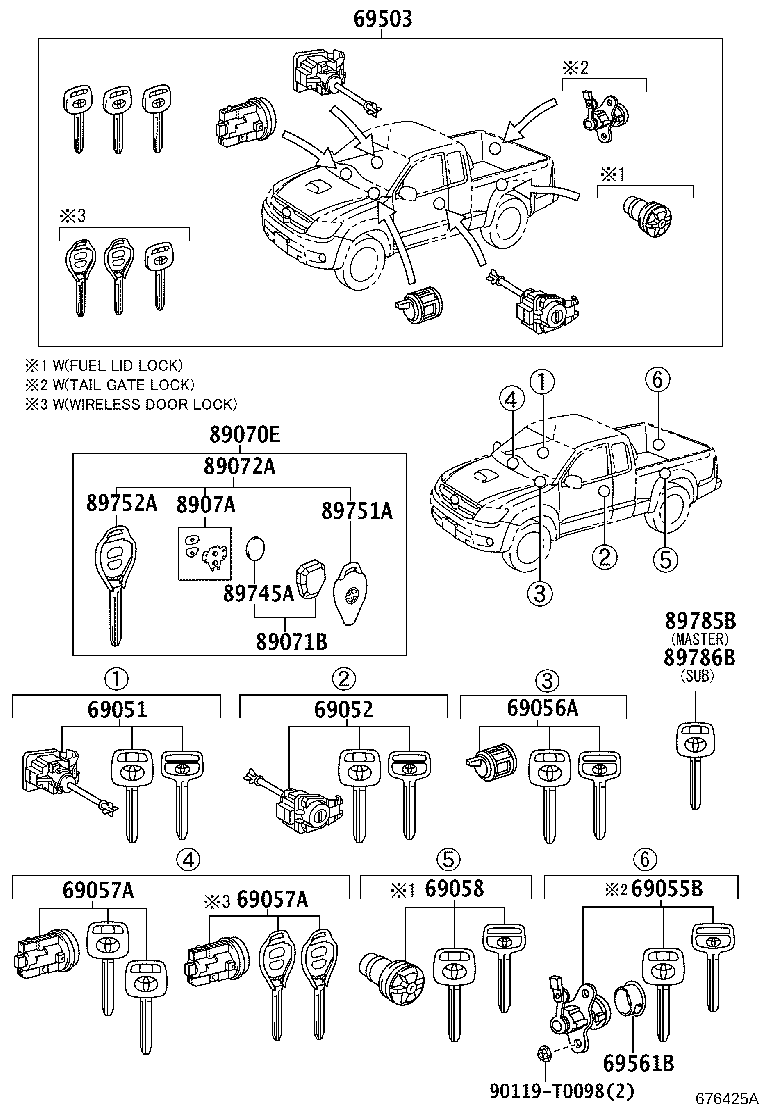

(0604- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0K011 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,THSCB,XTR |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K010 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,THSCB,XTR |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K010 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,THSCB,XTR |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K050 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 69057-0K051 |
KUN15,26..(4FC,5F)..SR;KUN25..LHD..(DCB,XTR)..SR;KUN15,25..RHD..(DCB,SCB,THSCB,XTR) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K050 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 69057-0K051 |
KUN15,26..(4FC,5F)..SR;KUN25..LHD..(DCB,XTR)..SR;KUN15,25..RHD..(DCB,SCB,THSCB,XTR) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0K061 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 69005-0K062 |
KUN15,26..(4FC,5F)..SR;KUN25..LHD..(DCB,XTR)..SR;KUN15,25..RHD..(DCB,SCB,THSCB,XTR) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-71140 |
KUN15,25..SR;KUN15,25..RHD..DLX |
1 | ||
| 89070-0K330 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 89070-0K151 |
KUN26;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89070-0K150 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-71010 |
KUN15,25..SR;KUN15,25..RHD..DLX |
2 | ||
| 89071-71050 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
2 | ||
| 89071-71051 |
KUN15,25..RHD;KUN26..4FC,5F;KUN25..LHD..SR |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-71150 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89072-71150 |
KUN26;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89072-0K090 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-71010 |
KUN26..RHD..DCB;KUN15,25..RHD..(DCB,SCB)..HDCR |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
KUN15,25..RHD;KUN25..LHD..SR;KUN15,26..(4FC,5F)..SR |
2 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-26010 |
KUN15,25..SR;KUN15,25..RHD..DLX |
2 | ||
| 89751-02090 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
2 | ||
| 89751-28070 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-28050 |
KUN15,26..SR;KUN15,25..RHD;KUN25..LHD..SR |
1 | ||
| 89752-0K030 |
KUN2#..DCB..SR;KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-08020 |
KUN15,26..4FC,5F;KUN25..DCB,SCB,XTR BLANK KEY |
1 | ||
| Common parts | ||||
| 90119-T0098 | ||||
