KUN25R-TRMDHW (2005)
Toyota Hilux

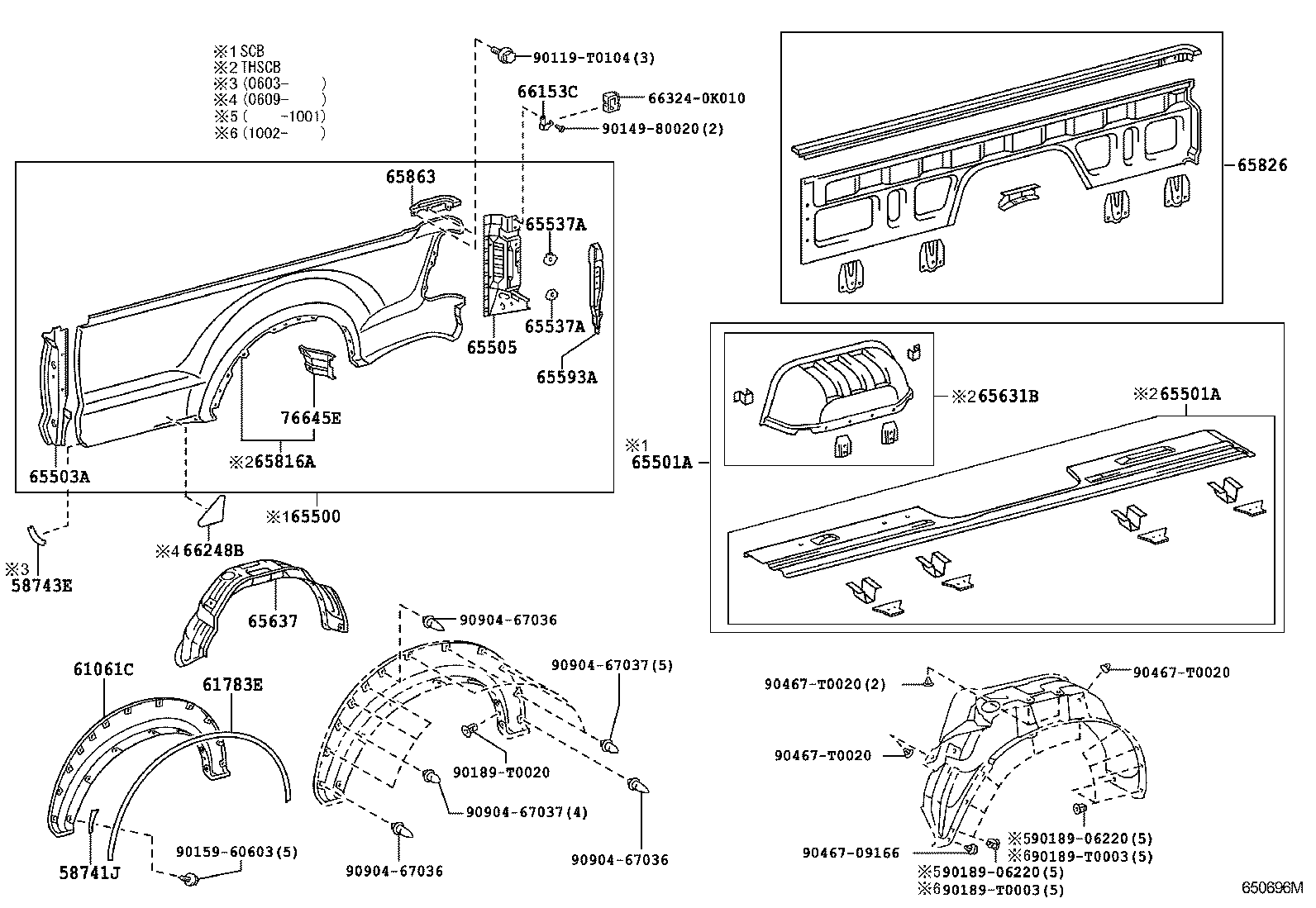

(0507- )SCB,THSCB..CBU
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741J - PROTECTOR, REAR WHEEL EXTENSION, RH | ||||
| 58741-0K020 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 58743E - PROTECTOR, REAR WHEEL EXTENSION, NO.2 RH | ||||
| 58743-0K010 |
KUN15,25..(SCB,THSCB,XTR)..HDCR..CBU |
1 | ||
| 61061C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH | ||||
| 61681-0K908 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 61681-0K908 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH |
1 | ||
| 61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0K040B0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0 ,4P9 ,8P1 |
1 | ||
| 61783-0K040B0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9 ,8P1 |
1 | ||
| 61783-0K040C0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4 |
1 | ||
| 61783-0K040C0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4 |
1 | ||
| 61783-0K041B0 |
KUN25..(DCB,SCB,XTR)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0 |
1 | ||
| 61783-0K041C0 |
KUN25..(DCB,SCB,THDCB,THSCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 61783-0K041C0 |
KUN25..(DCB,SCB,THDCB,THSCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 61783-0K041B0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-0K902 |
KUN15,25..SCB..CBU |
1 | ||
| 65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH | ||||
| 65501-0K901 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 65501-0K901 |
KUN15,25..SCB..CBU |
1 | ||
| 65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH | ||||
| 65501-0K901 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 65501-0K901 |
KUN15,25..SCB..CBU |
1 | ||
| 65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH | ||||
| 65551-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH | ||||
| 65505-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65537A - PATCH, SIDE PANEL REINFORCEMENT, RH | ||||
| 65537-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65537A - PATCH, SIDE PANEL REINFORCEMENT, RH | ||||
| 65537-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH | ||||
| 65593-0K020 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-0K010 |
KUN2#..(DCB,SCB)..CBU;KUN15..(DCB,SCB)..DLX..HDCR..CBU |
1 | ||
| 65637-0K060 |
KUN15,2#..(DCB,SCB)..CBU |
1 | ||
| 65826 - PANEL, REAR BODY SIDE, INNER RH | ||||
| 65826-0K904 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65863 - PANEL, REAR BODY SIDE, UPPER RH | ||||
| 65863-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 66153C - HOOK, TAIL GATE LATCH, NO.1 RH | ||||
| 66153-71010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 66248B - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 58745-0K010 |
KUN15,25..(SCB,THSCB,XTR)..DLX..HDCR..CBU |
1 | ||
| 58745-0K020 |
KUN25..(SCB,THSCB,XTR)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 76645E - BRACKET, RR BODY MUDGUARD, RH | ||||
| 76645-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| Common parts | ||||
| 66324-0K010 | ||||
| 90119-T0104 | ||||
| 90149-80020 | ||||
| 90159-60603 | ||||
| 90189-06220 | ||||
| 90189-T0003 | ||||
| 90189-T0020 | ||||
| 90467-09166 | ||||
| 90467-T0020 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||

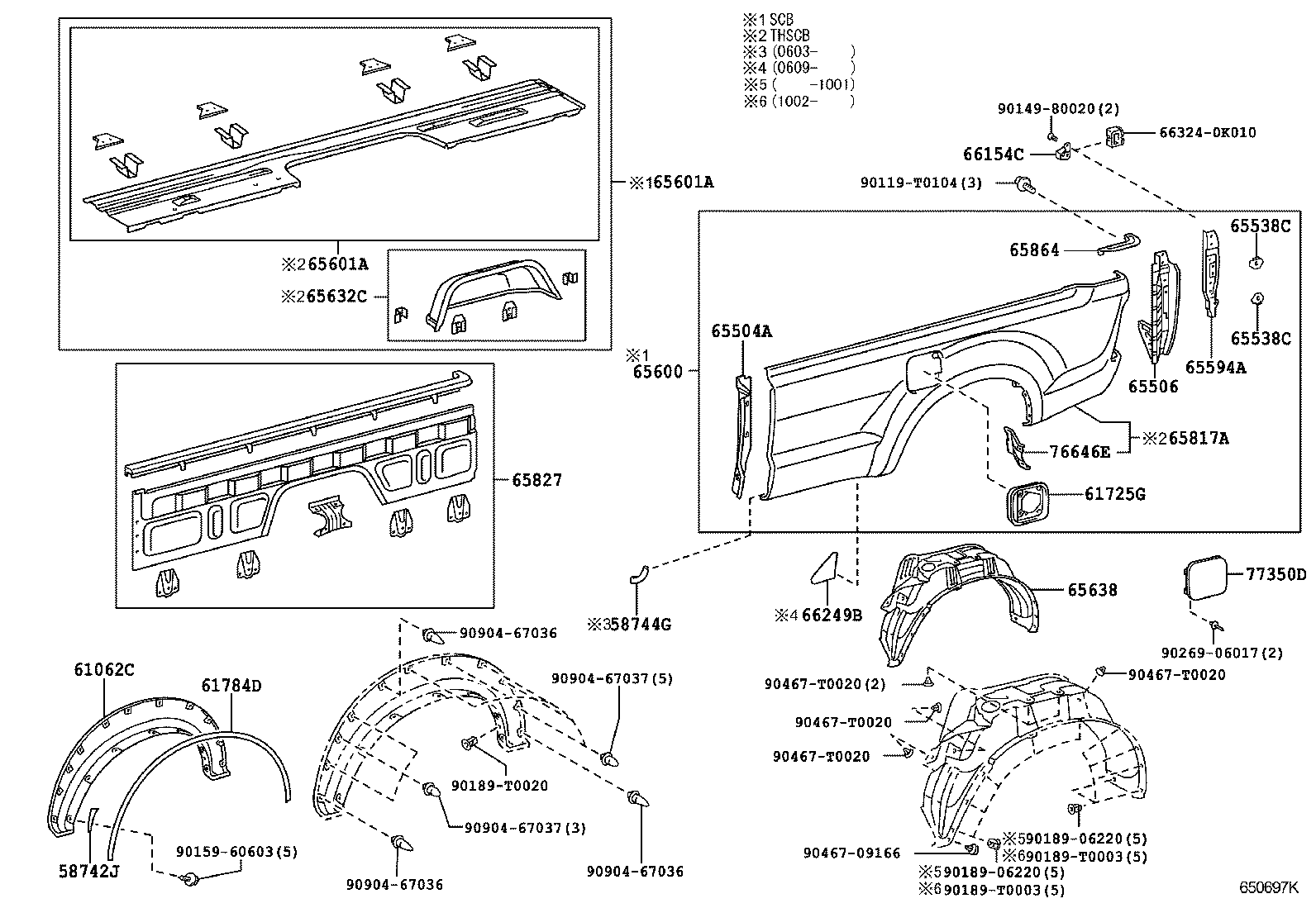

(0507- )SCB,THSCB..CBU
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742J - PROTECTOR, REAR WHEEL EXTENSION, LH | ||||
| 58742-0K020 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 58744G - PROTECTOR, REAR WHEEL EXTENSION, NO.2 LH | ||||
| 58744-0K010 |
KUN15,25..(SCB,THSCB,XTR)..HDCR..CBU |
1 | ||
| 61062C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH | ||||
| 61682-0K908 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 61682-0K908 |
KUN25..SCB..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH |
1 | ||
| 61725G - BOX, FUEL INLET, NO.1 | ||||
| 61725-0K010 |
KUN15,25..(SCB,THSCB,XTR)..CBU |
1 | ||
| 61784D - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-0K040B0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9 ,8P1 |
1 | ||
| 61784-0K040B0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0 ,4P9 ,8P1 |
1 | ||
| 61784-0K040C0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4 |
1 | ||
| 61784-0K040C0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4 |
1 | ||
| 61784-0K041B0 |
KUN25..(DCB,SCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 |
1 | ||
| 61784-0K041B0 |
KUN25..(DCB,SCB,XTR)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,GRAY,040 ,1C0 |
1 | ||
| 61784-0K041C0 |
KUN25..(DCB,SCB,THDCB,THSCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&STEP & STEP COVER-WITH,BLACK,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 61784-0K041C0 |
KUN25..(DCB,SCB,THDCB,THSCB)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH | ||||
| 65552-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH | ||||
| 65506-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65538C - PATCH, SIDE PANEL REINFORCEMENT, LH | ||||
| 65537-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65538C - PATCH, SIDE PANEL REINFORCEMENT, LH | ||||
| 65537-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH | ||||
| 65594-0K020 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-0K902 |
KUN15,25..SCB..CBU |
1 | ||
| 65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH | ||||
| 65601-0K902 |
KUN15,25..SCB..CBU |
1 | ||
| 65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH | ||||
| 65601-0K902 |
KUN15,25..SCB..CBU |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-0K060 |
KUN15,2#..(DCB,SCB)..CBU |
1 | ||
| 65638-0K010 |
KUN2#..(DCB,SCB)..CBU;KUN15..(DCB,SCB)..DLX..HDCR..CBU |
1 | ||
| 65827 - PANEL, REAR BODY SIDE, INNER LH | ||||
| 65827-0K901 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65864 - PANEL, REAR BODY SIDE, UPPER LH | ||||
| 65864-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 66154C - HOOK, TAIL GATE LATCH, NO.1 LH | ||||
| 66154-71010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 66249B - PROTECTOR, REAR BODY SIDE PANEL, LH | ||||
| 58746-0K020 |
KUN25..(SCB,THSCB,XTR)..DLX..CBU TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 58746-0K010 |
KUN15,25..(SCB,THSCB,XTR)..DLX..HDCR..CBU |
1 | ||
| 76646E - BRACKET, RR BODY MUDGUARD, LH | ||||
| 76646-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 77350D - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0K050 |
KUN15,25..(SCB,THSCB,XTR)..CBU |
1 | ||
| Common parts | ||||
| 66324-0K010 | ||||
| 90119-T0104 | ||||
| 90149-80020 | ||||
| 90159-60603 | ||||
| 90189-06220 | ||||
| 90189-T0003 | ||||
| 90189-T0020 | ||||
| 90269-06017 | ||||
| 90467-09166 | ||||
| 90467-T0020 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||
