KUN25R-TRMDHW (2005)
Toyota Hilux
(0507- )SCB,THSCB..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65151-0K010 |
KUN15,25..(SCB,THSCB,XTR)..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
4 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
4 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65223 - REINFORCEMENT, FLOOR PANEL, FRONT, NO.1 RH | ||||
| 65223-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
2 | ||
| 65223 - REINFORCEMENT, FLOOR PANEL, FRONT, NO.1 RH | ||||
| 65223-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
2 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-0K020 |
KUN25..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65240-0K050 |
KUN25..CBU |
1 | ||
| 65240-0K020 |
KUN25..(SCB,THSCB,XTR)..DLX..CBU;KUN25..LHD..(DCB,THDCB)..DLX..CBU REAR BUMPER-STEEL, FLAT TYPE, PAINTED |
1 | ||
| 65263 - REINFORCEMENT, FLOOR SIDE FRAME | ||||
| 65263-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65263 - REINFORCEMENT, FLOOR SIDE FRAME | ||||
| 65263-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-0K010 |
KUN15,25..(SCB,THSCB)..CBU |
1 | ||
| 65671E - BRACE, SIDE PANEL SKIRT, FRONT RH | ||||
| 65608-0K010 |
KUN15,25..(SCB,XTR)..DLX..CBU TYPE A:REFER ILLUST. |
1 | ||
| 65608-0K020 |
KUN15,25..(SCB,THSCB,XTR)..DLX..CBU TYPE B:REFER ILLUST. |
1 | ||
| 65671E - BRACE, SIDE PANEL SKIRT, FRONT RH | ||||
| 65608-0K010 |
KUN15,25..(SCB,XTR)..DLX..CBU TYPE A:REFER ILLUST. |
1 | ||
| 65608-0K020 |
KUN15,25..(SCB,THSCB,XTR)..DLX..CBU TYPE B:REFER ILLUST. |
1 | ||
| 65671E - BRACE, SIDE PANEL SKIRT, FRONT RH | ||||
| 65608-0K010 |
KUN15,25..(SCB,XTR)..DLX..CBU TYPE A:REFER ILLUST. |
1 | ||
| 65608-0K020 |
KUN15,25..(SCB,THSCB,XTR)..DLX..CBU TYPE B:REFER ILLUST. |
1 | ||
| 65672G - BRACE, SIDE PANEL SKIRT, FRONT LH | ||||
| 65609-0K020 |
KUN15,25..(SCB,THSCB,XTR)..DLX..CBU TYPE B:REFER ILLUST. |
1 | ||
| 65609-0K010 |
KUN15,25..(SCB,XTR)..DLX..CBU TYPE A:REFER ILLUST. |
1 | ||
| 65672G - BRACE, SIDE PANEL SKIRT, FRONT LH | ||||
| 65609-0K020 |
KUN15,25..(SCB,THSCB,XTR)..DLX..CBU TYPE B:REFER ILLUST. |
1 | ||
| 65609-0K010 |
KUN15,25..(SCB,XTR)..DLX..CBU TYPE A:REFER ILLUST. |
1 | ||
| 65672G - BRACE, SIDE PANEL SKIRT, FRONT LH | ||||
| 65609-0K020 |
KUN15,25..(SCB,THSCB,XTR)..DLX..CBU TYPE B:REFER ILLUST. |
1 | ||
| 65609-0K010 |
KUN15,25..(SCB,XTR)..DLX..CBU TYPE A:REFER ILLUST. |
1 | ||
| 65739A - BUMPER, TAIL GATE | ||||
| 65739-0K040 |
KUN25..CBU RH |
1 | ||
| 65738-0K020 |
KUN25..CBU LH |
1 | ||
| 65739A - BUMPER, TAIL GATE | ||||
| 65739-0K040 |
KUN25..CBU RH |
1 | ||
| 65738-0K020 |
KUN25..CBU LH |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76607-0K040 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76608-0K040 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| Common parts | ||||
| 90119-T0139 | ||||
| 90119-T0183 | ||||
| 90154-T0002 | ||||
| 90159-50108 | ||||

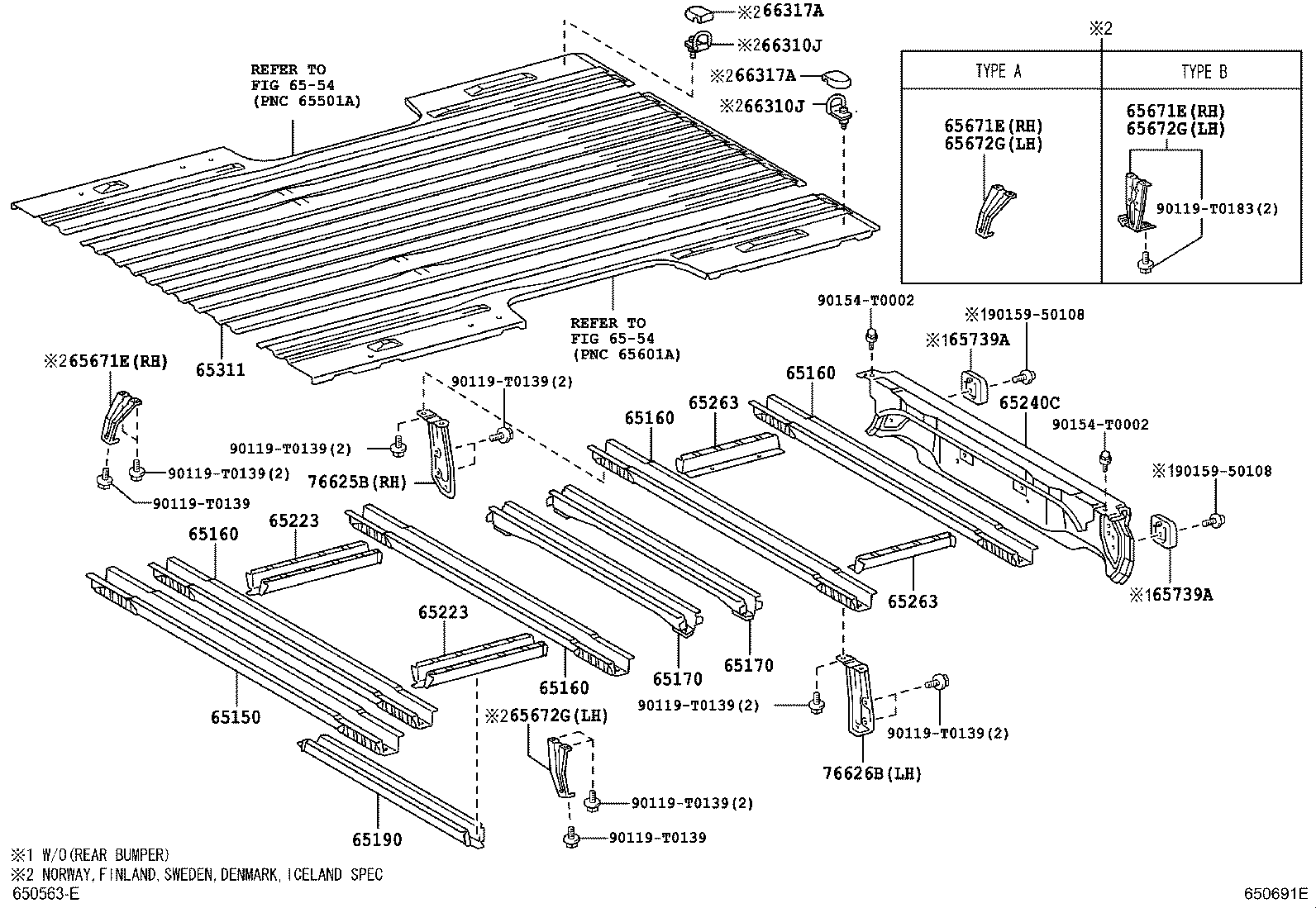

| Linked diagrams | ||||
| 6554 | ||||
