KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )SCB,THSCB

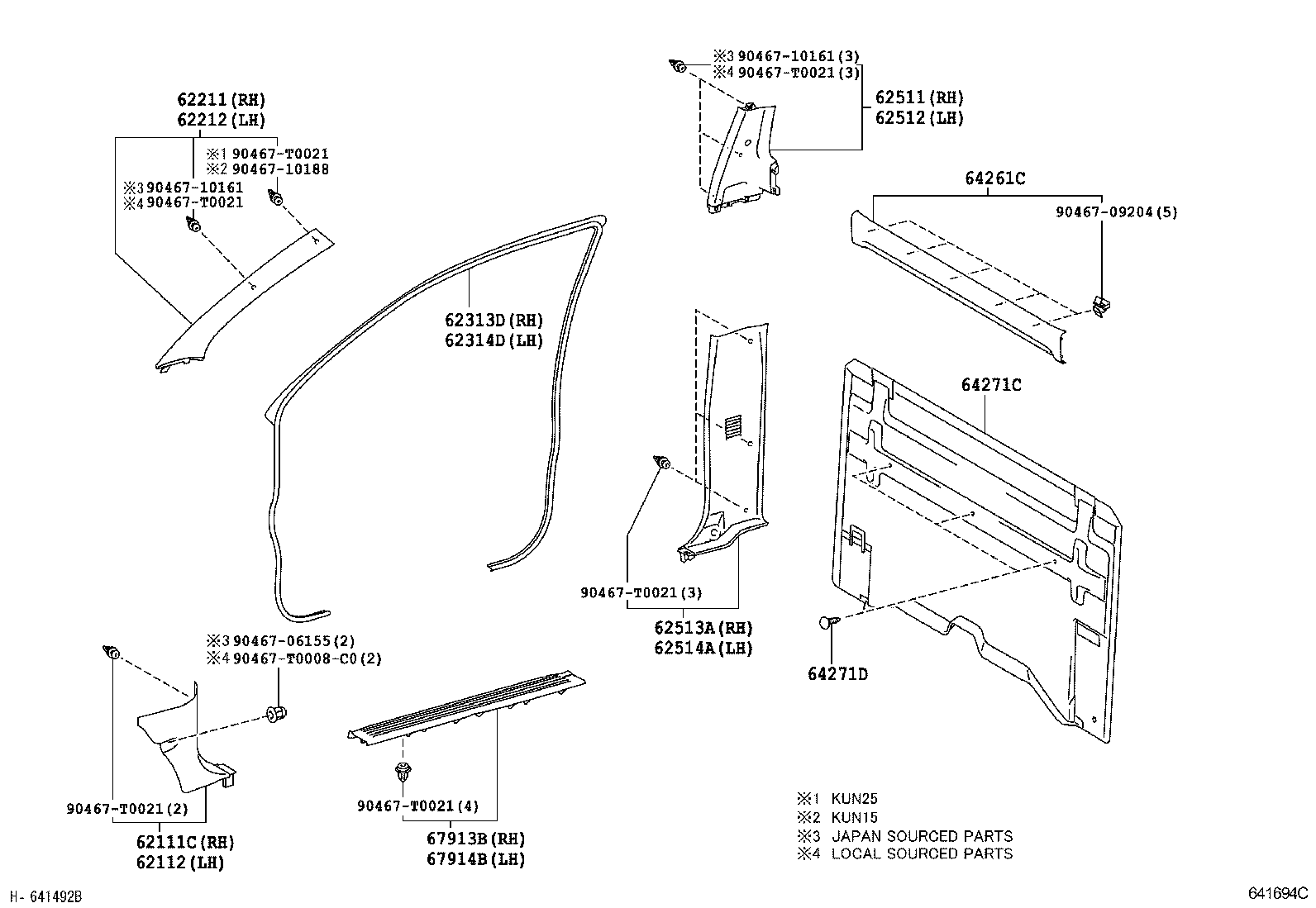

Click highlighted areas on diagram

diagram 62111C 62112 62211 62212 62313D 62314D 62511 62512 62513A 62514A 64261C 64271C 64271D 67913B 67914B 9046706155 9046709204 9046710161 9046710161 9046710188 90467T0008C0 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0K100B0

KUN15,2#..DCB,SCB

GRAY,TRIM1#

 1
62111-0K020B0

KUN15,25..DCB,SCB

GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0K020B0

KUN15,25..DCB,SCB

GRAY,TRIM1#

 1
62112-0K100B0

KUN15,2#..DCB,SCB

GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-0K040B0

KUN2#..DCB,SCB

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-0K040B0

KUN2#..DCB,SCB

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-0K010

KUN15,25..SCB,THSCB

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-0K010

KUN15,25..SCB,THSCB

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-0K050B0

KUN15,25..SCB

LT.GRAY,TRIM1#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-0K050B0

KUN15,25..SCB

LT.GRAY,TRIM1#

 1
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-0K050B0

KUN15,25..SCB

GRAY,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-0K050B0

KUN15,25..SCB

GRAY,TRIM1#

 1
64261C - GARNISH, BACK PANEL, UPPER
64261-0K020B1

KUN15,2#..DCB,SCB

LT.GRAY,TRIM1#

 1
64271C - TRIM, BACK PANEL
64271-0K050C0

KUN15,25..SCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),BLACK,TRIM1#

 1
64271D - CLIP(FOR BACK PANEL TRIM)
90467-T0004C1

KUN15,25..SCB,THSCB

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),BLACK,TRIM1#

 3
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-0K050B0

KUN15,25..SCB

GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-0K050B0

KUN15,25..SCB

GRAY,TRIM1#

 1
Common parts
90467-06155
90467-09204
90467-10161
90467-10188
90467-T0008C0
90467-T0021
