KUN25R-TRMDHW (2005)
Toyota Hilux
(0507- )SCB,THSCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
KUN15,2#..4FC,5F |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
KUN15,2#..4FC,5F |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-0K060 |
KUN15,25..(SCB,THSCB,XTR)..HDCR |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-0K050 |
KUN15,25..(SCB,THSCB,XTR)..HDCR |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0K020 |
KUN2# |
1 | ||
| 61023-0K130 |
KUN2#..4FC,5F |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0K130 |
KUN2#..4FC,5F |
1 | ||
| 61024-0K020 |
KUN2# |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0K030 |
KUN15,25..RHD..(SCB,THSCB,XTR) |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0K030 |
KUN15,25..RHD..(SCB,THSCB,XTR) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61210-0K020 |
KUN15,25..SCB,THSCB,XTR |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61220-0K020 |
KUN15,25..SCB,THSCB,XTR |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-0K010 |
KUN15,25..SCB,THSCB,XTR |
2 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61235-0K010 |
KUN15,25..SCB,THSCB,XTR |
2 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-0K020 |
KUN15,25..SCB,THSCB |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-0K020 |
KUN15,25..SCB,THSCB |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-0K020 |
KUN15,25..SCB,THSCB |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-0K020 |
KUN15,25..SCB,THSCB |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-0K020 |
KUN15,25..SCB,THSCB,XTR |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-0K030 |
KUN15,25..SCB,THSCB,XTR |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0K020 |
KUN15,25..SCB,THSCB |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0K020 |
KUN15,25..SCB,THSCB |
1 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-0K010 |
KUN25..SCB |
6 | ||
| 62155-0K010 |
KUN25..SCB;KUN15..(SCB,XTR)..DCR |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-0K010 |
KUN25..SCB |
6 | ||
| 62155-0K010 |
KUN25..SCB;KUN15..(SCB,XTR)..DCR |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62557-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62557-0K010 |
KUN15,2#..4FC,5F |
2 | ||

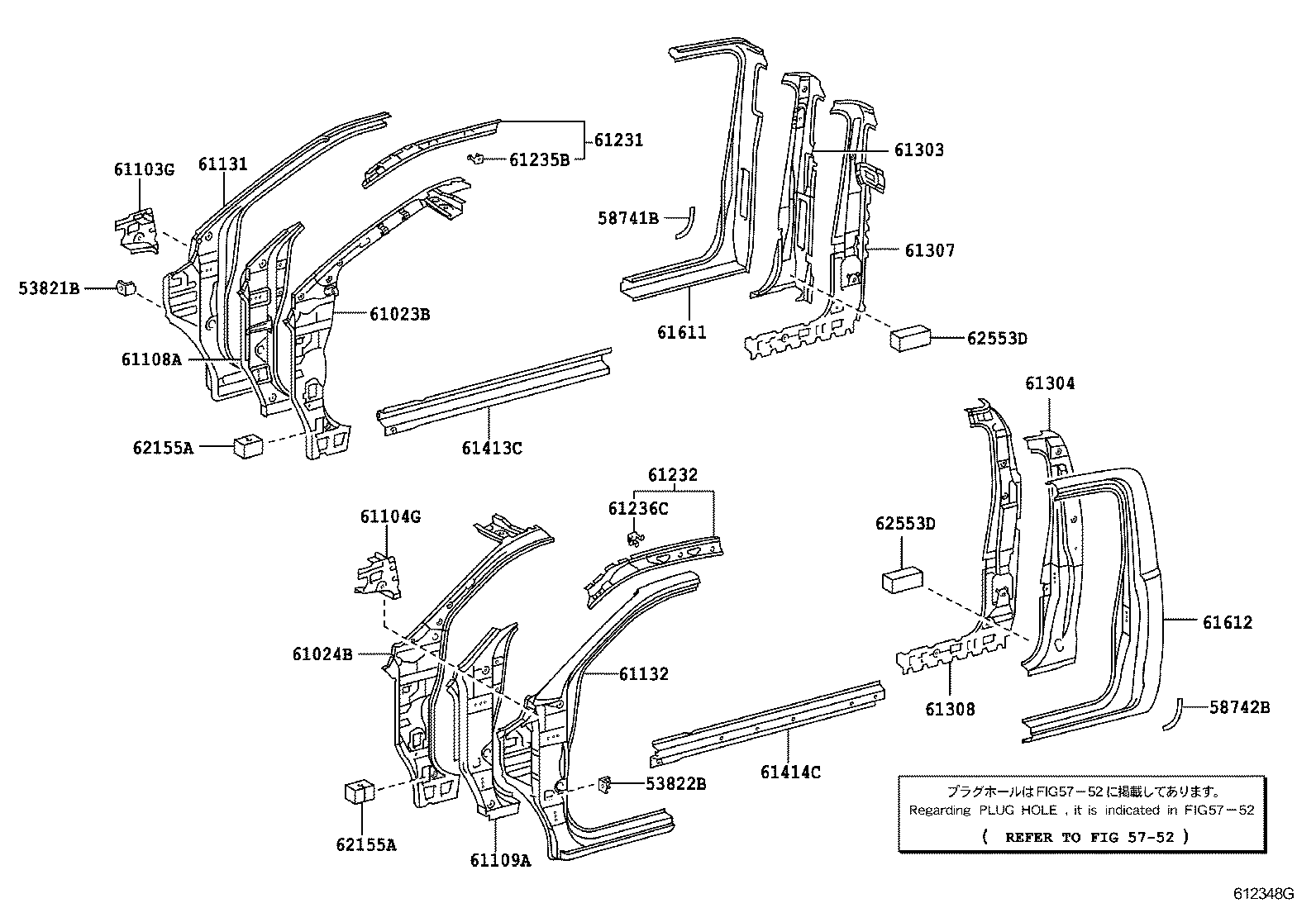

| Linked diagrams | ||||
| 5752 | ||||
