Toyota Hilux KUN25 HOOD & FRONT FENDER

Manufacturers Home
Toyota
EU
HILUX
KUN25R-TRMDHW (2005)
5353 - HOOD & FRONT FENDER

KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

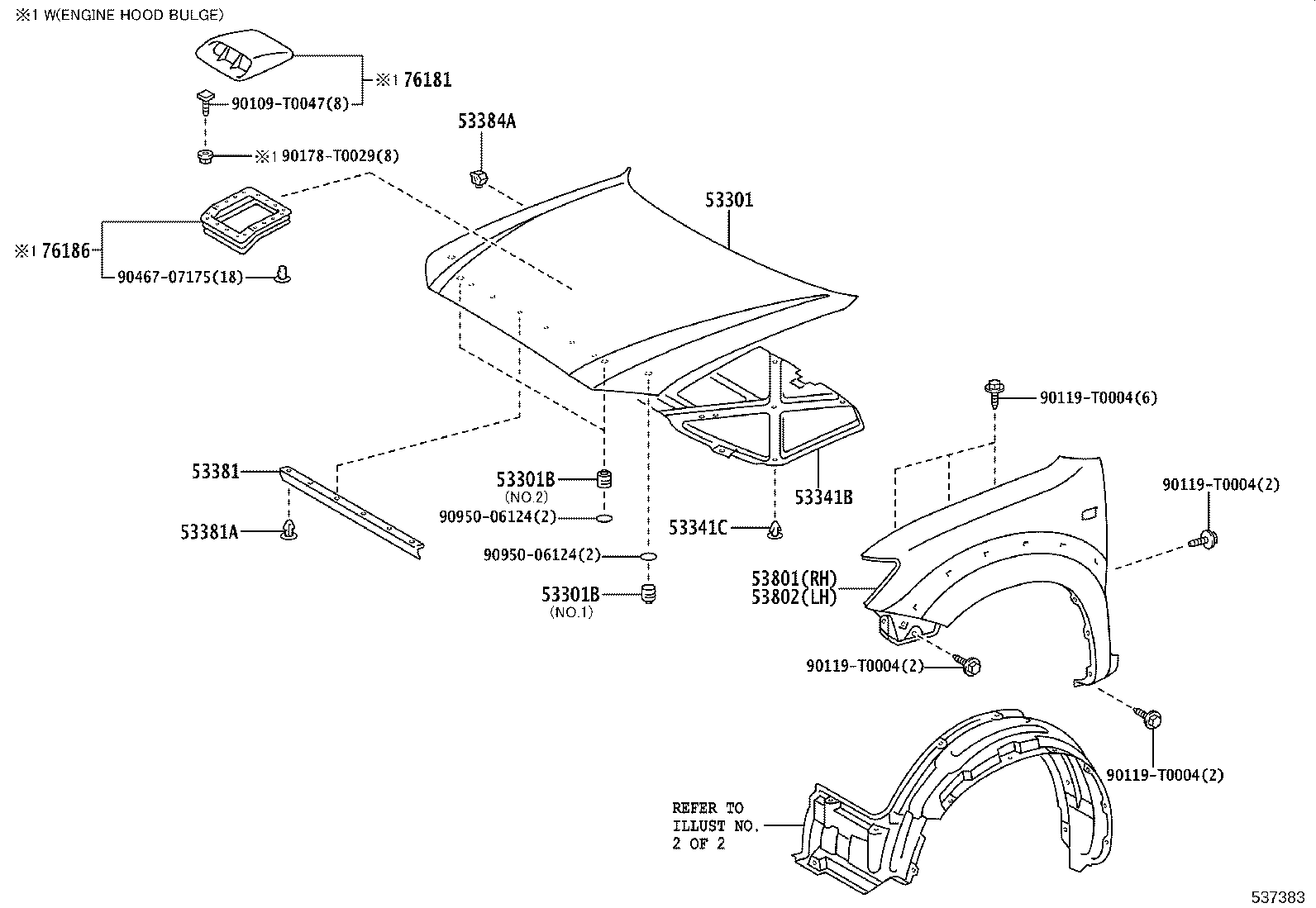

(0507-0608)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-0K010	KUN15..XTR..DCR;KUN15,25..DCB,SCB	07/2005 - 10/2006	1
53301-0K020	KUN25..DCB,SCB	10/2006 - 02/2007	1
53301-0K021	KUN15,2#..4FC,5F	03/2007 - 10/2008	1
53301B - CUSHION, HOOD BUMPER
90541-15019	KUN15,2#..4FC,5F (J),NO.1	01/2007 - 10/2008	2
90541-T0006	KUN15,2#..4FC,5F (L),NO.1	01/2007 - 10/2008	2
90541-15024	KUN15,2#..4FC,5F NO.2	07/2005 - 10/2008	2
90541-15019	KUN15,2# NO.1	07/2005 - 01/2007	2
53301B - CUSHION, HOOD BUMPER
90541-15019	KUN15,2#..4FC,5F (J),NO.1	01/2007 - 10/2008	2
90541-T0006	KUN15,2#..4FC,5F (L),NO.1	01/2007 - 10/2008	2
90541-15024	KUN15,2#..4FC,5F NO.2	07/2005 - 10/2008	2
90541-15019	KUN15,2# NO.1	07/2005 - 01/2007	2
53341B - INSULATOR, HOOD
53341-0K030	KUN15,2#..DCB,SCB	10/2006 - 10/2008	1
53341-0K040	KUN15,25..DCB,SCB	07/2005 - 10/2006	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014	KUN15..XTR..DCR;KUN15,25..DCB,SCB	07/2005 - 10/2006	14
90467-T0014	KUN25..DCB,SCB	10/2006 - 10/2008	15
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0K010	KUN15,2#..4FC,5F	07/2005 - 10/2008	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013	KUN15,2#..4FC,5F	07/2005 - 10/2008	6
53384A - BUMPER, FENDER TO HOOD
53384-0K010	KUN15,2#..4FC,5F	07/2005 - 10/2008	2
53801 - FENDER SUB-ASSY, FRONT RH
53811-0K010	KUN15;KUN25..DLX	07/2005 - 10/2008	1
53811-0K020	KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)	07/2005 - 10/2008	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-0K010	KUN15;KUN25..DLX	07/2005 - 10/2008	1
53812-0K020	KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)	07/2005 - 10/2008	1
76181 - BULGE, HOOD
76180-0K906	KUN15,2#..DCB,SCB	10/2006 - 10/2008	1
76186 - SEAL, HOOD AIR INTAKE
76186-0K010	KUN25..DCB,SCB	10/2006 - 10/2008	1
Common parts
90109-T0047
90119-T0004
90178-T0029
90467-07175
90950-06124

ILLUST NO. 2 OF 2(0507-0608)

Click highlighted areas on diagram

FENDER LINER

Part #	Description	Period	Qty
53875A - LINER, FRONT FENDER, RH
53875-0K010	KUN15,25	07/2005 - 08/2006	1
53876A - LINER, FRONT FENDER, LH
53876-0K010	KUN15,25	07/2005 - 08/2006	1
Common parts
90159-60603
90189-T0014
Linked diagrams
5152

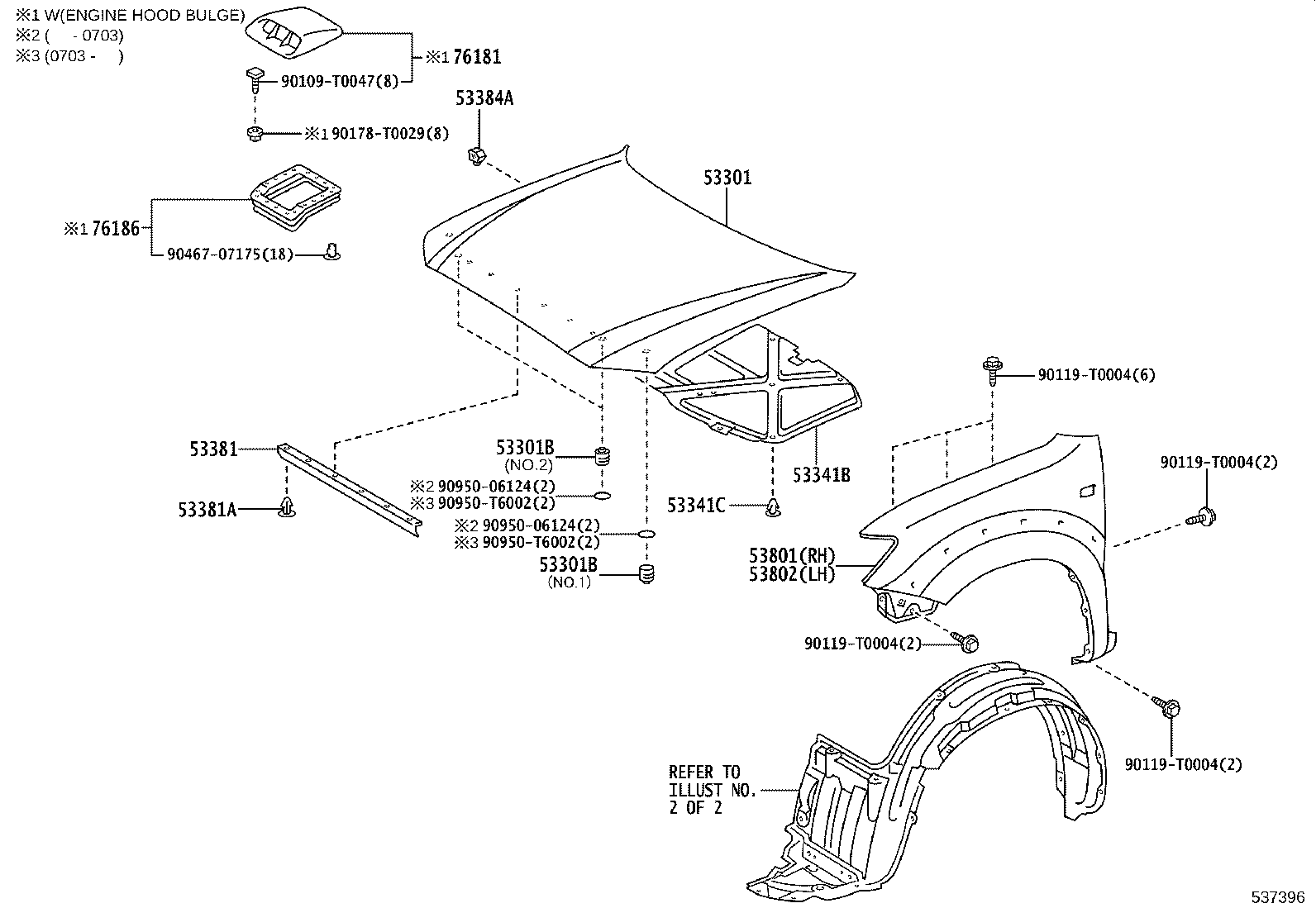

ILLUST NO. 1 OF 2(0608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-0K010	KUN15..XTR..DCR;KUN15,25..DCB,SCB	07/2005 - 10/2006	1
53301-0K020	KUN25..DCB,SCB	10/2006 - 02/2007	1
53301-0K021	KUN15,2#..4FC,5F	03/2007 - 10/2008	1
53301B - CUSHION, HOOD BUMPER
90541-15019	KUN15,2#..4FC,5F (J),NO.1	01/2007 - 10/2008	2
90541-T0006	KUN15,2#..4FC,5F (L),NO.1	01/2007 - 10/2008	2
90541-15024	KUN15,2#..4FC,5F NO.2	07/2005 - 10/2008	2
90541-15019	KUN15,2# NO.1	07/2005 - 01/2007	2
53301B - CUSHION, HOOD BUMPER
90541-15019	KUN15,2#..4FC,5F (J),NO.1	01/2007 - 10/2008	2
90541-T0006	KUN15,2#..4FC,5F (L),NO.1	01/2007 - 10/2008	2
90541-15024	KUN15,2#..4FC,5F NO.2	07/2005 - 10/2008	2
90541-15019	KUN15,2# NO.1	07/2005 - 01/2007	2
53341B - INSULATOR, HOOD
53341-0K030	KUN15,2#..DCB,SCB	10/2006 - 10/2008	1
53341-0K040	KUN15,25..DCB,SCB	07/2005 - 10/2006	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014	KUN15..XTR..DCR;KUN15,25..DCB,SCB	07/2005 - 10/2006	14
90467-T0014	KUN25..DCB,SCB	10/2006 - 10/2008	15
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0K010	KUN15,2#..4FC,5F	07/2005 - 10/2008	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-T0013	KUN15,2#..4FC,5F	07/2005 - 10/2008	6
53384A - BUMPER, FENDER TO HOOD
53384-0K010	KUN15,2#..4FC,5F	07/2005 - 10/2008	2
53801 - FENDER SUB-ASSY, FRONT RH
53811-0K010	KUN15;KUN25..DLX	07/2005 - 10/2008	1
53811-0K020	KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)	07/2005 - 10/2008	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-0K010	KUN15;KUN25..DLX	07/2005 - 10/2008	1
53812-0K020	KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)	07/2005 - 10/2008	1
76181 - BULGE, HOOD
76180-0K906	KUN15,2#..DCB,SCB	10/2006 - 10/2008	1
76186 - SEAL, HOOD AIR INTAKE
76186-0K010	KUN25..DCB,SCB	10/2006 - 10/2008	1
Common parts
90109-T0047
90119-T0004
90178-T0029
90467-07175
90950-06124
90950-T6002

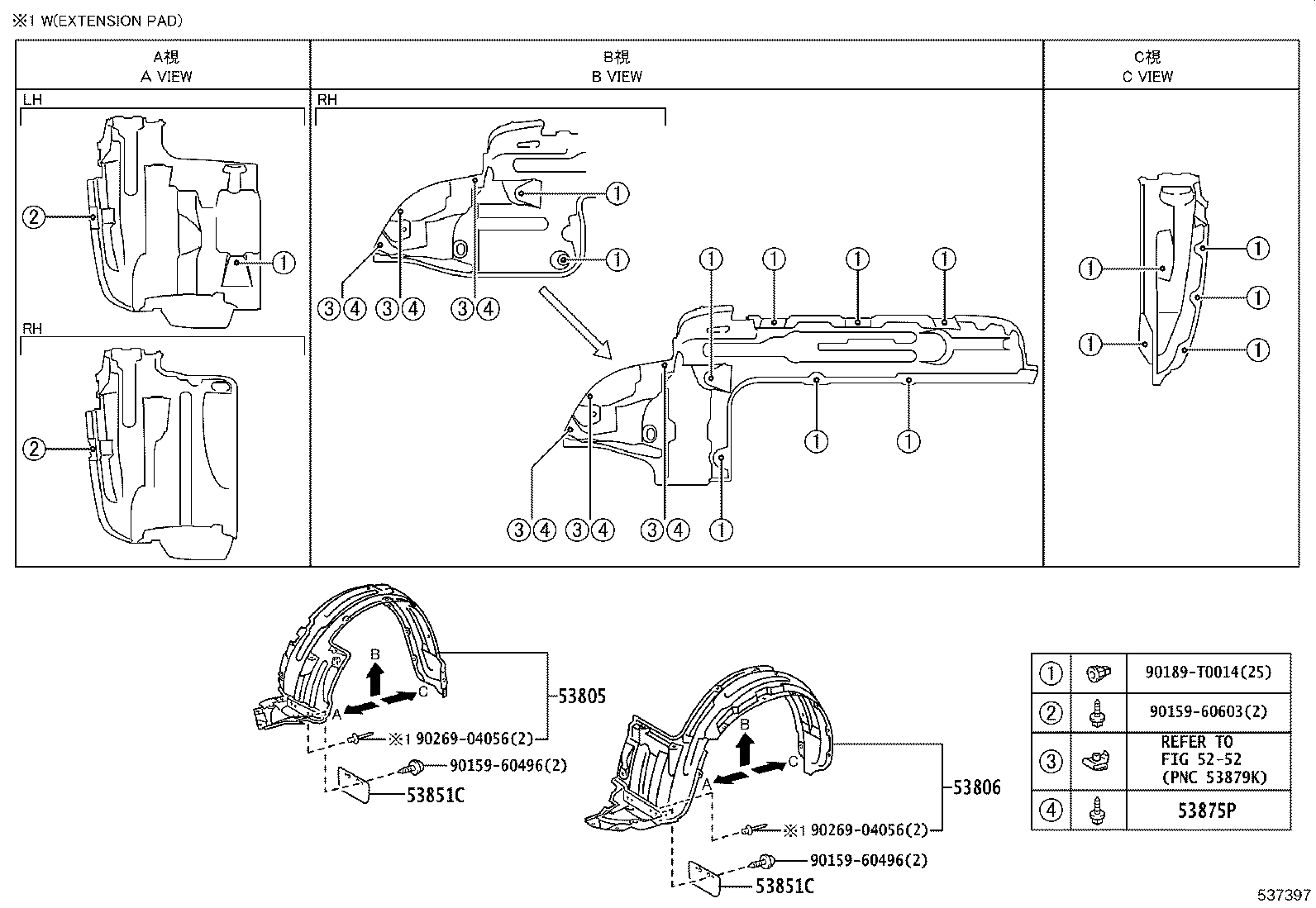

ILLUST NO. 2 OF 2(0608- )

Click highlighted areas on diagram

FENDER LINER

Part #	Description	Period	Qty
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-0K090	KUN15,2#	08/2006 - 09/2007	1
53805-0K091	KUN2#..4FC,5F;KUN15..THDCB,THSCB,XTR	10/2007 - 10/2008	1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-0K091	KUN2#..4FC,5F;KUN15..THDCB,THSCB,XTR	10/2007 - 10/2008	1
53806-0K090	KUN15,2#	08/2006 - 09/2007	1
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-0K070	KUN15..SR;KUN15..DCR;KUN2#..4FC,5F;KUN15..THDCB,THSCB,XTR	08/2006 - 10/2008	2
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-0K070	KUN15..SR;KUN15..DCR;KUN2#..4FC,5F;KUN15..THDCB,THSCB,XTR	08/2006 - 10/2008	2
53875P - SCREW, NO.1
90159-60217	KUN15,2#..4FC,5F	08/2007 - 10/2008	6
Common parts
90159-60496
90159-60603
90189-T0014
90269-04056
Linked diagrams
5252
