KUN25R-TRMDHW (2005)
Toyota Hilux

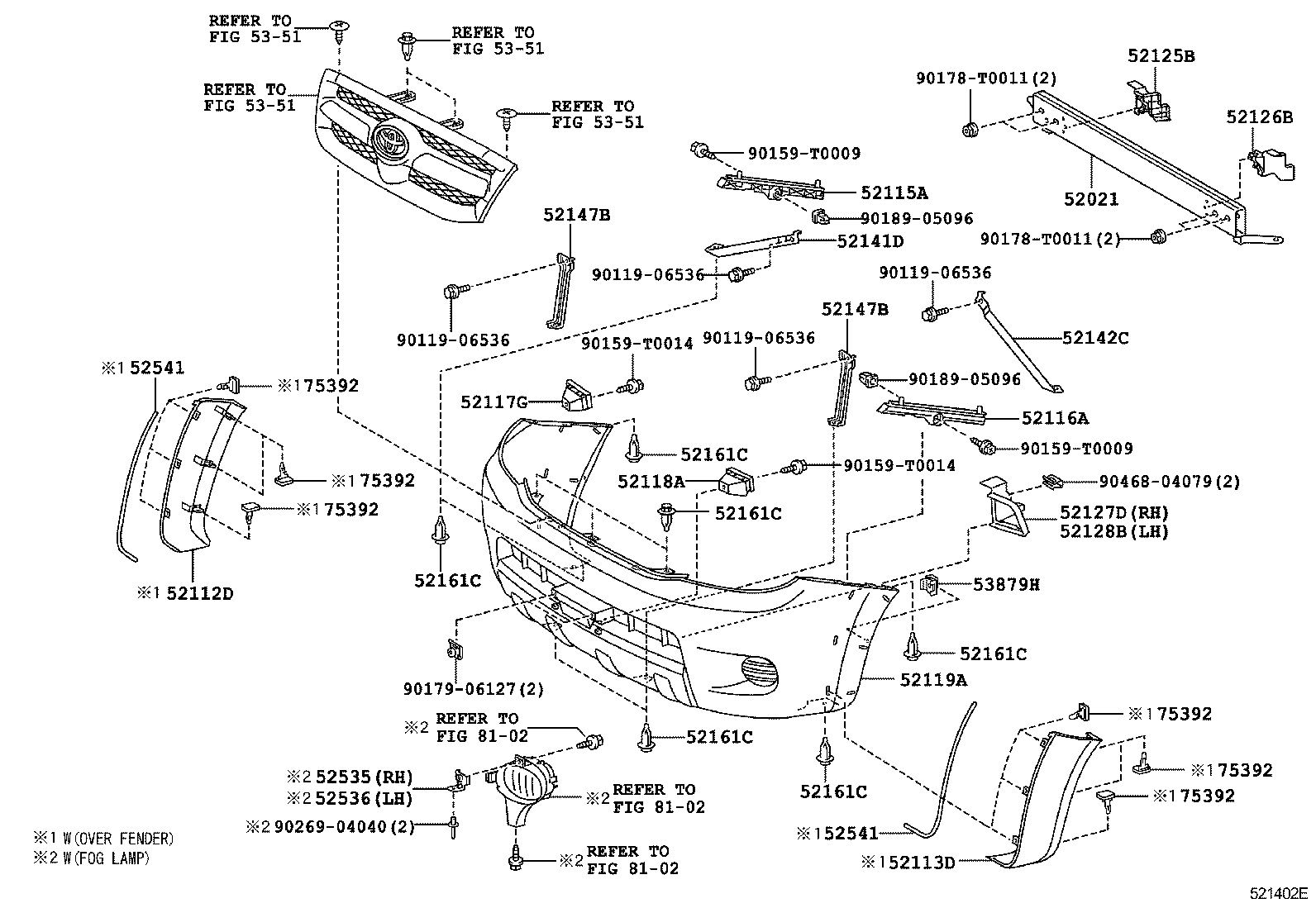

(0507-0608)XTR ; (0507-0610)DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0K020 |
KUN25 |
1 | ||
| 52021-0K022 |
KUN2#..4FC,5F |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-0K011 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52112-0K010 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-0K010 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0K050 |
KUN15,25..DCB,SCB |
1 | ||
| 52115-0K051 |
KUN15,2#..DCB,SCB |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0K050 |
KUN15,25..DCB,SCB |
1 | ||
| 52116-0K051 |
KUN15,2#..DCB,SCB |
1 | ||
| 52117G - INSERT, FRONT BUMPER EXTENSION, NO.2 RH | ||||
| 52117-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52118A - INSERT, FRONT BUMPER EXTENSION, NO.2 LH | ||||
| 52118-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0K010 |
KUN15,25..(SCB,XTR)..DLX NO PAINT REQ. |
1 | ||
| 52119-0K020 |
KUN25..(SCB,XTR)..DLX NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 52119-0K011 |
KUN15..DCB,SCB,THSCB;KUN25..(DCB,SCB,THSCB)..DLX NO PAINT REQ. |
1 | ||
| 52119-0K021 |
KUN25..(DCB,SCB,THSCB)..DLX NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-0K010 |
KUN2#..4FC,5F |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-0K010 |
KUN2#..4FC,5F |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-0K010 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-0K010 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-0K010C0 |
KUN25..SCB,THSCB TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,040 ,1C0 ,209 ,3E5 ,4P9 ,6S3 ,8P1 ,8P4 |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-0K010C0 |
KUN25..SCB,THSCB TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,040 ,1C0 ,209 ,3E5 ,4P9 ,6S3 ,8P1 ,8P4 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 90159-T0009 | ||||
| 90159-T0014 | ||||
| 90178-T0011 | ||||
| 90179-06127 | ||||
| 90189-05096 | ||||
| 90269-04040 | ||||
| 90468-04079 | ||||
| Linked diagrams | ||||
| 5351 | ||||
| 8102 | ||||

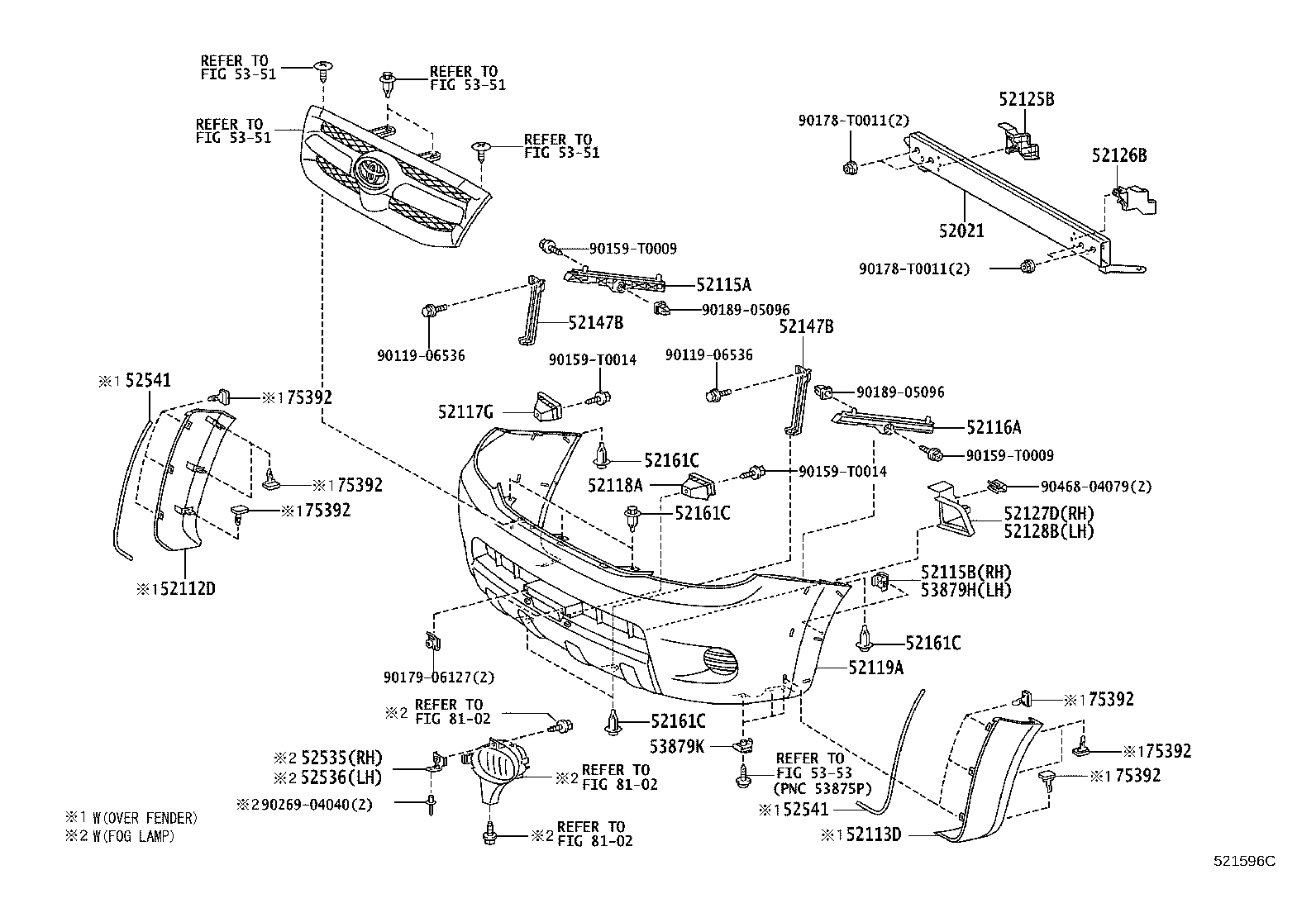

(0608-0808)THDCB,THSCB,XTR ; (0610-0810)DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0K020 |
KUN25 |
1 | ||
| 52021-0K022 |
KUN2#..4FC,5F |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-0K011 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52112-0K010 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-0K010 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0K050 |
KUN15,25..DCB,SCB |
1 | ||
| 52115-0K051 |
KUN15,2#..DCB,SCB |
1 | ||
| 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 | ||||
| 52115-0P010 |
KUN25..DCB,SCB |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0K050 |
KUN15,25..DCB,SCB |
1 | ||
| 52116-0K051 |
KUN15,2#..DCB,SCB |
1 | ||
| 52117G - INSERT, FRONT BUMPER EXTENSION, NO.2 RH | ||||
| 52117-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52118A - INSERT, FRONT BUMPER EXTENSION, NO.2 LH | ||||
| 52118-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0K010 |
KUN15,25..(SCB,XTR)..DLX NO PAINT REQ. |
1 | ||
| 52119-0K020 |
KUN25..(SCB,XTR)..DLX NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 52119-0K011 |
KUN15..DCB,SCB,THSCB;KUN25..(DCB,SCB,THSCB)..DLX NO PAINT REQ. |
1 | ||
| 52119-0K021 |
KUN25..(DCB,SCB,THSCB)..DLX NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-0K010 |
KUN2#..4FC,5F |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-0K010 |
KUN2#..4FC,5F |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-0K010C0 |
KUN25..SCB,THSCB TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,040 ,1C0 ,209 ,3E5 ,4P9 ,6S3 ,8P1 ,8P4 |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-0K010C0 |
KUN25..SCB,THSCB TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,040 ,1C0 ,209 ,3E5 ,4P9 ,6S3 ,8P1 ,8P4 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 53879K - RETAINER, FRONT FENDER LINER | ||||
| 53879-0K020 |
KUN25..DCB,SCB |
6 | ||
| 90467-05138 |
KUN15,2#..DCB,SCB |
6 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 90159-T0009 | ||||
| 90159-T0014 | ||||
| 90178-T0011 | ||||
| 90179-06127 | ||||
| 90189-05096 | ||||
| 90269-04040 | ||||
| 90468-04079 | ||||
| Linked diagrams | ||||
| 5351 | ||||
| 5353 | ||||
| 8102 | ||||
(0808- )THDCB,THSCB,XTR ; (0810- )DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0K020 |
KUN25 |
1 | ||
| 52021-0K022 |
KUN2#..4FC,5F |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-0K011 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52112-0K010 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-0K010 |
KUN25..SCB NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0K050 |
KUN15,25..DCB,SCB |
1 | ||
| 52115-0K051 |
KUN15,2#..DCB,SCB |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0K050 |
KUN15,25..DCB,SCB |
1 | ||
| 52116-0K051 |
KUN15,2#..DCB,SCB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0K010 |
KUN15,25..(SCB,XTR)..DLX NO PAINT REQ. |
1 | ||
| 52119-0K020 |
KUN25..(SCB,XTR)..DLX NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 52119-0K011 |
KUN15..DCB,SCB,THSCB;KUN25..(DCB,SCB,THSCB)..DLX NO PAINT REQ. |
1 | ||
| 52119-0K021 |
KUN25..(DCB,SCB,THSCB)..DLX NO PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-0K010 |
KUN2#..4FC,5F |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-0K010 |
KUN2#..4FC,5F |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0K010 |
KUN15,2#..4FC,5F |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
KUN15..XTR..DCR;KUN15,25..DCB,SCB |
9 | ||
| 52161-0K040 |
KUN25..DCB,SCB |
7 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-0K010C0 |
KUN25..SCB,THSCB TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,040 ,1C0 ,209 ,3E5 ,4P9 ,6S3 ,8P1 ,8P4 |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-0K010C0 |
KUN25..SCB,THSCB TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,040 ,1C0 ,209 ,3E5 ,4P9 ,6S3 ,8P1 ,8P4 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
KUN25..DLX TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER) |
12 | ||
| Common parts | ||||
| 90109-06283 | ||||
| 90119-06536 | ||||
| 90119-T0152 | ||||
| 90159-T0009 | ||||
| 90178-T0011 | ||||
| 90179-06127 | ||||
| 90189-05096 | ||||
| Linked diagrams | ||||
| 5351 | ||||
| 8102 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
