KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )KUN25..SCB,THSCB

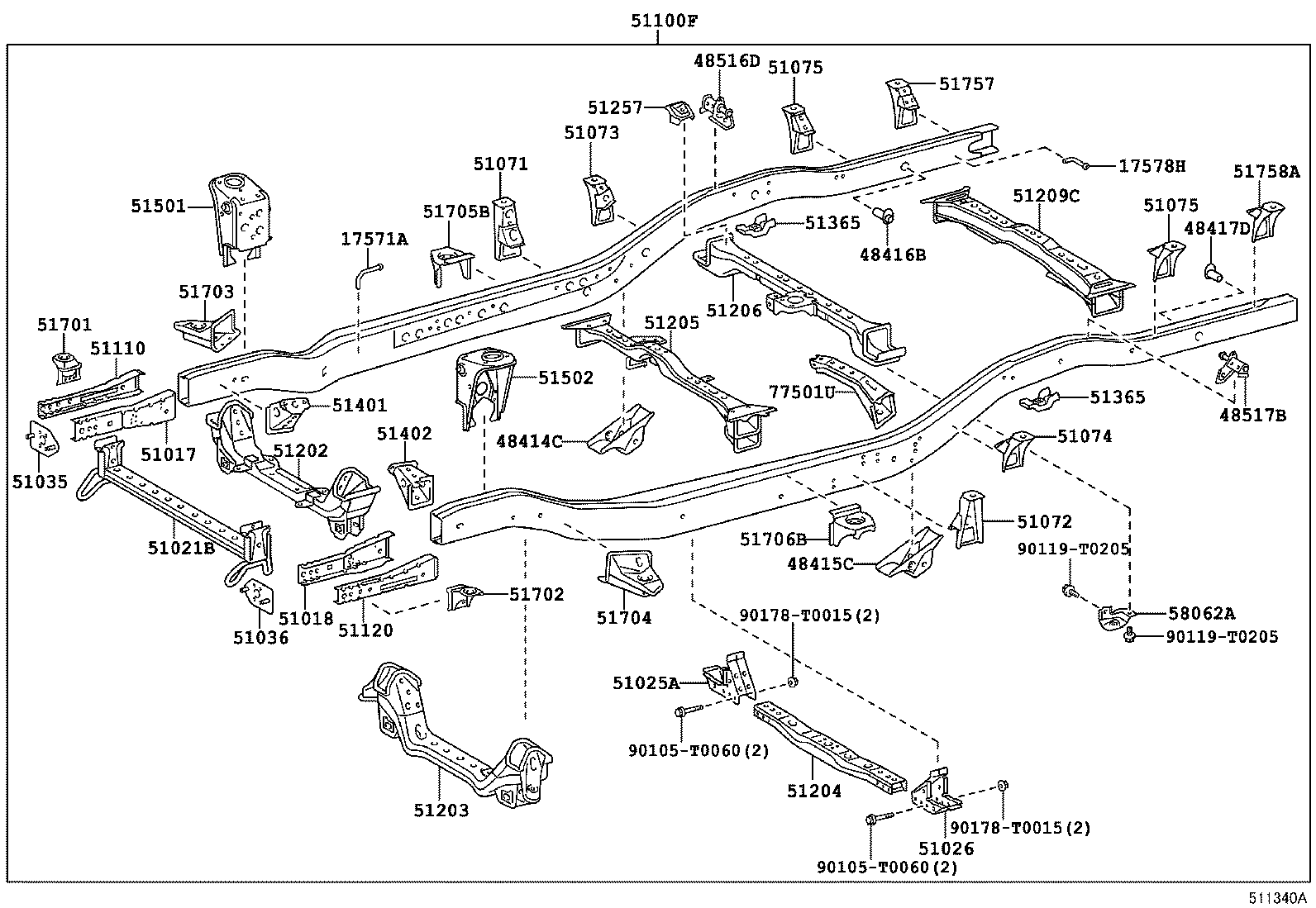

Click highlighted areas on diagram

diagram 17571A 17578H 48414C 48415C 48416B 48417D 48516D 48517B 51017 51018 51021B 51025A 51026 51035 51036 51071 51072 51073 51074 51075 51075 51100F 51110 51120 51202 51203 51204 51205 51206 51209C 51257 51365 51365 51401 51402 51501 51502 51701 51702 51703 51704 51705B 51706B 51757 51758A 58062A 77501U 90105T0060 90105T0060 90119T0205 90119T0205 90178T0015 90178T0015
Part # Description Qty Price
17571A - BRACKET, EXHAUST PIPE SUPPORT, NO.9
17571-0L010

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 1
17578H - BRACKET, EXHAUST PIPE SUPPORT, NO.10
17505-0L010

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 1
48414C - BRACKET, SPRING, NO.3 RH
48404-0K020

KUN2#..4FC,5F

 1
48415C - BRACKET, SPRING, NO.3 LH
48407-0K020

KUN2#..4FC,5F

 1
48416B - BRACKET, SPRING, NO.4 RH
48405-0K010

KUN15,2#..4FC,5F

 1
48417D - BRACKET, SPRING, NO.4 LH
48405-0K010

KUN15,2#..4FC,5F

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-0K010

KUN15,2#..4FC,5F

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-0K010

KUN15,2#..4FC,5F

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-0K020

KUN2#..4FC,5F

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-0K020

KUN2#..4FC,5F

 1
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-0K020

KUN2#..4FC,5F

 1
51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH
51025-0K010

KUN15,2#..4FC,5F

 1
51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH
51026-0K010

KUN15,2#..4FC,5F

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-0K010

KUN15,2#..4FC,5F

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-0K010

KUN15,2#..4FC,5F

 1
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-0K020

KUN15,25..SCB,THSCB

 1
51071-0K020

KUN15,25..SCB,THSCB

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51071-0K020

KUN15,25..SCB,THSCB

 1
51071-0K020

KUN15,25..SCB,THSCB

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-0K010

KUN15,25..SCB,THSCB,XTR

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-0K010

KUN15,25..SCB,THSCB,XTR

 1
51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH
51075-0K010

KUN15,2#..4FC,5F

 2
51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH
51075-0K010

KUN15,2#..4FC,5F

 2
51100F - FRAME SUB-ASSY
51001-0K320

KUN25..SCB

 1
51001-0K321

KUN25..SCB,THSCB

 1
51001-0K322

KUN25..SCB,THSCB

 1
51110 - EXTENSION ASSY, SIDE RAIL, RH
51110-0K020

KUN2#..4FC,5F

 1
51120 - EXTENSION ASSY, SIDE RAIL, LH
51120-0K020

KUN2#..4FC,5F

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-0K030

KUN2#..4FC,5F

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-0K030

KUN2#..4FC,5F

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-0K020

KUN2#

 1
51203-0K021

KUN2#..4FC,5F

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-0K041

KUN25..DCB,SCB

 1
51204-0K040

KUN25..DCB,SCB

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-0K030

KUN15,2#..4FC,5F

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-0K030

KUN15,2#..4FC,5F

 1
51257 - REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH
51257-0K010

KUN15,2#..4FC,5F

 1
51365 - STOPPER, REAR BUMPER
57081-0K020

KUN2#..4FC,5F

 2
51365 - STOPPER, REAR BUMPER
57081-0K020

KUN2#..4FC,5F

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-0K020

KUN15,2#..4FC,5F

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-0K020

KUN15,2#..4FC,5F

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-0K020

KUN2#..4FC,5F

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-0K020

KUN2#..4FC,5F

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-0K020

KUN15..DCR;KUN2#..4FC,5F;KUN15..(DCB,THDCB)..HDCR

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-0K020

KUN15..DCR;KUN2#..4FC,5F;KUN15..(DCB,THDCB)..HDCR

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-0K010

KUN15,2#..4FC,5F

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-0K010

KUN15,2#..4FC,5F

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51731-0K010

KUN15,25..SCB,THSCB

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51731-0K010

KUN15,25..SCB,THSCB

 1
51757 - BRACKET, BODY SUPPORT, NO.4 RH
51077-0K010

KUN15,2#

 1
51077-0K011

KUN15,2#..4FC,5F

 1
51758A - BRACKET, BODY SUPPORT, NO.4 LH
51077-0K011

KUN15,2#..4FC,5F

 1
51077-0K010

KUN15,2#

 1
58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58062-0K010

KUN15,2#..4FC,5F

 1
77501U - BRACKET SUB-ASSY, FUEL TANK
77501-0K020

KUN15,2#..4FC,5F

 1
Common parts
90105-T0060
90119-T0205
90178-T0015
