KUN25R-TRMDHW (2005)
Toyota Hilux

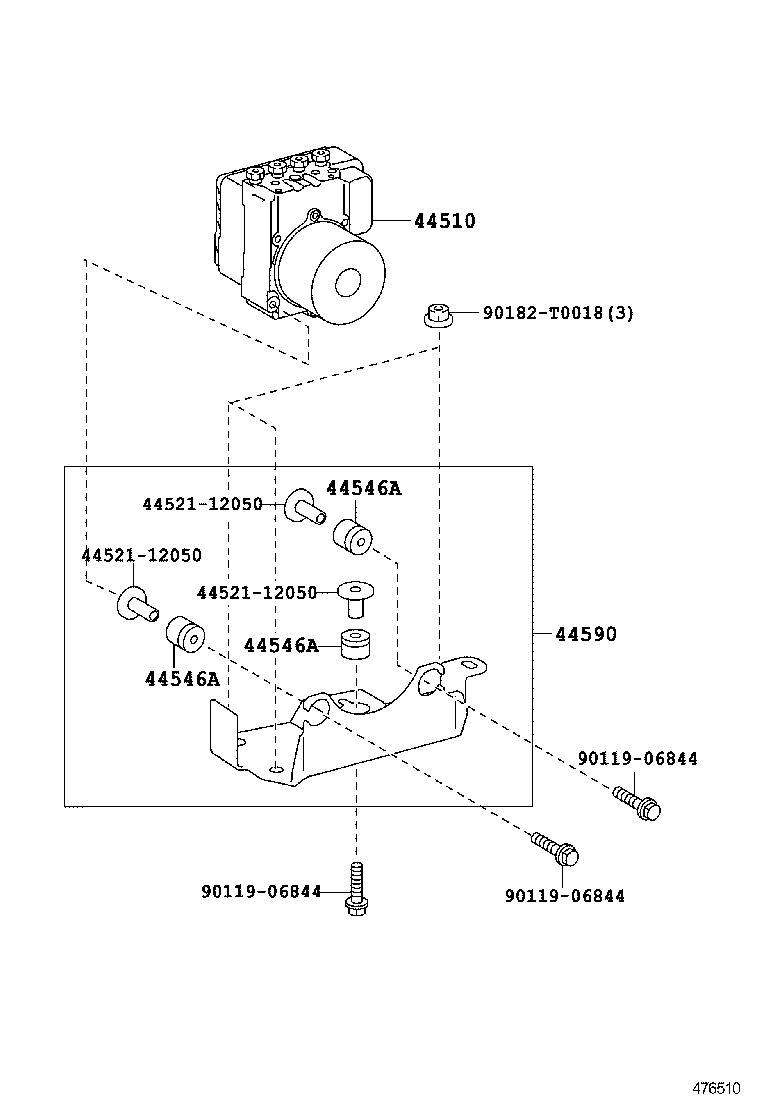

ILLUST NO. 2 OF 3(0507- )RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-71030 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 44050-71030 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 44545-12010 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 44545-12010 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
3 | ||
| 44546-60060 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
3 | ||
| 44546-60060 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
3 | ||
| 44546-60060 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44591-0K020 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 44591-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| Common parts | ||||
| 90178-T0066 | ||||
| 90182-T0018 | ||||
ILLUST NO. 3 OF 3(0507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-04010 |
KUN15..SR;KUN15..DCR;KUN25..LHD..XTR;KUN25..DCB,SCB,THDCB,THSCB |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
KUN15,2#..4FC,5F |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-0K021 |
KUN2#..4FC,5F |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
KUN15,2#..4FC,5F |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90016-AX201 |
KUN15,2#..4FC,5F |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90016-AX201 |
KUN15,2#..4FC,5F |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90080-46308 |
KUN15,2#..4FC,5F |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90016-AH101 |
KUN15,2#..4FC,5F |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90016-AH101 |
KUN15,2#..4FC,5F |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-04010 |
KUN15,2#..4FC,5F |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-04010 |
KUN15,2#..4FC,5F |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-04010 |
KUN15,2#..4FC,5F |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-04010 |
KUN15,2#..4FC,5F |
1 | ||
| Common parts | ||||
| 90016-AC102 | ||||
| 90016-AC103 | ||||
| 90016-AX201 | ||||
| 90080-10258 | ||||
| 90080-56074 | ||||
| 90119-08B11 | ||||
| 90119-T0126 | ||||
| 90119-T0200 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||

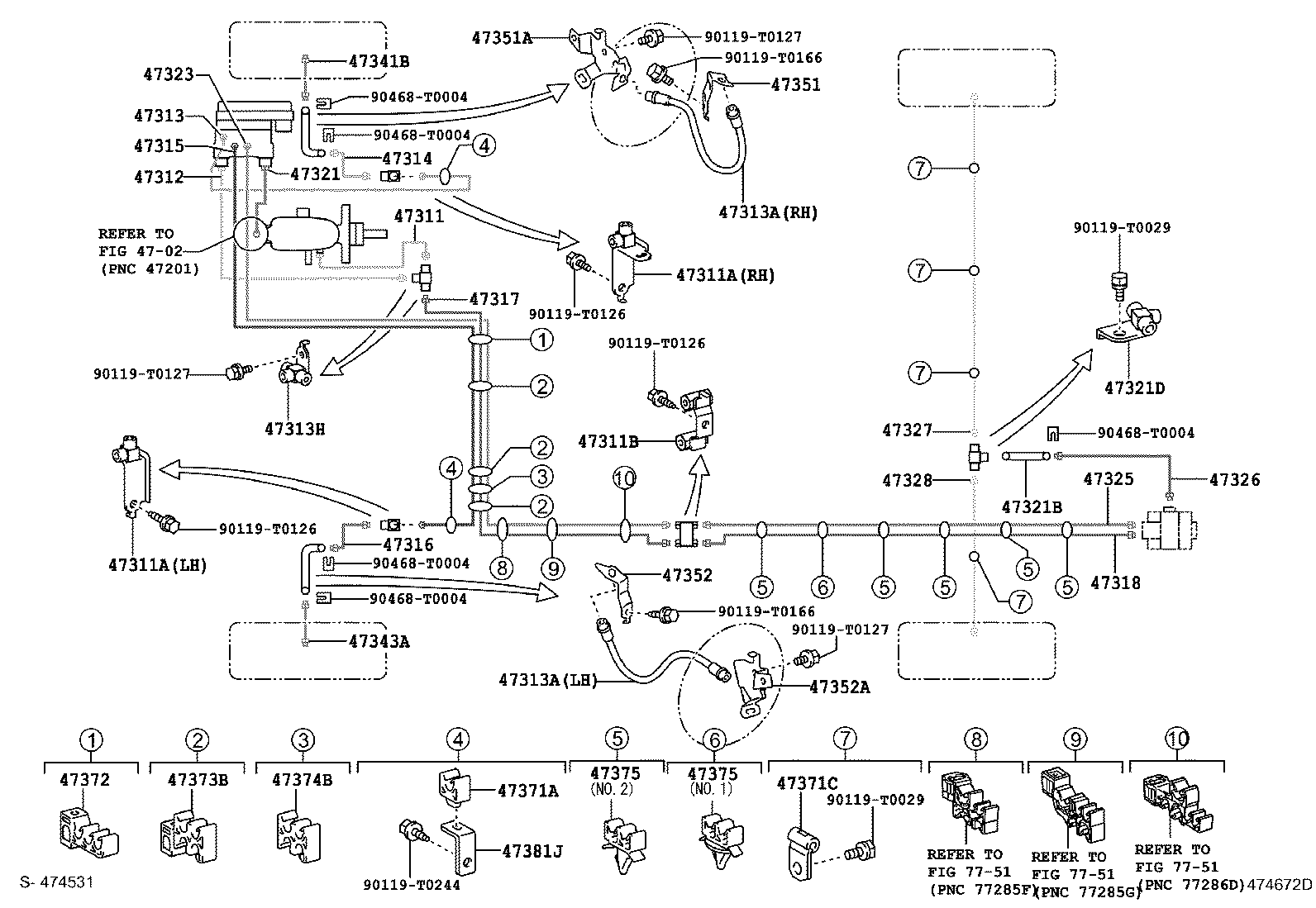

ILLUST NO. 1 OF 3(0507-0810)KUN25..RHD..DCB,SCB..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K020 |
KUN15,2#..RHD..(DCB,SCB) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN15,2#..4FC,5F RH |
1 | ||
| 90412-10252 |
KUN15,2#..4FC,5F LH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN15,2#..4FC,5F RH |
1 | ||
| 90412-10252 |
KUN15,2#..4FC,5F LH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
KUN15,2#..4FC,5F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47313-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN2#..4FC,5F |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN2#..4FC,5F |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10309 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 90414-10055 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 90413-10309 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47315-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47315-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0K050 |
KUN15,2#..RHD..(DCB,SCB) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0K020 |
KUN15,2#..4FC,5F |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2015 |
KUN2#..4FC,5F |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10308 |
KUN2#..4FC,5F |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47323-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47323-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K020 |
KUN15,2#..4FC,5F |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-0K021 |
KUN2#..4FC,5F |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47353-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47354-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
KUN15,2#..RHD..(4FC,5F) |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
KUN15,2#..4FC,5F |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1014 |
KUN15,2#..RHD..(4FC,5F) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1008 |
KUN15,2#..RHD..(4FC,5F) |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1009 |
KUN15,2#..RHD..(4FC,5F) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN15,2#..4FC,5F NO.2 |
5 | ||
| 90469-T0007 |
KUN15,2#..4FC,5F NO.1 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN15,2#..4FC,5F NO.2 |
5 | ||
| 90469-T0007 |
KUN15,2#..4FC,5F NO.1 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
KUN15,2#..RHD..(4FC,5F) |
2 | ||
| Common parts | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0244 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

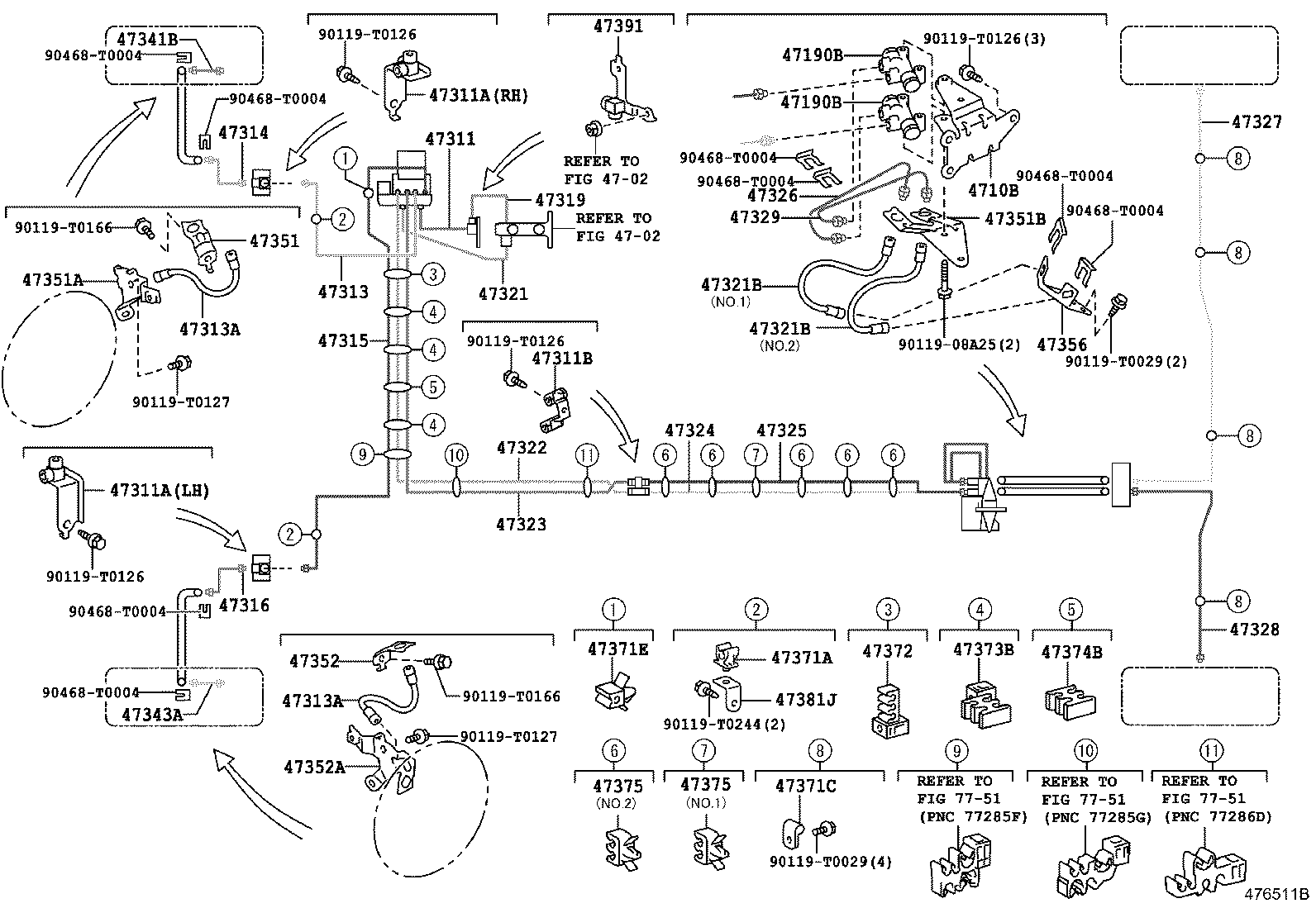

ILLUST NO. 1 OF 3(0507- )KUN2#..RHD..DCB,SCB
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K020 |
KUN15,2#..RHD..(DCB,SCB) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN15,2#..4FC,5F RH |
1 | ||
| 90412-10252 |
KUN15,2#..4FC,5F LH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN15,2#..4FC,5F RH |
1 | ||
| 90412-10252 |
KUN15,2#..4FC,5F LH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
KUN15,2#..4FC,5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47312-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47313-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN2#..4FC,5F |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN2#..4FC,5F |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10309 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 90414-10055 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 90413-10309 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47315-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47315-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0K050 |
KUN15,2#..RHD..(DCB,SCB) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0K020 |
KUN15,2#..4FC,5F |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47321-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2015 |
KUN2#..4FC,5F |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10308 |
KUN2#..4FC,5F |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47323-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47323-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K020 |
KUN15,2#..4FC,5F |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-0K021 |
KUN2#..4FC,5F |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47353-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47354-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
KUN15,2#..RHD..(4FC,5F) |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
KUN15,2#..4FC,5F |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1014 |
KUN15,2#..RHD..(4FC,5F) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1008 |
KUN15,2#..RHD..(4FC,5F) |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1009 |
KUN15,2#..RHD..(4FC,5F) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN15,2#..4FC,5F NO.2 |
5 | ||
| 90469-T0007 |
KUN15,2#..4FC,5F NO.1 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN15,2#..4FC,5F NO.2 |
5 | ||
| 90469-T0007 |
KUN15,2#..4FC,5F NO.1 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
KUN15,2#..RHD..(4FC,5F) |
2 | ||
| Common parts | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0244 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 2 OF 3(0808- )KUN26..RHD..THDCB ; (0810- )KUN26..RHD..DCB ; (1008- )KUN25..RHD..
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-71030 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 44050-71030 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
3 | ||
| 44546-60060 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
3 | ||
| 44546-60060 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
3 | ||
| 44546-60060 |
KUN15..DCB,SCB;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44591-0K020 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 44591-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90182-T0018 | ||||
ILLUST NO. 1 OF 3(0808- )KUN26..RHD..THDCB ; (0810- )KUN26..RHD..DCB ; (1008- )KUN25..RHD..
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K020 |
KUN15,2#..RHD..(DCB,SCB) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K020 |
KUN15,2#..RHD..(DCB,SCB) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN15,2#..4FC,5F RH |
1 | ||
| 90412-10252 |
KUN15,2#..4FC,5F LH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN15,2#..4FC,5F RH |
1 | ||
| 90412-10252 |
KUN15,2#..4FC,5F LH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
KUN15,2#..4FC,5F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47313-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47313-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN2#..4FC,5F |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN2#..4FC,5F |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47315-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47315-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47321-0K020 |
KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2015 |
KUN2#..4FC,5F |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2015 |
KUN2#..4FC,5F |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K010 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47323-0K010 |
KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 47323-0K030 |
KUN15,25..RHD..(DCB,SCB)..DLX |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K020 |
KUN15,2#..4FC,5F |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-0K021 |
KUN2#..4FC,5F |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-0K010 |
KUN2#..4FC,5F |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47353-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-0K030 |
KUN2#..4FC,5F |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47354-0K020 |
KUN2#..4FC,5F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
KUN15,2#..RHD..(4FC,5F) |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
KUN15,2#..4FC,5F |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-T1014 |
KUN15,2#..RHD..(4FC,5F) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1008 |
KUN15,2#..RHD..(4FC,5F) |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-T1009 |
KUN15,2#..RHD..(4FC,5F) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN15,2#..4FC,5F NO.2 |
5 | ||
| 90469-T0007 |
KUN15,2#..4FC,5F NO.1 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN15,2#..4FC,5F NO.2 |
5 | ||
| 90469-T0007 |
KUN15,2#..4FC,5F NO.1 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
KUN15,2#..RHD..(4FC,5F) |
2 | ||
| Common parts | ||||
| 90119-08A25 | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0244 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
