KUN25R-TRMDHW (2005)
Toyota Hilux
Production
Jul 2005
-
Oct 2008
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507-0608)2KDFTV..XTR ; (0507-0610)2KDFTV..DCB,SCB

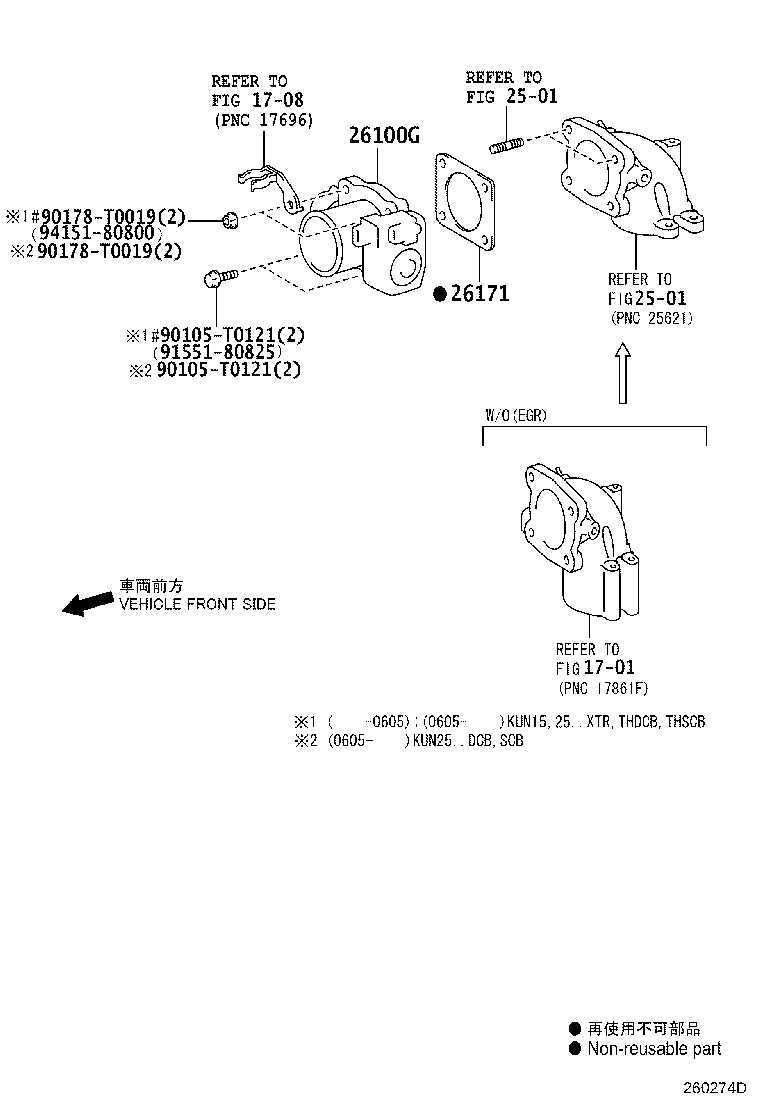

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 26100G - BODY ASSY, DIESEL THROTTLE | ||||
| 26100-30070 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 26100-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 26100-30070 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-30020 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 26171-30020 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 26171-0L020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| Common parts | ||||
| 90105-T0121 | ||||
| 90178-T0019 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2501 | ||||
