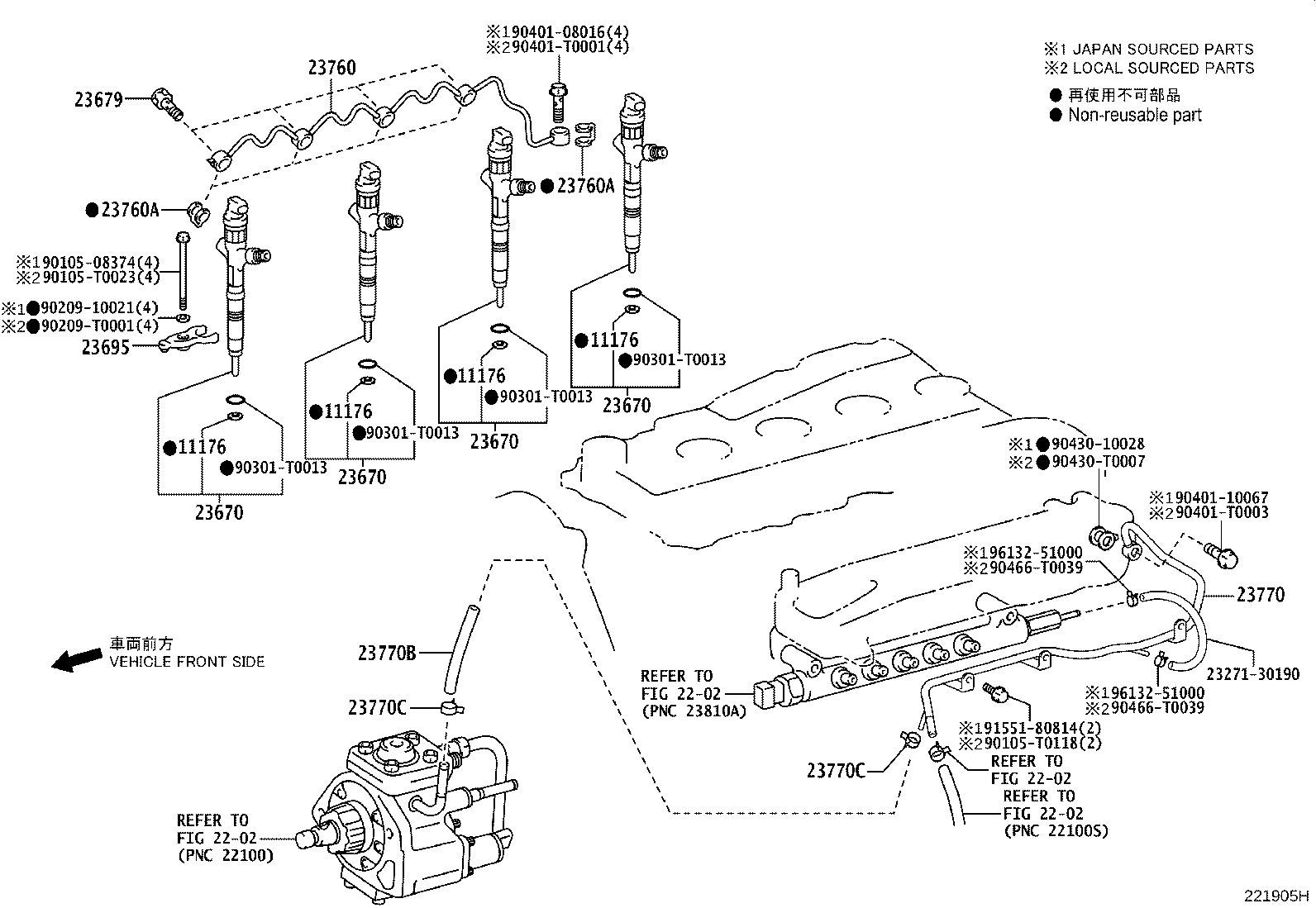

KUN25R-TRMDHW (2005)
Toyota Hilux
(0507-0608)2KDFTV..XTR ; (0507-0610)2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 11176-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 11176-30010 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 11176-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 11176-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 11176-30010 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 11176-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 11176-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 11176-30010 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 11176-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 11176-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 11176-30010 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 11176-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 11176-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
4 | ||
| 23670-39145 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 23670-39285 |
2KDFTV..KUN15,25 |
4 | ||
| 23670-39146 |
2KDFTV..KUN15,25 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
4 | ||
| 23670-39145 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 23670-39285 |
2KDFTV..KUN15,25 |
4 | ||
| 23670-39146 |
2KDFTV..KUN15,25 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
4 | ||
| 23670-39145 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 23670-39285 |
2KDFTV..KUN15,25 |
4 | ||
| 23670-39146 |
2KDFTV..KUN15,25 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
4 | ||
| 23670-39145 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 23670-39285 |
2KDFTV..KUN15,25 |
4 | ||
| 23670-39146 |
2KDFTV..KUN15,25 |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 23679-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 23679-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30010 |
2KDFTV..KUN25..DCB,SCB |
4 | ||
| 23695-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 23695-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23760-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23760-30020 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
1 | ||
| 23760-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
2KDFTV..KUN25..DCB,SCB |
5 | ||
| 90430-T0008 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
5 | ||
| 90904-30013 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
5 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
2KDFTV..KUN25..DCB,SCB |
5 | ||
| 90430-T0008 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
5 | ||
| 90904-30013 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23770-30070 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 23770-0L020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 23273-30180 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F L=200 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 90466-T0043 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 90466-T0043 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
2 | ||
| Common parts | ||||
| 23271-30190 | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-T0013 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 2202 | ||||
