KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )2KDFTV..5F..HDCR ; (0507- )2KDFTV..KUN15..XTR..DCR

Click highlighted areas on diagram

12V 2.0KW(DENSO)

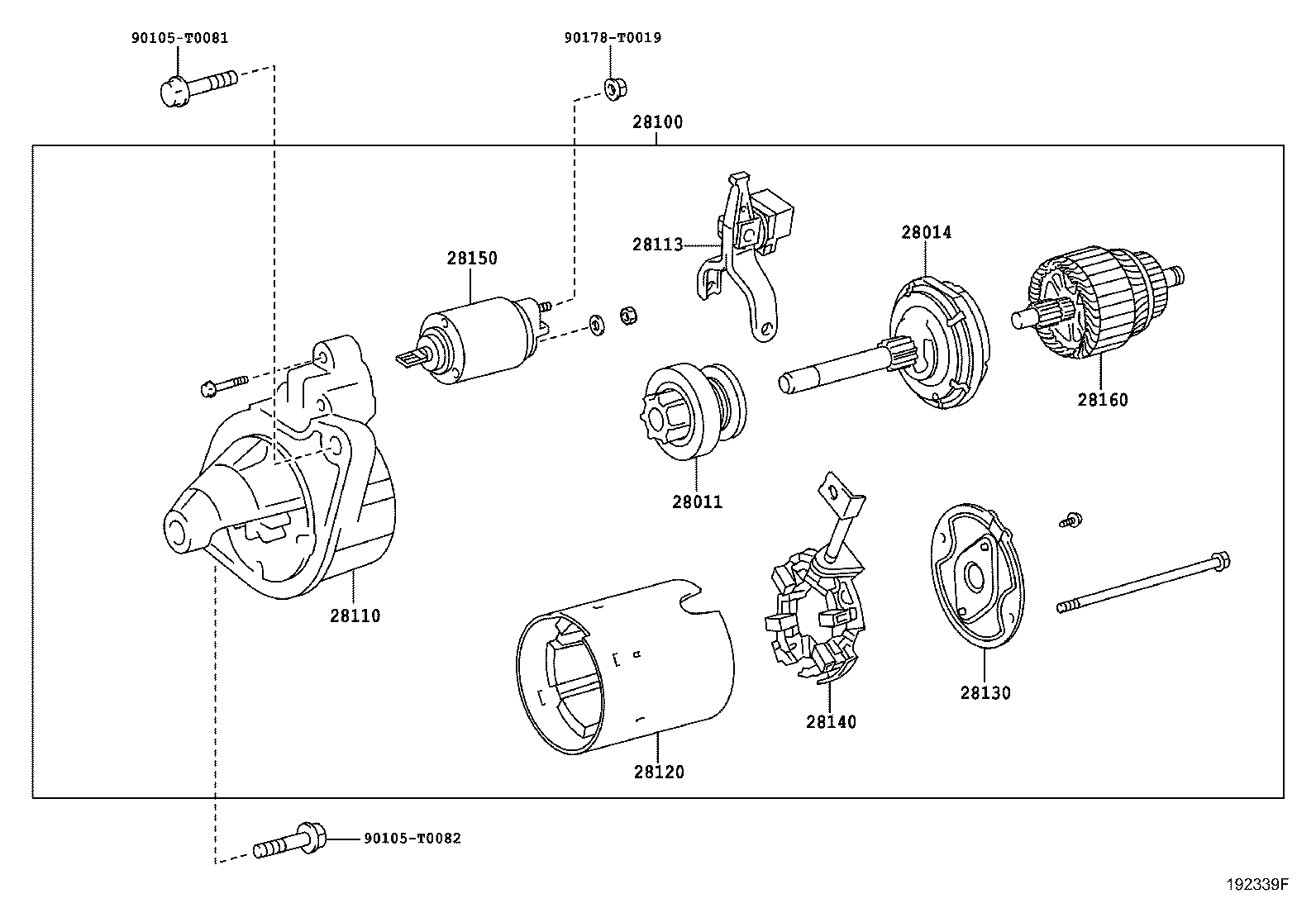

diagram 28011 28100 28120 28140 28150 28160 90105T0082 90178T0019 90178T0022
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28011-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28011-30050

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

12V 2.2KW

 1
28100-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

12V 2.2KW

 1
28100-0L050

2KDFTV..KUN15,25..5F

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-67020

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28120-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28140-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28140-0L070

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150-0L071

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150-0L050

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-54140

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28160-0L070

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28160-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
Common parts
90105-T0082
90178-T0019
90178-T0022

(0507- )1KDFTV..DCB..5F ; (0507- )2KDFTV..DCB,SCB..5F..HDCR

Click highlighted areas on diagram

12V 2.2KW(BOSCH)

diagram 28011 28014 28100 28110 28113 28120 28130 28140 28150 28160 90105T0081 90105T0082 90178T0019
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28011-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28011-30050

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

12V 2.2KW

 1
28100-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

12V 2.2KW

 1
28100-0L050

2KDFTV..KUN15,25..5F

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-67020

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28120-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28140-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28140-0L070

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150-0L071

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150-0L050

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-54140

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28160-0L070

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28160-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
Common parts
90105-T0081
90105-T0082
90178-T0019

(0507- )2KDFTV ; (0507- )1KDFTV..DCB..5F,5FC

Click highlighted areas on diagram

12V 2.7KW

diagram 28011 28100 28120 28140 28150 28160 90105T0081 90105T0082 90178T0022 90178T0022 90182T0003
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28011-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28011-30050

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

12V 2.2KW

 1
28100-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

12V 2.2KW

 1
28100-0L050

2KDFTV..KUN15,25..5F

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-67020

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28120-0L081

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28140-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28140-0L070

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150-0L071

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28150-0L050

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-54140

2KDFTV..KUN15,25..5F

COLD AREA SPEC

 1
28160-0L070

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
28160-0L080

1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F

 1
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003
