Toyota Hilux KUN25 ALTERNATOR - JDM Part Detective

KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0507-1008)2KDFTV..KUN25..LHD..XTR ; (0507- )2KDFTV..KUN25..LHD..THDCB,THSCB ; (

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0L020	2KDFTV..KUN25..DCB,SCB 12V 80A	10/2006 - 12/2006	1
27060-0L020	2KDFTV..KUN25..DCB,SCB 12V 80A	10/2006 - 12/2006	1
27060-0L021	1KDFTV,2KDFTV..KUN15,2#..4FC,5F 12V 80A	01/2007 - 10/2008	1
27060-0L021	1KDFTV,2KDFTV..KUN15,2#..4FC,5F 12V 80A	01/2007 - 10/2008	1
27060-0L050	2KDFTV..KUN15,25..DCB,SCB 12V 70A	07/2005 - 10/2006	1
27060-0L050	2KDFTV..KUN15,25..DCB,SCB 12V 70A	07/2005 - 10/2006	1
27020E - BOLT(FOR ALTERNATOR)
90105-10092	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	1
90105-10092	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0M040	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	04/2007 - 10/2008	1
27330-0M040	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	04/2007 - 10/2008	1
27330-0L050	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27330-0L050	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0L030	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	01/2007 - 10/2008	1
27415-0L030	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	01/2007 - 10/2008	1
27415-0L020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27415-0L020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27415-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 12/2006	1
27415-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 12/2006	1
27416 - CAP, ALTERNATOR PULLEY
27416-0L020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27416-0L020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27416-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 01/2007	1
27416-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 01/2007	1
27416-0L030	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	01/2007 - 10/2008	1
27416-0L030	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	01/2007 - 10/2008	1
Common parts
90068-00022
90068-00023
90068-04033
90068-05010
90178-T0018
90178-T0071

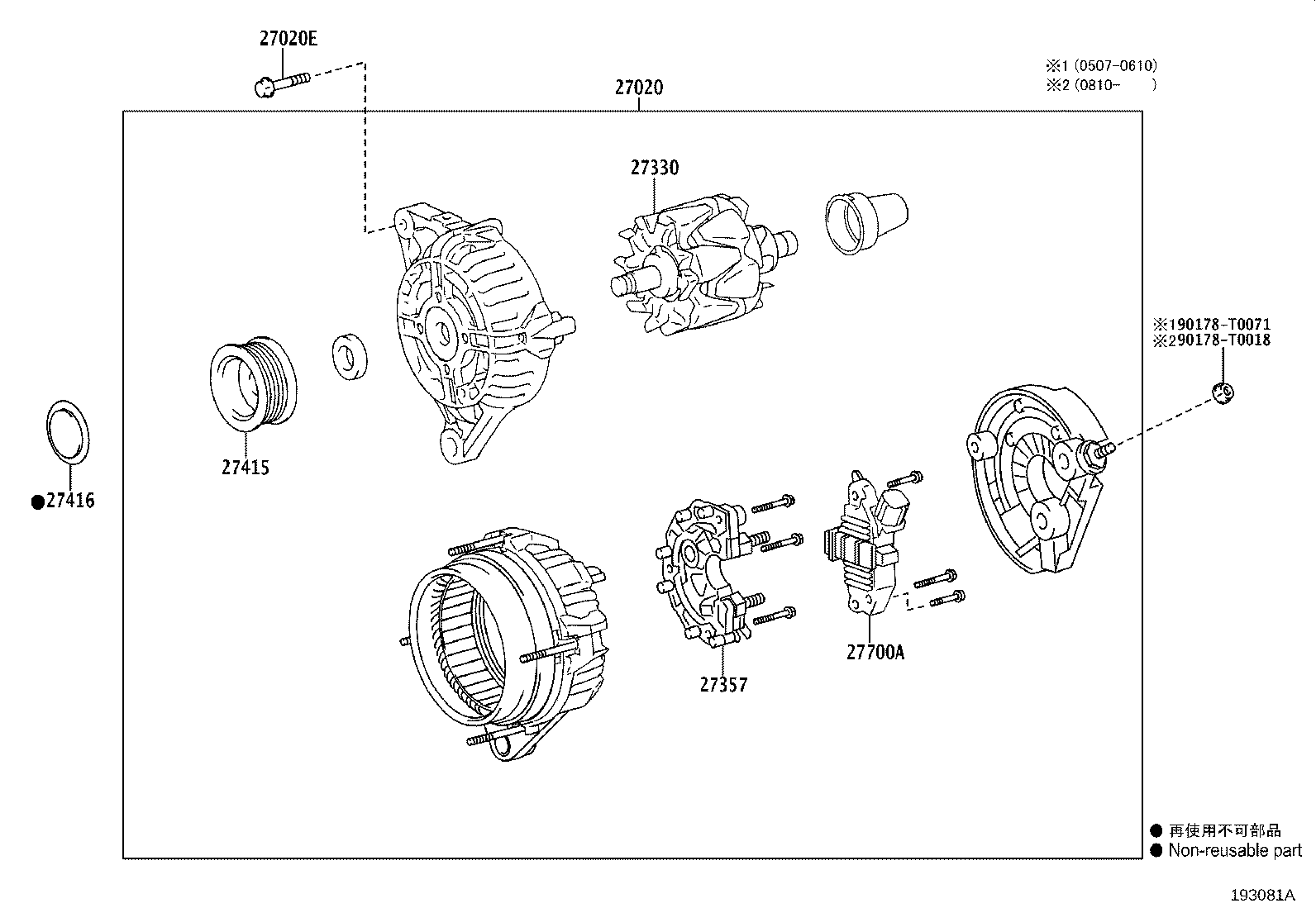

(0507-0610)2KDFTV..DCB,SCB ; (0810- )1KDFTV,2KDFTV..DCB,SCB

Click highlighted areas on diagram

12V 70A,12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0L020	2KDFTV..KUN25..DCB,SCB 12V 80A	10/2006 - 12/2006	1
27060-0L021	1KDFTV,2KDFTV..KUN15,2#..4FC,5F 12V 80A	01/2007 - 10/2008	1
27060-0L050	2KDFTV..KUN15,25..DCB,SCB 12V 70A	07/2005 - 10/2006	1
27020E - BOLT(FOR ALTERNATOR)
90105-10092	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0M040	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	04/2007 - 10/2008	1
27330-0L050	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-0L050	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0L030	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	01/2007 - 10/2008	1
27415-0L020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27415-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 12/2006	1
27416 - CAP, ALTERNATOR PULLEY
27416-0L020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
27416-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 01/2007	1
27416-0L030	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	01/2007 - 10/2008	1
27700A - REGULATOR ASSY, GENERATOR
27700-0D020	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
Common parts
90178-T0018
90178-T0071

KUN25R-TRMDHW (2005)

(0507-1008)2KDFTV..KUN25..LHD..XTR ; (0507- )2KDFTV..KUN25..LHD..THDCB,THSCB ; (

(0507-0610)2KDFTV..DCB,SCB ; (0810- )1KDFTV,2KDFTV..DCB,SCB
