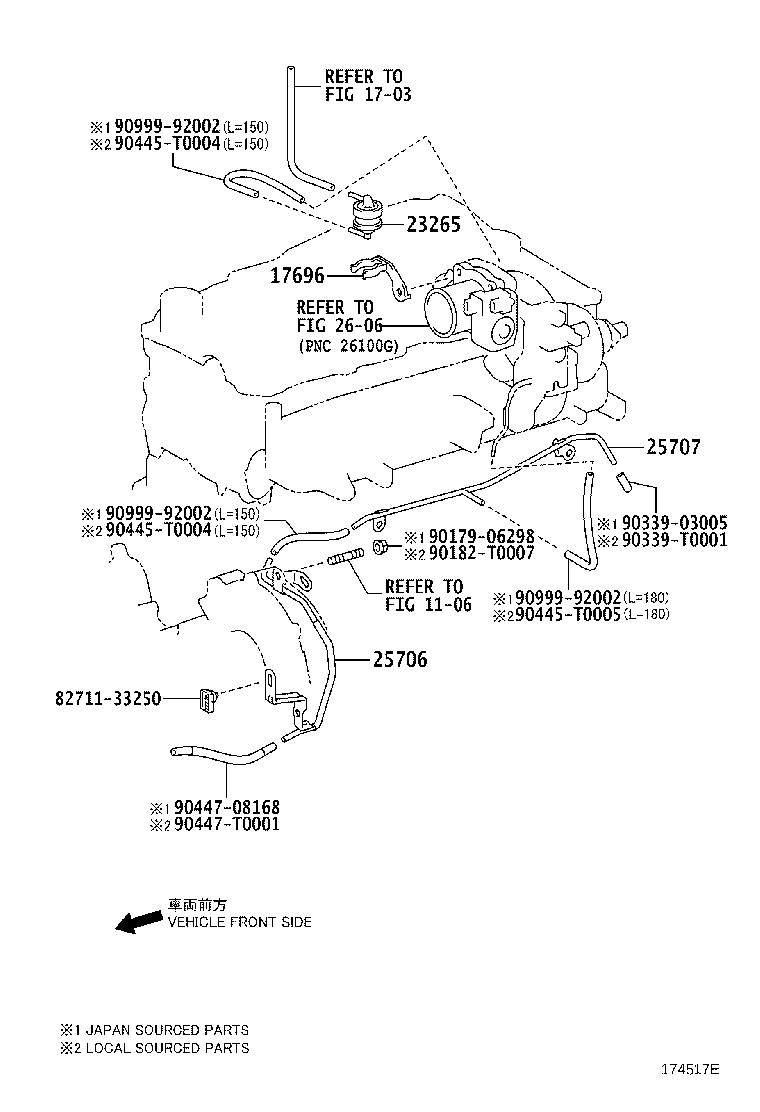

KUN25R-TRMDHW (2005)
Toyota Hilux
(0507-0608)2KDFTV..XTR ; (0507-0610)2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17696 - BRACKET, GAS FILTER | ||||
| 17696-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 17696-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 17696-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11036 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
1 | ||
| 90917-11044 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 25706-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25706-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 25707-0L020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 25707-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| Common parts | ||||
| 82711-33250 | ||||
| 90179-06298 | ||||
| 90182-T0007 | ||||
| 90339-03005 | ||||
| 90339-T0001 | ||||
| 90445-T0004 | ||||
| 90445-T0005 | ||||
| 90447-08168 | ||||
| 90447-T0001 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
| 2606 | ||||

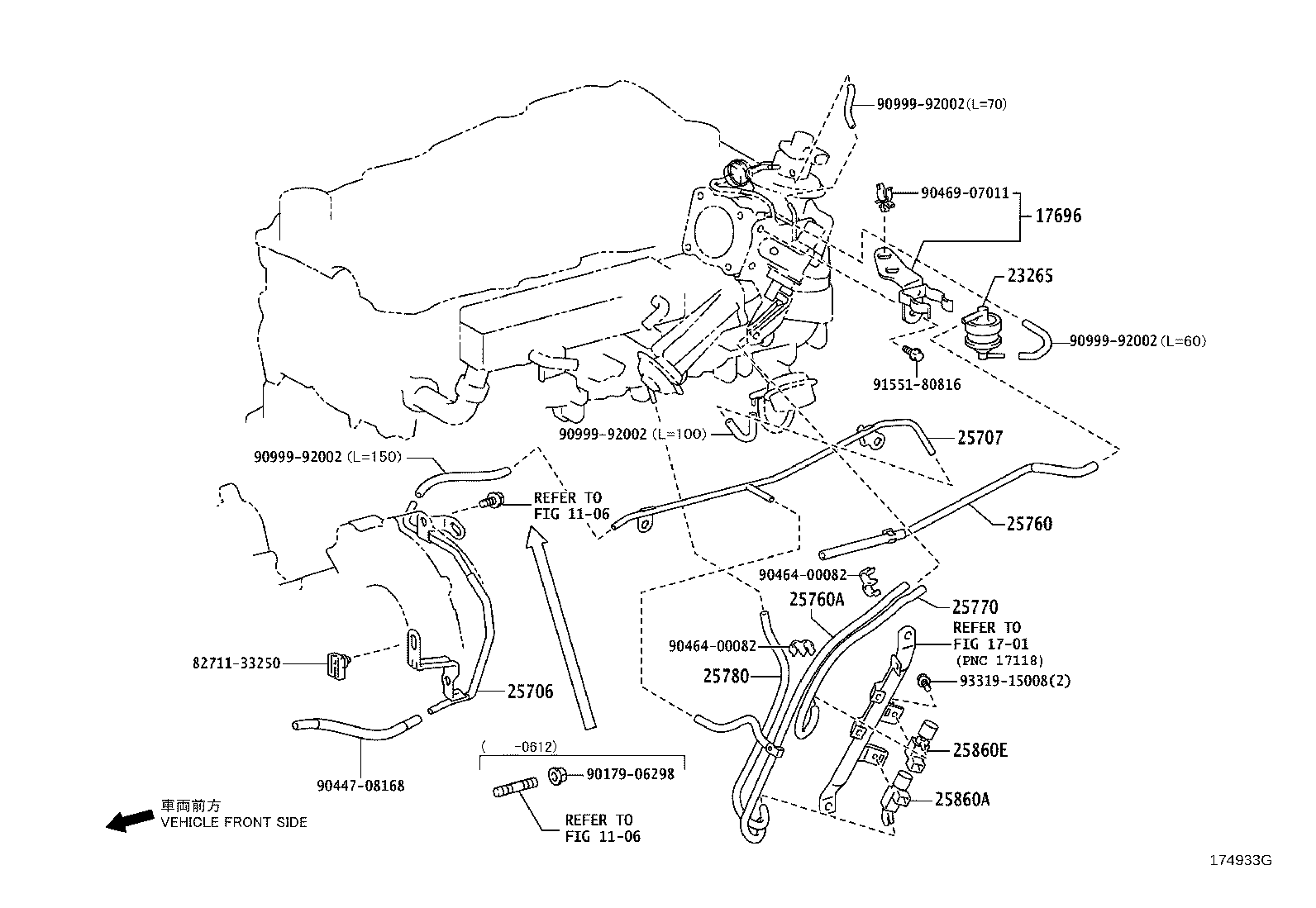

(0608- )2KDFTV..KUN25..XTR ; (0608- )2KDFTV..KUN15..DLX..HDCR ; (0610- )2K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17696 - BRACKET, GAS FILTER | ||||
| 17696-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 17696-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 17696-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11036 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
1 | ||
| 90917-11044 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 25706-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25706-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 25707-0L020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 25707-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-30060 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25760A - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-30090 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25770-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3 | ||||
| 25780-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12093 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 25860E - VALVE, VACUUM SWITCHING, NO.2 | ||||
| 90910-12184 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| Common parts | ||||
| 82711-33250 | ||||
| 90179-06298 | ||||
| 90447-08168 | ||||
| 90464-00082 | ||||
| 90469-07011 | ||||
| 90999-92002 | ||||
| 91551-80816 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
(1107- )2KDFTV..KUN25..LHD..DCB,THDCB..CBU ;(1210-1308)2KDFTV..KUN35..THSCB ; (
RUSSIA & UKURAINE OR MOROCCO SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-33250 | ||||
| 90447-08168 | ||||
| 90464-00082 | ||||
| 90469-07011 | ||||
| 90999-92002 | ||||
| 91551-80816 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
