Toyota Hilux KUN25 AIR CLEANER - JDM Part Detective

KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

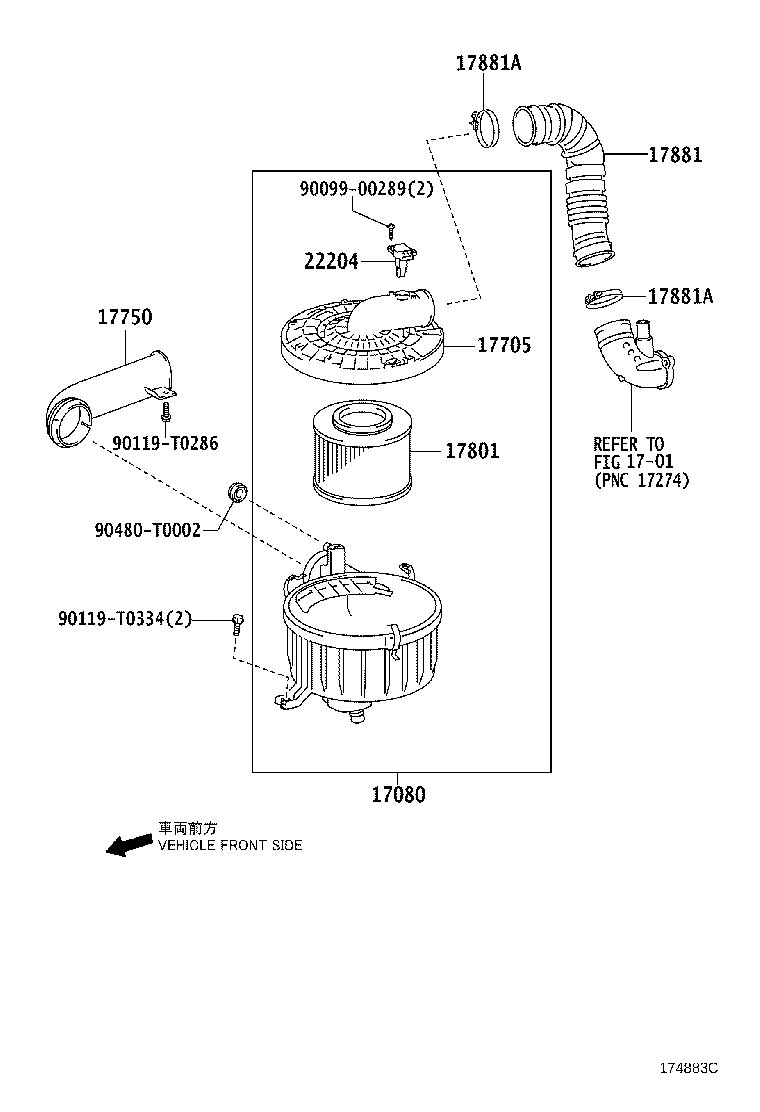

ILLUST NO. 1 OF 2(0608-0809)2KDFTV..KUN25..XTR ; (0608-0809)2KDFTV..KUN15..THDCB,THSCB,XTR ; (0702-0

Click highlighted areas on diagram

Part #	Description	Period	Qty
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L110	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17705-0L140	2KDFTV..KUN15,25..DCB,SCB	10/2006 - 10/2008	1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L030	1KDFTV,2KDFTV..KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L081	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	01/2006 - 10/2006	1
17881-0L080	2KDFTV..KUN15,25	07/2005 - 01/2006	1
17881-0L110	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.2	07/2005 - 10/2006	1
90460-T0005	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	2
90460-T0004	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.1	07/2005 - 10/2006	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.2	07/2005 - 10/2006	1
90460-T0005	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	2
90460-T0004	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.1	07/2005 - 10/2006	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0N010	1KDFTV,2KDFTV..KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
Common parts
90099-00289
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701

ILLUST NO. 1 OF 2(0610-0810)1KDFTV,2KDFTV..DCB,SCB ; (0810- )1KDFTV..DCB ; (0910- )2KDFTV..KUN

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-0L170	2KDFTV..KUN15,25..DCB,SCB	10/2006 - 05/2007	1
17700-0L140	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17700-0L171	2KDFTV..KUN15,25..DCB,SCB	06/2007 - 10/2008	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L110	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17705-0L140	2KDFTV..KUN15,25..DCB,SCB	10/2006 - 10/2008	1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L030	1KDFTV,2KDFTV..KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-0L010	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L081	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	01/2006 - 10/2006	1
17881-0L080	2KDFTV..KUN15,25	07/2005 - 01/2006	1
17881-0L110	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.2	07/2005 - 10/2006	1
90460-T0005	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	2
90460-T0004	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.1	07/2005 - 10/2006	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.2	07/2005 - 10/2006	1
90460-T0005	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	2
90460-T0004	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.1	07/2005 - 10/2006	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0N010	1KDFTV,2KDFTV..KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
Common parts
90099-00289
90119-T0286
90119-T0334
90467-33031
90480-T0002
Linked diagrams
1701

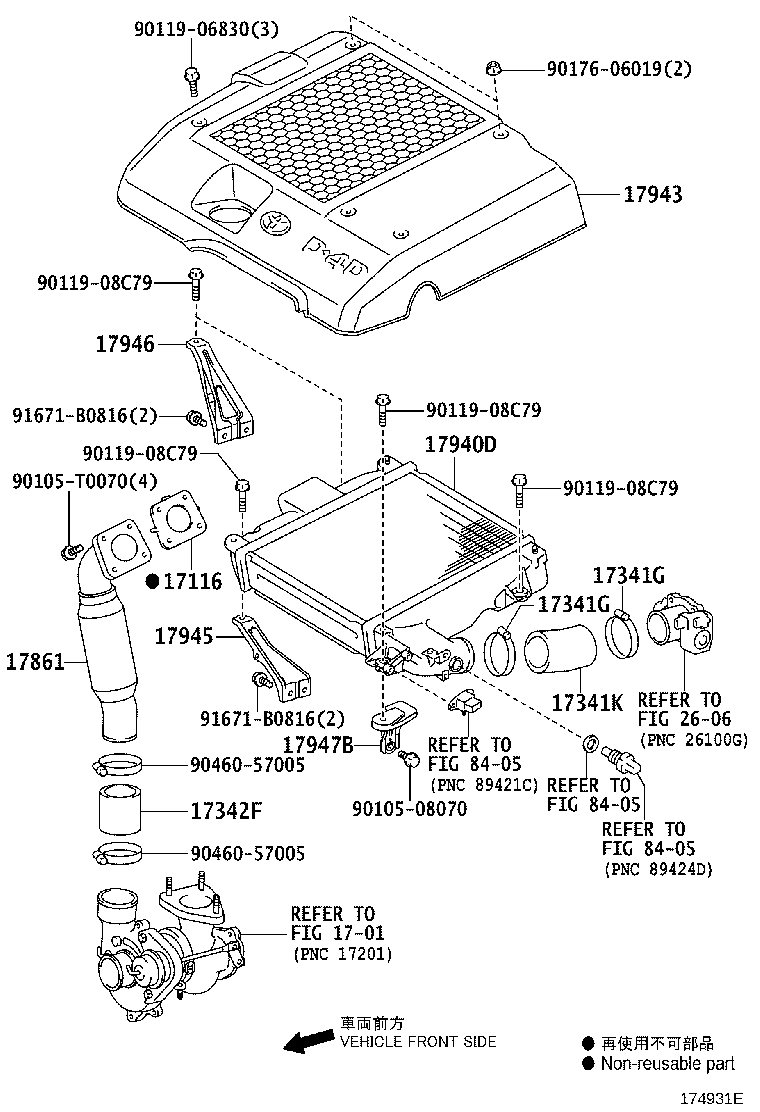

ILLUST NO. 2 OF 2(0608-0809)2KDFTV..KUN25..XTR ; (0608-0809)2KDFTV..KUN15..DLX..HDCR ; (0610-0810)2K

Click highlighted areas on diagram

Part #	Description	Period	Qty
17116 - GASKET, INTAKE FLANGE
17116-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-30060	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30050	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17861 - CONNECTOR, INTAKE AIR
17860-30040	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17940D - INTERCOOLER ASSY
17940-0L030	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17943 - PROTECTOR, INTERCOOLER
12601-0L050	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30080	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30040	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17947B - BRACKET, INTERCOOLER SUPPORT, NO.3
17947-30010	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
Common parts
90105-08070
90105-T0070
90119-06830
90119-08C79
90176-06019
90460-57005
91671-B0816
Linked diagrams
1701
2606
8405

ILLUST NO. 2 OF 2(0809- )2KDFTV..THDCB,THSCB,XTR ; (0810- )2KDFTV..DCB,SCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
17116 - GASKET, INTAKE FLANGE
17116-0L010	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-30060	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30050	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17861 - CONNECTOR, INTAKE AIR
17860-30040	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17940D - INTERCOOLER ASSY
17940-0L030	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17943 - PROTECTOR, INTERCOOLER
12601-0L050	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30080	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30040	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17947B - BRACKET, INTERCOOLER SUPPORT, NO.3
17947-30010	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
Common parts
90105-08070
90105-T0070
90119-06830
90119-08C79
90176-06019
90460-57005
90460-65012
91671-00816
91671-B0816
Linked diagrams
1701
2606
8405

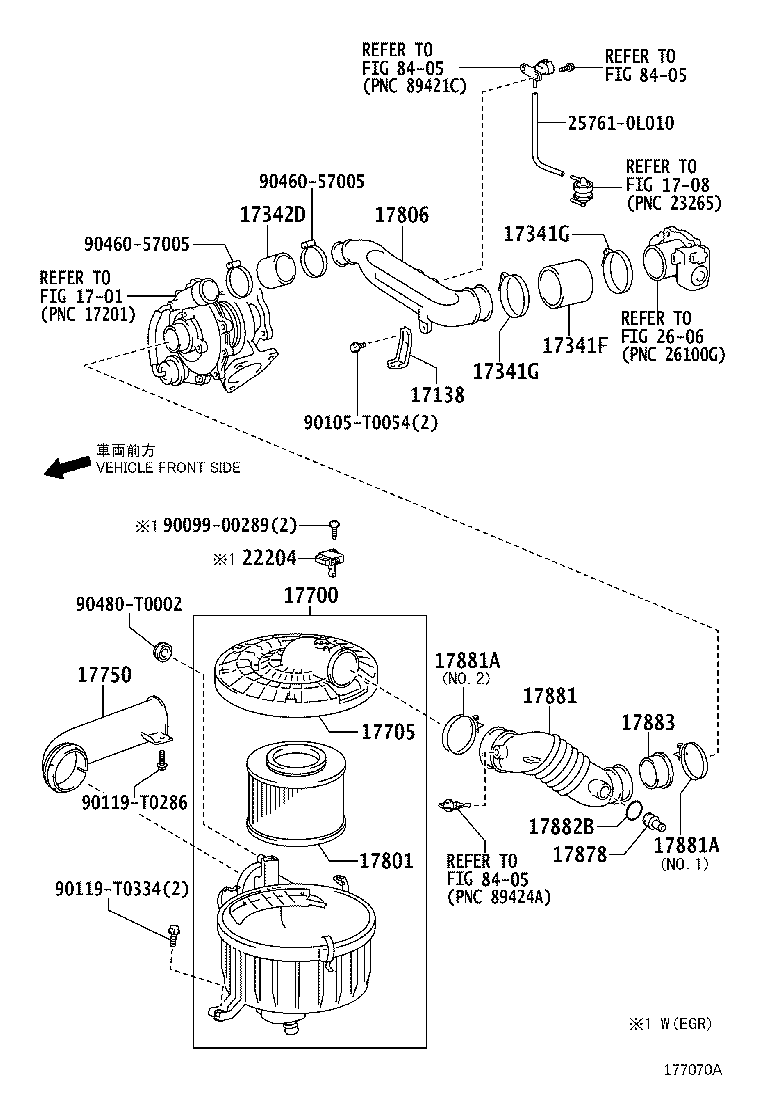

(0507-0610)2KDFTV..DCB,SCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
17138 - STAY, INTAKE PIPE OR HOSE
17138-0L010	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17341F - HOSE, AIR, NO.1
17341-30060	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	2
17342D - HOSE, AIR, NO.2
17342-30050	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17700 - CLEANER ASSY, AIR
17700-0L170	2KDFTV..KUN15,25..DCB,SCB	10/2006 - 05/2007	1
17700-0L140	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17700-0L171	2KDFTV..KUN15,25..DCB,SCB	06/2007 - 10/2008	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L110	2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17705-0L140	2KDFTV..KUN15,25..DCB,SCB	10/2006 - 10/2008	1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L030	1KDFTV,2KDFTV..KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010	1KDFTV,2KDFTV..KUN15,2#..4FC,5F	07/2005 - 10/2008	1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17113-0L020	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-0L010	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L081	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	01/2006 - 10/2006	1
17881-0L080	2KDFTV..KUN15,25	07/2005 - 01/2006	1
17881-0L110	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.2	07/2005 - 10/2006	1
90460-T0005	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	2
90460-T0004	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.1	07/2005 - 10/2006	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.2	07/2005 - 10/2006	1
90460-T0005	2KDFTV..KUN25..DCB,SCB	10/2006 - 10/2008	2
90460-T0004	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB NO.1	07/2005 - 10/2006	1
17882B - CLAMP(FOR COOL AIR INTAKE)
90467-31110	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
17883 - HOSE, AIR CLEANER, NO.3
17883-0L010	2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB	07/2005 - 10/2006	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0N010	1KDFTV,2KDFTV..KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
Common parts
25761-0L010
90099-00289
90105-T0054
90119-T0286
90119-T0334
90460-57005
90480-T0002
Linked diagrams
1701
1708
2606
8405
