KUN25R-TRMDHW (2005)
Toyota Hilux
ILLUST NO. 1 OF 2(0507-0808) ; (0808-0810)1KDFTV,2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16361 - FAN | ||||
| 16361-0L020 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0L160 |
1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16417 - COCK | ||||
| 16417-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16418 - PACKING | ||||
| 16418-0D310 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0004 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-30010 |
1KDFTV,2KDFTV..KUN15,2# |
1 | ||
| 16401-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0L070 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| Common parts | ||||
| 90119-T0346 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||

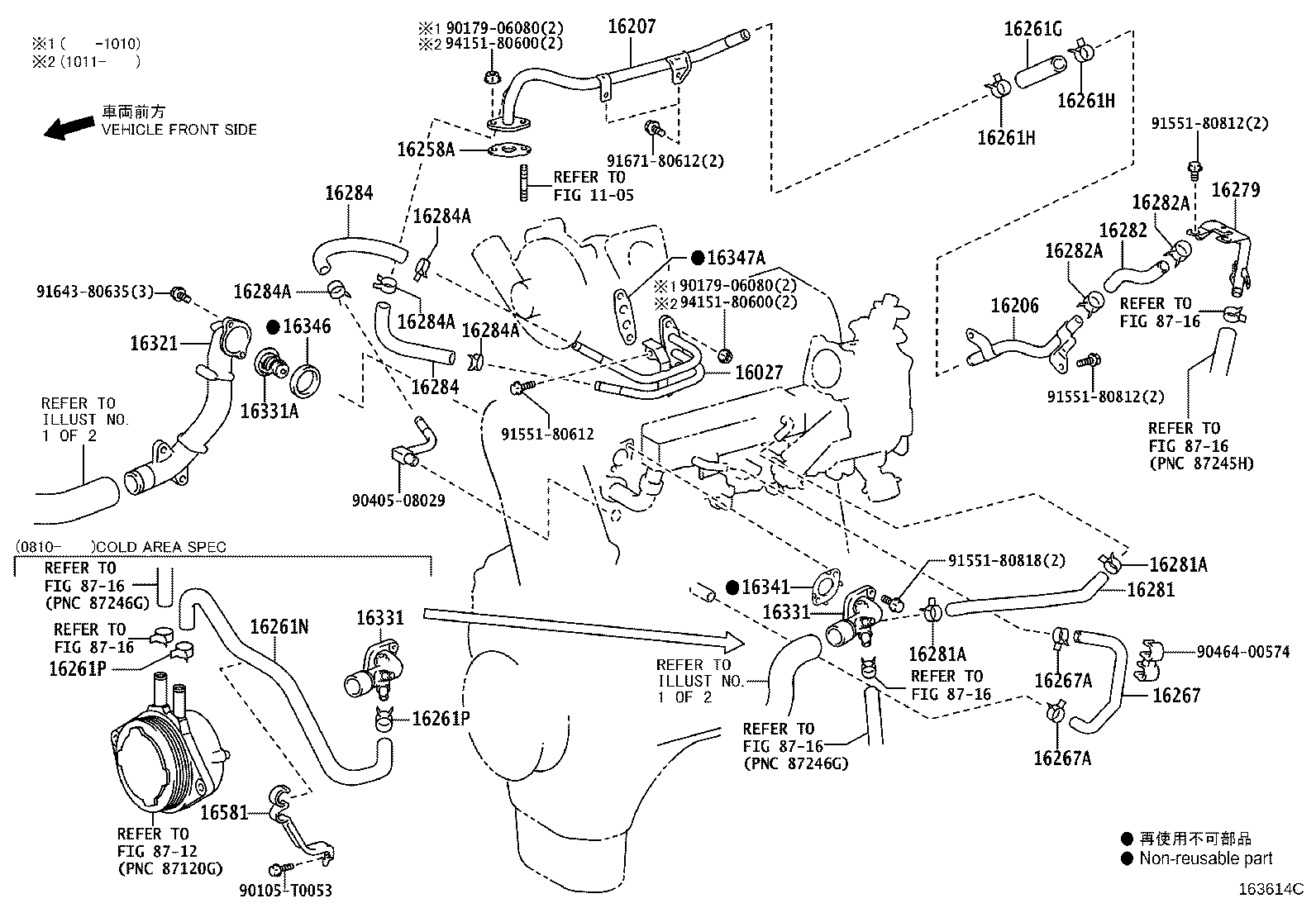

ILLUST NO. 2 OF 2(0507-0608)2KDFTV..XTR ; (0507-0610)2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16206-0L020 |
2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L040 |
2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16258-67010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L050 |
2KDFTV..KUN15..DCR;2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| 16264-0L090 |
2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0010 |
2KDFTV..KUN15,25..5F COLD AREA SPEC |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0010 |
2KDFTV..KUN15,25..5F COLD AREA SPEC |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-30040 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 16321-30040 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16341-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(L) |
1 | ||
| 16346-67010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(J) |
1 | ||
| 16346-0K010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(L) |
1 | ||
| 16346-67010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(J) |
1 | ||
| 16346-0K010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30050 |
2KDFTV..KUN15..DCR;2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| 16581-30150 |
2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0004 | ||||
| 90179-06080 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8712 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0808- )1KDFTV,2KDFTV..THDCB,THSCB,XTR ; (0810- )1KDFTV,2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16361 - FAN | ||||
| 16361-0L020 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0L160 |
1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16417 - COCK | ||||
| 16417-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16418 - PACKING | ||||
| 16418-0D310 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0004 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-30010 |
1KDFTV,2KDFTV..KUN15,2# |
1 | ||
| 16401-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0L070 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| Common parts | ||||
| 90119-T0254 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||

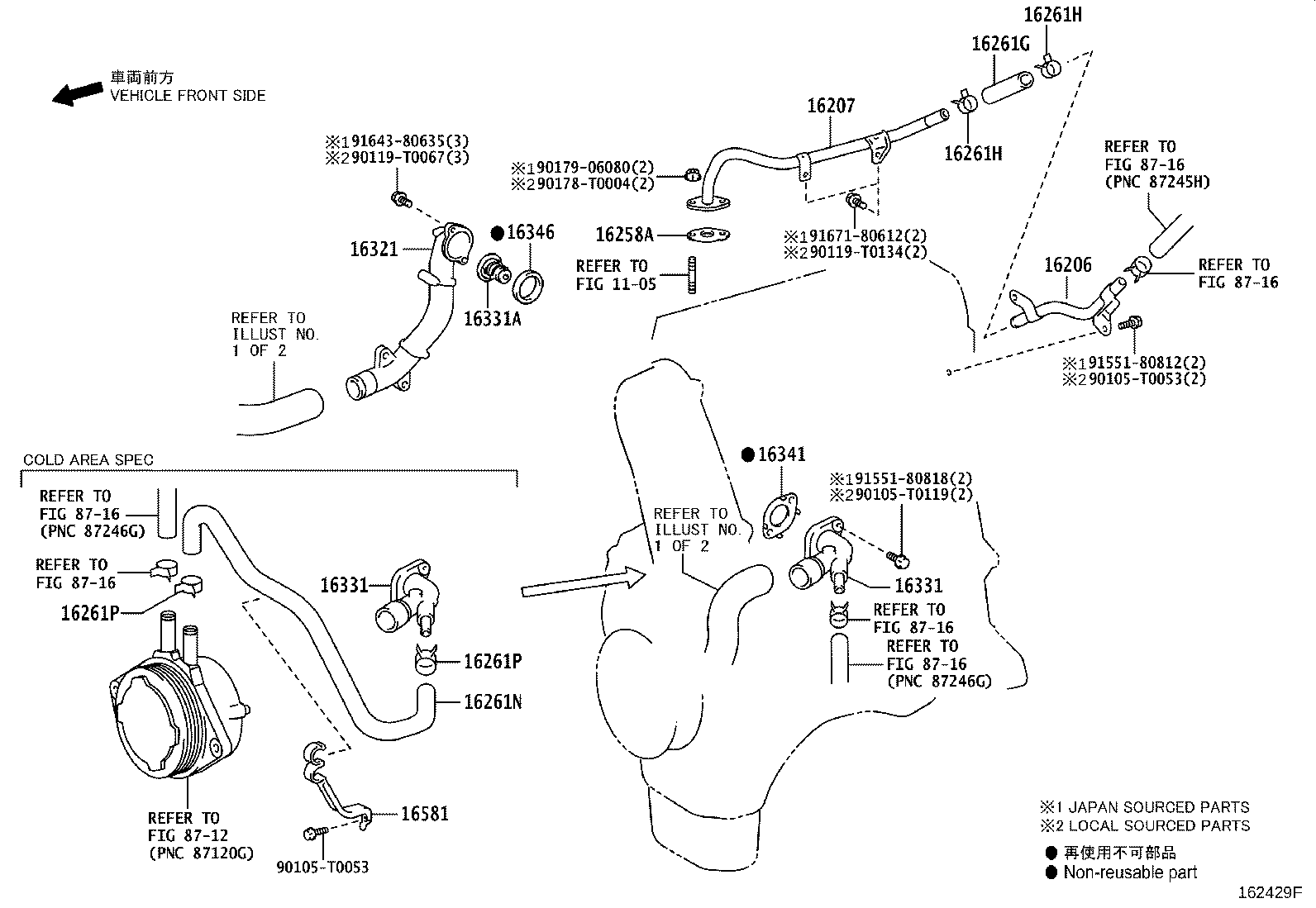

ILLUST NO. 2 OF 2(0610- )1KDFTV ; (0908- )2KDFTV..KUN25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16206-0L020 |
2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L040 |
2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16258-67010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30060 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L050 |
2KDFTV..KUN15..DCR;2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| 16264-0L090 |
2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0010 |
2KDFTV..KUN15,25..5F COLD AREA SPEC |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0010 |
2KDFTV..KUN15,25..5F COLD AREA SPEC |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30080 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30080 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..DCB,SCB |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-30040 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 16321-30040 |
2KDFTV..KUN25..DCB,SCB *163 OR *184 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 16341-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(L) |
1 | ||
| 16346-67010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(J) |
1 | ||
| 16346-0K010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(L) |
1 | ||
| 16346-67010 |
2KDFTV..KUN25..DCB,SCB *163 OR *184,(J) |
1 | ||
| 16346-0K010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30050 |
2KDFTV..KUN15..DCR;2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| 16581-30150 |
2KDFTV..KUN25..DCB,SCB COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90179-06080 | ||||
| 90405-08029 | ||||
| 90464-00574 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8712 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107-1203)2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0053 | ||||
| 90401-12023 | ||||
| 90405-08029 | ||||
| 90430-12037 | ||||
| 90469-14002 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 2501 | ||||
| 8712 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
