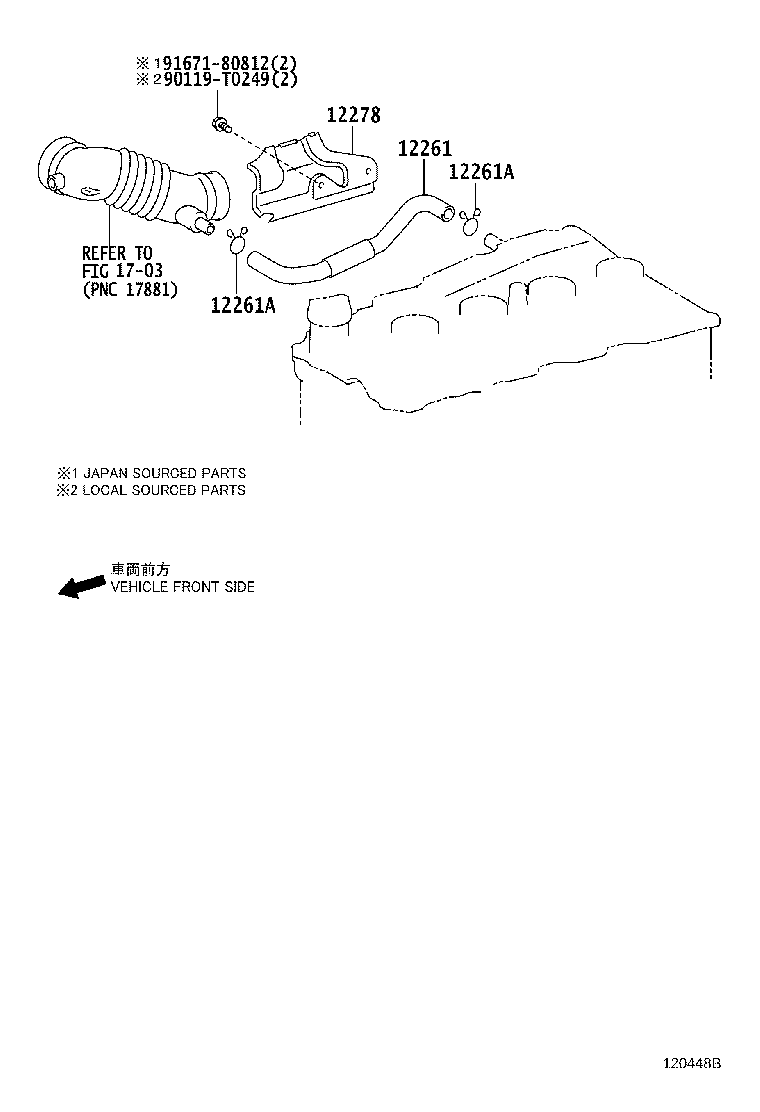

KUN25R-TRMDHW (2005)
Toyota Hilux
(0507-0608) ; (0608-0610)2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-0L020 |
2KDFTV..KUN15,25 |
1 | ||
| 12261-0L021 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
1 | ||
| 12261-30070 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-28002 |
2KDFTV..KUN25..DCB,SCB NO.2 |
1 | ||
| 90467-22010 |
2KDFTV..KUN25..DCB,SCB NO.1 |
1 | ||
| 90466-T0032 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-28002 |
2KDFTV..KUN25..DCB,SCB NO.2 |
1 | ||
| 90467-22010 |
2KDFTV..KUN25..DCB,SCB NO.1 |
1 | ||
| 90466-T0032 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
2 | ||
| 12278 - INSULATOR, VENTILATION HOSE HEAT | ||||
| 12278-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 12278-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| Common parts | ||||
| 90119-T0249 | ||||
| 91671-80812 | ||||
| Linked diagrams | ||||
| 1703 | ||||

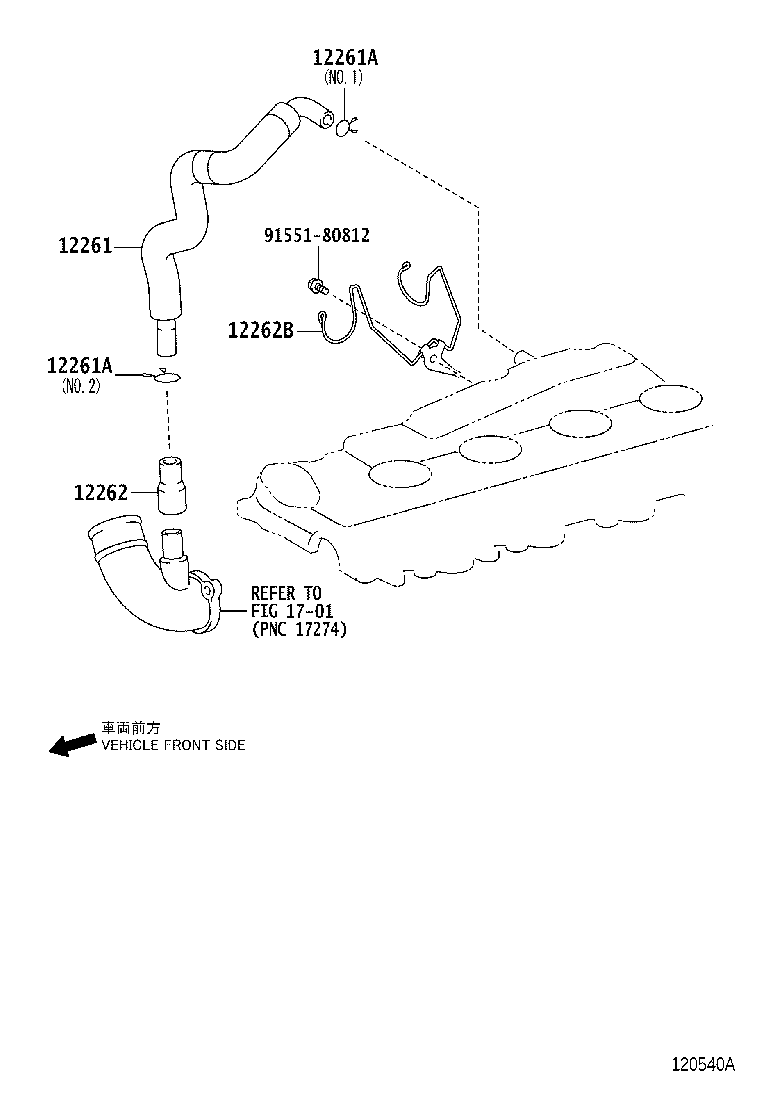

(0608-0809)2KDFTV..KUN25..XTR ; (0608-0809)2KDFTV..KUN15..DLX..HDCR ; (0610-0810)2K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-0L020 |
2KDFTV..KUN15,25 |
1 | ||
| 12261-0L021 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
1 | ||
| 12261-30070 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-28002 |
2KDFTV..KUN25..DCB,SCB NO.2 |
1 | ||
| 90467-22010 |
2KDFTV..KUN25..DCB,SCB NO.1 |
1 | ||
| 90466-T0032 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-28002 |
2KDFTV..KUN25..DCB,SCB NO.2 |
1 | ||
| 90467-22010 |
2KDFTV..KUN25..DCB,SCB NO.1 |
1 | ||
| 90466-T0032 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
2 | ||
| 12262B - CLAMP(FOR VENTILATION HOSE) | ||||
| 16581-30170 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| Common parts | ||||
| 91551-80812 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(0809- )2KDFTV..THDCB,THSCB,XTR ; (0810- )2KDFTV..DCB,SCB ; (0908- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-0L020 |
2KDFTV..KUN15,25 |
1 | ||
| 12261-0L021 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
1 | ||
| 12261-30070 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-28002 |
2KDFTV..KUN25..DCB,SCB NO.2 |
1 | ||
| 90467-22010 |
2KDFTV..KUN25..DCB,SCB NO.1 |
1 | ||
| 90466-T0032 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
2 | ||
| 12262B - CLAMP(FOR VENTILATION HOSE) | ||||
| 16581-30170 |
2KDFTV..KUN25..DCB,SCB |
1 | ||
| Common parts | ||||
| 91551-80812 | ||||
| Linked diagrams | ||||
| 1703 | ||||
(1107-1203)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80812 | ||||
| Linked diagrams | ||||
| 1703 | ||||
