KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0608)2KDFTV..KUN25..XTR ; (0507-0610)2KDFTV..KUN25..DCB,SCB ; (0507- )2KDF

Click highlighted areas on diagram

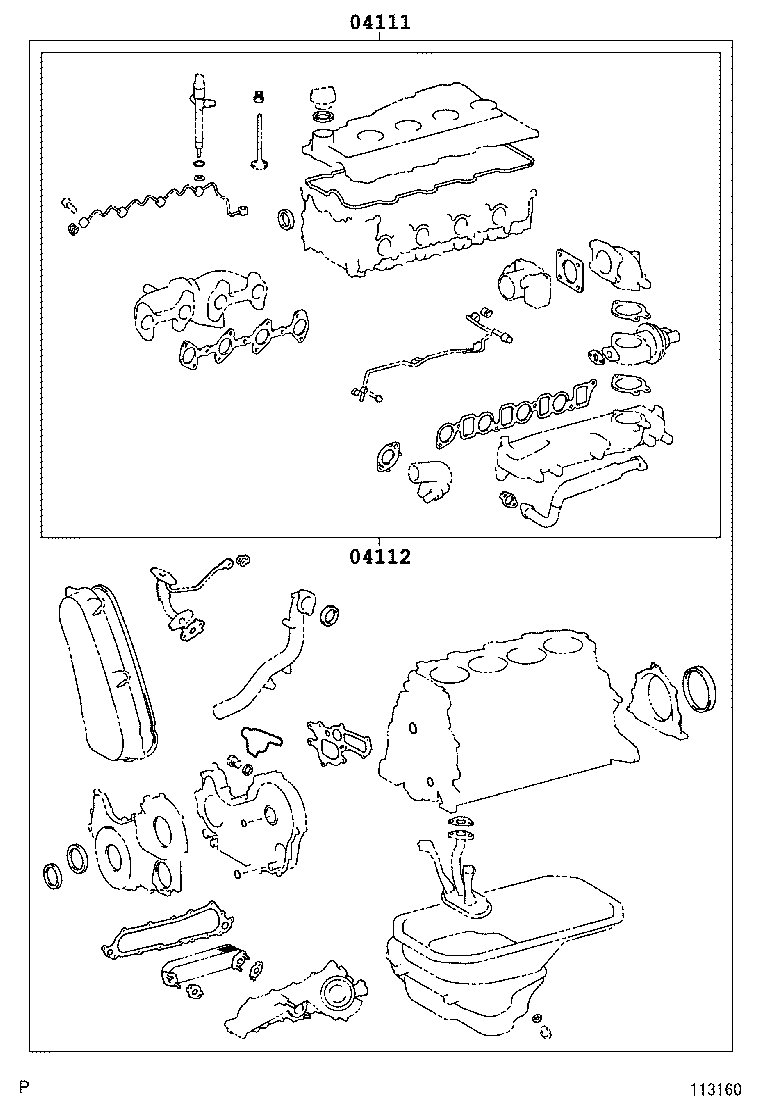

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0L080

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

*130

 1
04111-30680

2KDFTV..KUN25..DCB,SCB

*163 OR *184

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-30300

2KDFTV..KUN25..DCB,SCB

*163 OR *184

 1
04112-0L080

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

*130

 1
