KUN25R-DRMSHW (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )5F,5FC..SR

Click highlighted areas on diagram

W(HEADLAMP CLEANER)

diagram 8271116820 8271152070 8271152070 8271152090 85035 85035 8505 8505 85301 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 9011906818 90119T0079 9046707076A0
Part # Description Qty Price

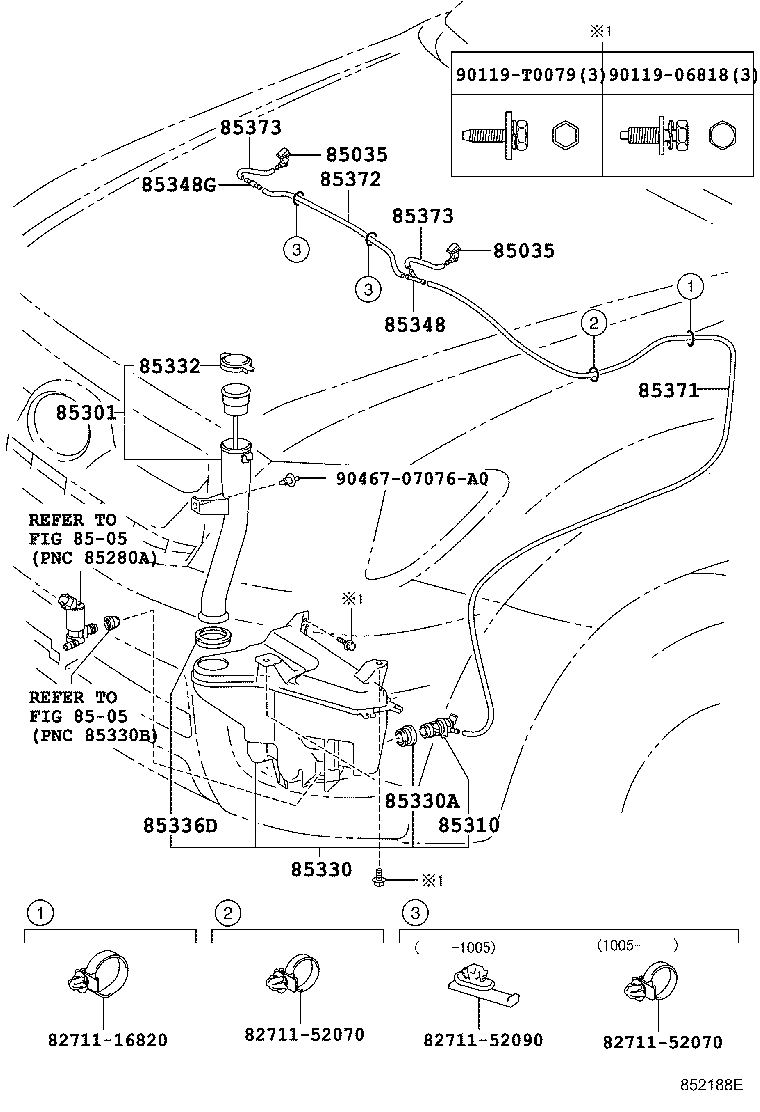

85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

KUN15,2#..4FC,5F

 2
85381-0K010

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

KUN15,2#..4FC,5F

 2
85381-0K010

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K010

KUN15,2#..4FC,5F

 1
85301-0K010

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-71010

KUN15,2#..4FC,5F

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-71010

KUN2#..(5F,5FC)..SR

 1
85315-0K010

KUN15,2#..4FC,5F

 1
85355-71011

KUN2#..RHD..THDCB..SR

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

KUN2#..(5F,5FC)..SR

 1
85336-0K020

KUN15,2#..4FC,5F

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K010

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

 1
85316-0K010

KUN15,2#..4FC,5F

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0K010

KUN15,2#..4FC,5F

 1
85336-42190

KUN2#..(5F,5FC)..SR

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

KUN15,2#..4FC,5F

 1
85378-0K051

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

 1
85348-12250

KUN15,2#..5F,5FC

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

KUN15,2#..4FC,5F

 1
85375-02330

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

 1
85349-89122

KUN15,2#..5F,5FC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33803

KUN15,2#..5F,5FC

*H,L=1910

 1
90099-33803

KUN15,2#..4FC,5F

*H,L=1910

 1
90068-33108

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

L=1910

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33106

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

L=510

 1
90099-33080

KUN15,2#..4FC,5F

*H,L=510

 1
90099-33080

KUN15,2#..5F,5FC

*H,L=510

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KUN15,2#..4FC,5F

*H,L=120

 2
90099-33080

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KUN15,2#..4FC,5F

*H,L=120

 2
90099-33080

KUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)

*H,L=120

 2
Common parts
82711-16820
82711-52070
82711-52090
90119-06818
90119-T0079
90467-07076A0
Linked diagrams
8505
