KUN25R-DRMDHW (2007)
Toyota Hilux
(0507-0808)THDCB,THSCB,XTR

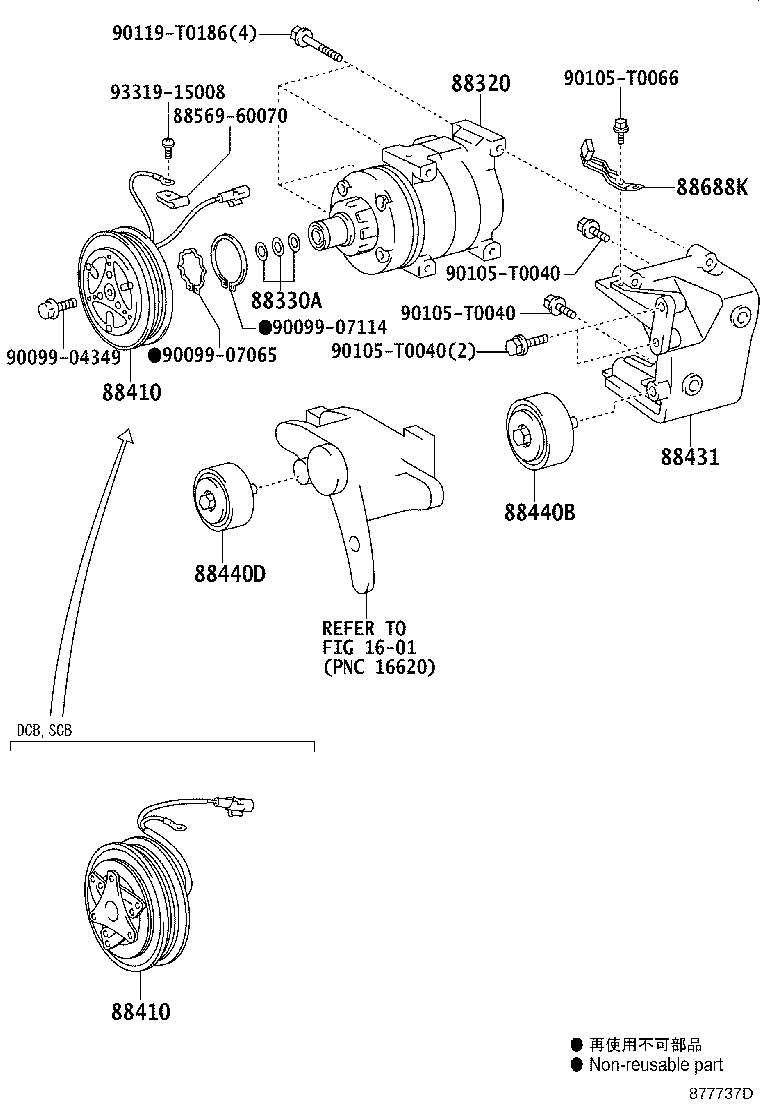

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0K080 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88320-71110 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-30420 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-71050 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88410-0K460 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88410-0K390 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88410-0K080 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-71050 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88410-0K460 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88410-0K390 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88410-0K080 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0K060 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88431-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88431-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-0K060 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88440-0K060 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88440-0K250 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88440D - PULLEY ASSY, IDLE NO.2 | ||||
| 88440-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88440-0K010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88440-0K030 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-0K100 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88688-0K140 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88688-0K100 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-T0040 | ||||
| 90105-T0066 | ||||
| 90119-T0186 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1601 | ||||
(0507-0810)DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310E - COMPRESSOR, W/MAGNET CLUTCH | ||||
| 88310-0K110 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88310-0K111 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-30420 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0K060 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88431-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88431-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-0K060 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88440-0K060 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88440-0K250 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88440D - PULLEY ASSY, IDLE NO.2 | ||||
| 88440-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88440-0K010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88440-0K030 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-0K100 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88688-0K140 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88688-0K100 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-T0040 | ||||
| 90105-T0066 | ||||
| 90119-T0186 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1601 | ||||
