KUN25R-DRMDHW (2007)

Toyota Hilux

Production Feb 2007 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

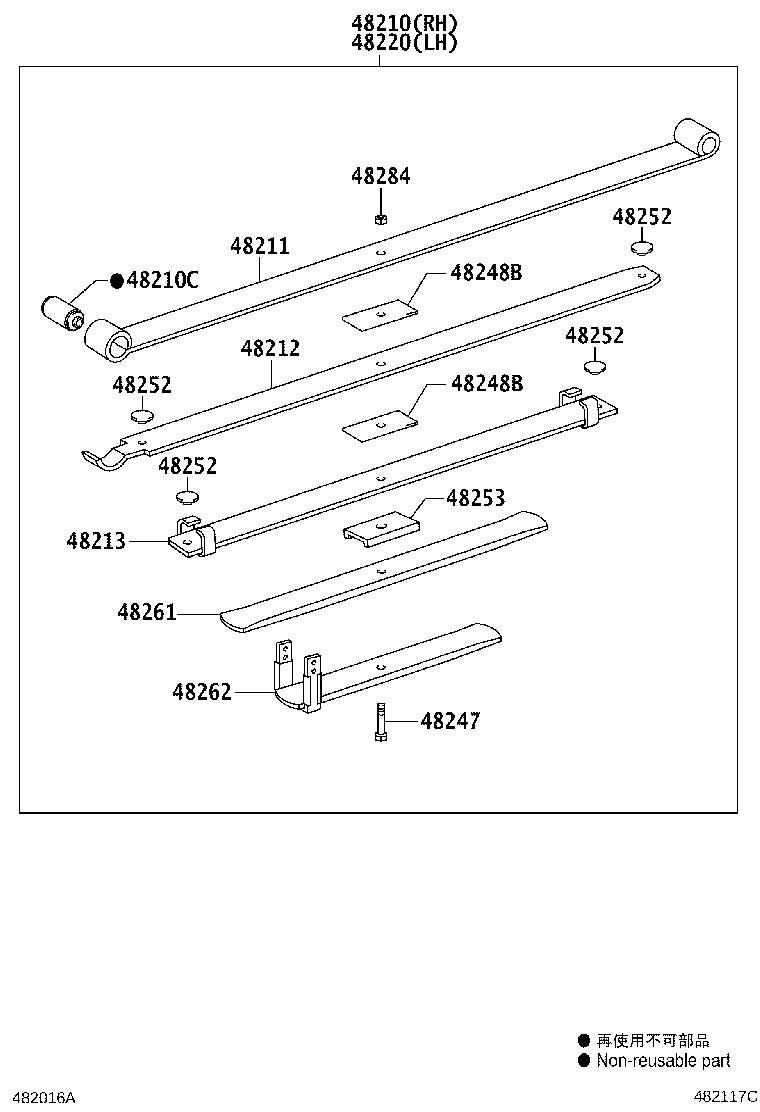

ILLUST NO. 2 OF 2(0507-0808)KUN2#..THDCB,THSCB,XTR

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48220 48247 48248B 48248B 48252 48252 48252 48252 48253 48261 48262 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K080

KUN2#..THDCB

5-LEAF

 1
48210-0K100

KUN2#..DCB

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0005

KUN25;KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 2
48211 - LEAF, REAR SPRING, NO.1
48211-0K100

KUN2#..DCB

 2
48201-0K080

KUN2#..THDCB

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K100

KUN2#..DCB

 2
48212-0K080

KUN2#..THDCB

 2
48213 - LEAF, REAR SPRING, NO.3
48213-0K100

KUN2#..DCB

 2
48204-0K080

KUN2#..THDCB

 2
48220 - SPRING ASSY, REAR LH
48210-0K080

KUN2#..THDCB

5-LEAF

 1
48210-0K100

KUN2#..DCB

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K070

KUN2#..THDCB,XTR

 2
48247-0K040

KUN15..SCB;KUN2#..DCB,SCB

 2
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

KUN15..XTR;KUN2#..THDCB,THSCB,XTR

 4
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

KUN15..XTR;KUN2#..THDCB,THSCB,XTR

 4
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

KUN15,2#..THDCB,THSCB,XTR

 2
48253-0K040

KUN15,2#..DCB,SCB

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-0K080

KUN2#..THDCB

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48026-0K080

KUN2#..THDCB

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K010

KUN15,2#..THDCB,THSCB,XTR

 2
48284-0K040

KUN15,2#..DCB,SCB

 2

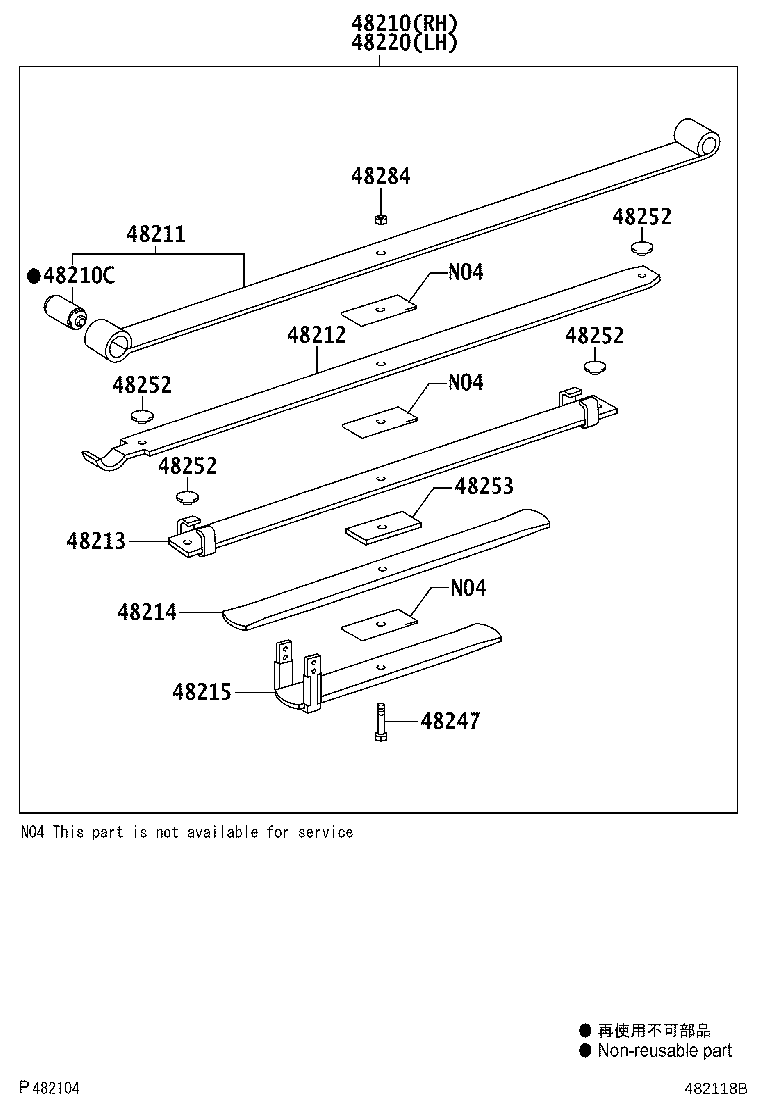

ILLUST NO. 2 OF 2(0507-0810)KUN2#..DCB,SCB

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48247 48252 48252 48252 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K080

KUN2#..THDCB

5-LEAF

 1
48210-0K100

KUN2#..DCB

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0005

KUN25;KUN15,26..(DCB,THDCB,XTR)..(4FC,5F)

 2
48211 - LEAF, REAR SPRING, NO.1
48211-0K100

KUN2#..DCB

 2
48201-0K080

KUN2#..THDCB

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K100

KUN2#..DCB

 2
48212-0K080

KUN2#..THDCB

 2
48213 - LEAF, REAR SPRING, NO.3
48213-0K100

KUN2#..DCB

 2
48204-0K080

KUN2#..THDCB

 2
48214 - LEAF, REAR SPRING, NO.4
48214-0K100

KUN2#..DCB

 2
48215 - LEAF, REAR SPRING, NO.5
48215-0K100

KUN2#..DCB

 2
48220 - SPRING ASSY, REAR LH
48210-0K080

KUN2#..THDCB

5-LEAF

 1
48210-0K100

KUN2#..DCB

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K070

KUN2#..THDCB,XTR

 2
48247-0K040

KUN15..SCB;KUN2#..DCB,SCB

 2
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-0K040

KUN15,2#..DCB,SCB

 8
48252-0K010

KUN15,2#..THDCB,THSCB,XTR

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

KUN15,2#..THDCB,THSCB,XTR

 2
48253-0K040

KUN15,2#..DCB,SCB

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K010

KUN15,2#..THDCB,THSCB,XTR

 2
48284-0K040

KUN15,2#..DCB,SCB

 2
