KUN25R-DRMDHW (2007)

Toyota Hilux

Production Feb 2007 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

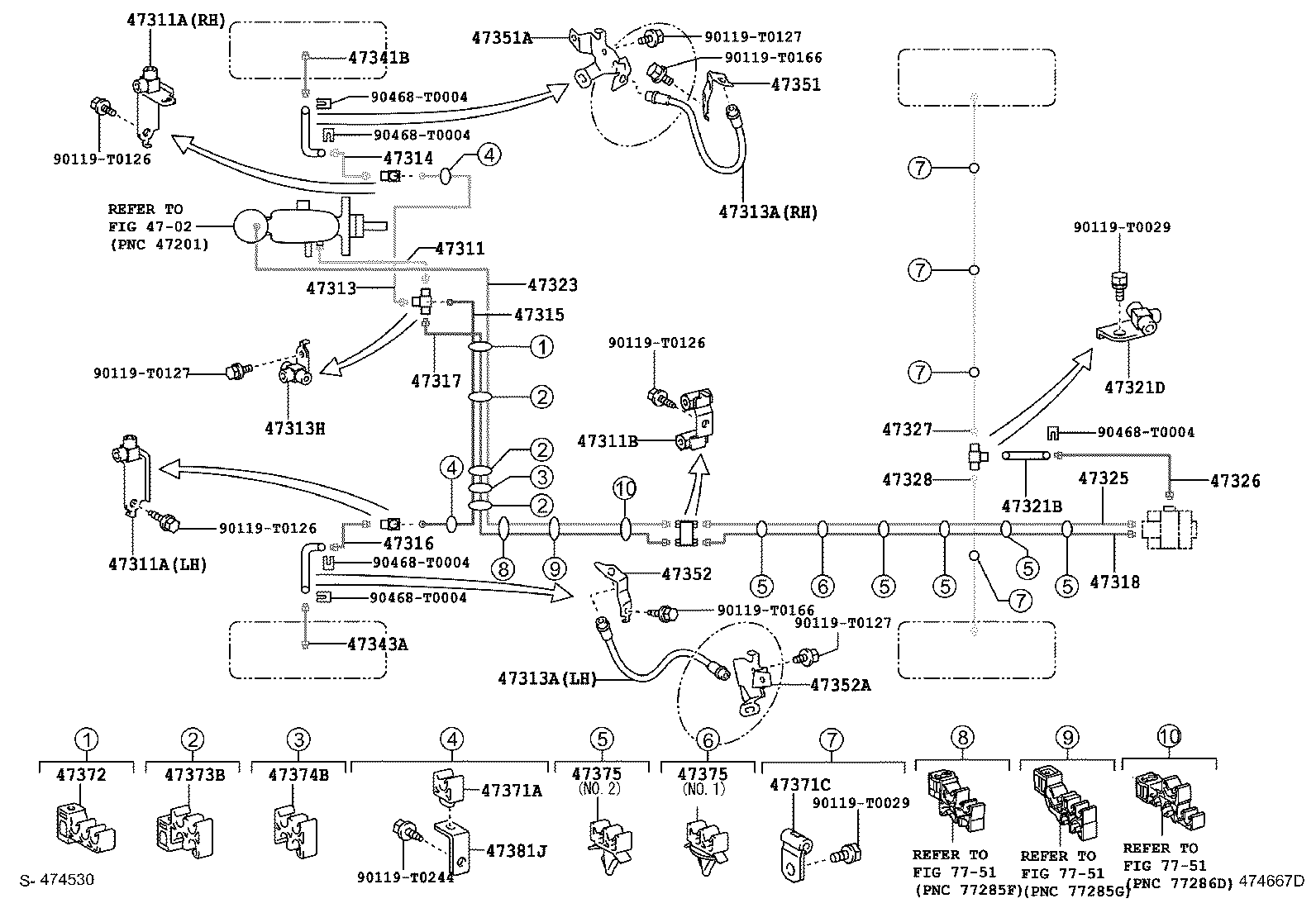

ILLUST NO. 1 OF 3(0507-0810)KUN25..RHD..DCB,SCB..DLX

Click highlighted areas on diagram

diagram 4702 47311 47311A 47311A 47311B 47313 47313A 47313A 47313H 47314 47315 47316 47317 47318 47321B 47321D 47323 47325 47326 47327 47328 47341B 47343A 47351 47351A 47352 47352A 47371A 47371C 47372 47373B 47374B 47375 47375 47381J 7751 7751 7751 90119T0029 90119T0029 90119T0126 90119T0126 90119T0126 90119T0127 90119T0127 90119T0127 90119T0166 90119T0166 90119T0244 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K010

KUN15,2#..RHD..(THDCB,THSCB,XTR)

 1
47311-0K020

KUN15,2#..RHD..(DCB,SCB)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

KUN15,2#..4FC,5F

RH

 1
90412-10252

KUN15,2#..4FC,5F

LH

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10251

KUN15,2#..4FC,5F

RH

 1
90412-10252

KUN15,2#..4FC,5F

LH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253

KUN15,2#..4FC,5F

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K020

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX

 1
47313-0K010

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX..HDCR

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313-0K030

KUN15,25..RHD..(DCB,SCB)..DLX

 1
47313-0K010

KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029

KUN2#..4FC,5F

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029

KUN2#..4FC,5F

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10309

KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
90414-10055

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX

 1
90413-10309

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX..HDCR

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
90414-10055

KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K030

KUN2#..4FC,5F

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K030

KUN15,25..RHD..(DCB,SCB)..DLX

 1
47315-0K020

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX

 1
47315-0K010

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX..HDCR

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47315-0K010

KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K030

KUN2#..4FC,5F

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0K050

KUN15,2#..RHD..(DCB,SCB)

 1
47317-0K010

KUN15,2#..RHD..(THDCB,THSCB,XTR)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0K020

KUN15,2#..4FC,5F

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2015

KUN2#..4FC,5F

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10308

KUN2#..4FC,5F

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K010

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX..HDCR

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47323-0K020

KUN15,25..RHD..(THDCB,THSCB,XTR)..DLX

 1
47323-0K010

KUN15..RHD..XTR..DCR;KUN15,25..RHD..(DCB,SCB)..DLX

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

 1
47323-0K030

KUN15,25..RHD..(DCB,SCB)..DLX

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K020

KUN15,2#..4FC,5F

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-0K021

KUN2#..4FC,5F

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K020

KUN2#..4FC,5F

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K020

KUN2#..4FC,5F

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-0K010

KUN2#..4FC,5F

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-0K010

KUN2#..4FC,5F

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-0K010

KUN2#..4FC,5F

 1
47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1
47353-0K020

KUN2#..4FC,5F

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-0K030

KUN2#..4FC,5F

 1
47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1
47354-0K020

KUN2#..4FC,5F

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011

KUN15,2#..RHD..(4FC,5F)

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001

KUN15,2#..4FC,5F

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1014

KUN15,2#..RHD..(4FC,5F)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1008

KUN15,2#..RHD..(4FC,5F)

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1009

KUN15,2#..RHD..(4FC,5F)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

KUN15,2#..4FC,5F

NO.2

 5
90469-T0007

KUN15,2#..4FC,5F

NO.1

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006

KUN15,2#..4FC,5F

NO.2

 5
90469-T0007

KUN15,2#..4FC,5F

NO.1

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001

KUN15,2#..RHD..(4FC,5F)

 2
Common parts
90119-T0029
90119-T0126
90119-T0127
90119-T0166
90119-T0244
90468-T0004
Linked diagrams
4702
7751
