KUN25R-DRMDHW (2007)

Toyota Hilux

Production Feb 2007 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0808) ; (0808-0810)KUN2#..DCB,SCB,THSCB,XTR..5F ; (0808- )4FC ; (0808-

Click highlighted areas on diagram

4-SPOKE

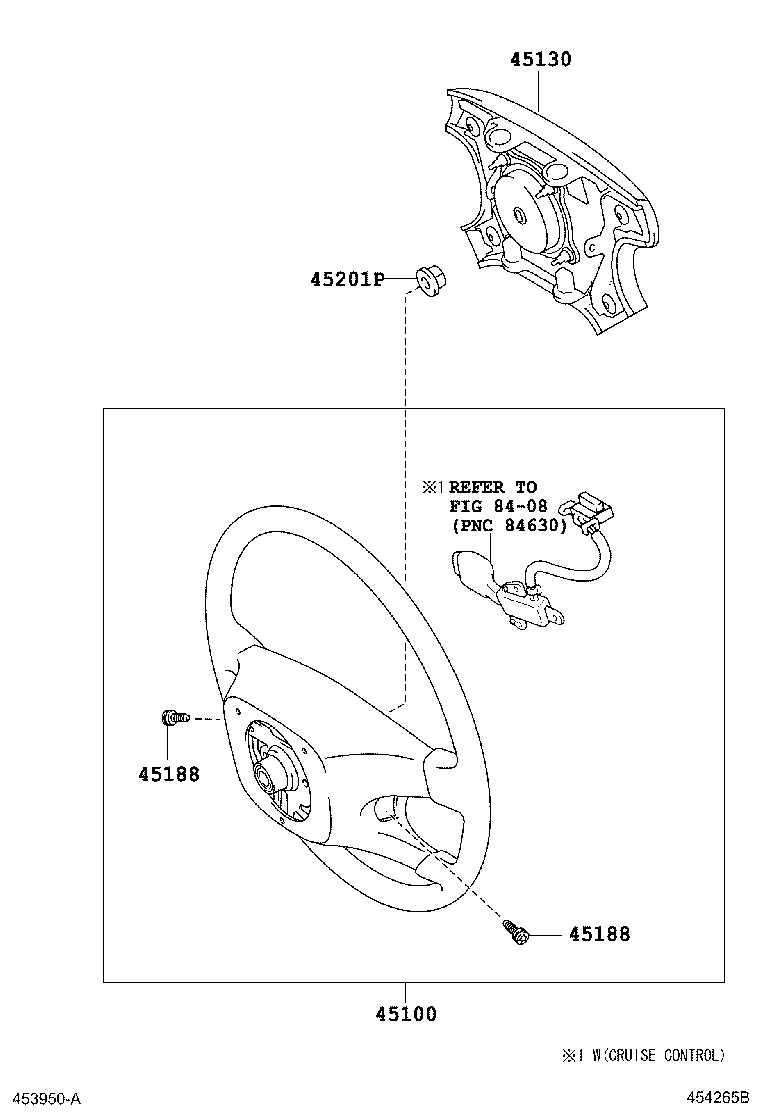

diagram 45100 45130 45188 45188 45201P 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0K020B0

KUN15,2#..(THDCB,THSCB,XTR)..5F

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-0K020B0

KUN15,2#..(THDCB,THSCB,XTR)..5F

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-0K191B0

KUN26..DCB..5F;KUN15,25..DCB,SCB

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-0K191B0

KUN26..DCB..5F;KUN15,25..DCB,SCB

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-0K010B0

KUN15,2#..THDCB,THSCB,XTR

DK.GRAY,TRIM1#

 1
45130-0K010B0

KUN15,2#..THDCB,THSCB,XTR

DK.GRAY,TRIM1#

 1
45130-0K070B0

KUN15,2#..DCB,SCB

DK.GRAY,TRIM1#

 1
45130-0K070B0

KUN15,2#..DCB,SCB

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KUN15,2#..THDCB,THSCB,XTR

L=18

 2
45188-60010

KUN15,2#..THDCB,THSCB,XTR

L=18

 2
45188-0K010

KUN15,2#..DCB,SCB

L=18

 2
45188-0K010

KUN15,2#..DCB,SCB

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KUN15,2#..THDCB,THSCB,XTR

L=18

 2
45188-60010

KUN15,2#..THDCB,THSCB,XTR

L=18

 2
45188-0K010

KUN15,2#..DCB,SCB

L=18

 2
45188-0K010

KUN15,2#..DCB,SCB

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KUN15,2#..4FC,5F

 1
90179-12071

KUN15,2#..4FC,5F

 1
Linked diagrams
8408
