KUN25R-DRMDHW (2007)
Toyota Hilux
(0507-0808) ; (0808-0810)DCB,SCB

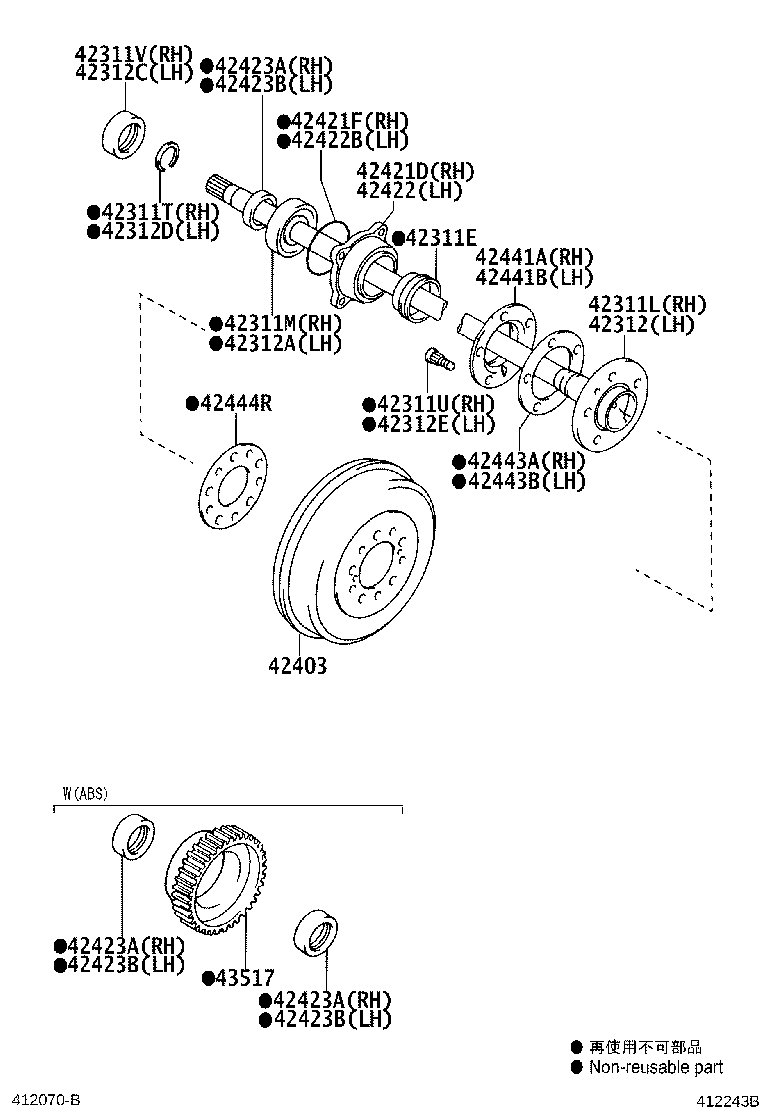

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-T0001 |
KUN15,2#..4FC,5F |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-0K040 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K030 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 42311-0K030 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42311-0K040 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90363-T0009 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90080-36206 |
KUN15,2#..DCB,SCB |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-T0036 |
KUN15,2#..4FC,5F |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
KUN2#..4FC,5F |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-T0006 |
KUN15,2#..4FC,5F |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-0K030 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42311-0K040 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K030 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX |
1 | ||
| 42311-0K040 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42311-0K040 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90080-36206 |
KUN15,2#..DCB,SCB |
1 | ||
| 90363-T0009 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-T0006 |
KUN15,2#..4FC,5F |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-T0036 |
KUN15,2#..4FC,5F |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
KUN2#..4FC,5F |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-0K120 |
KUN2#..THDCB,THSCB,XTR |
2 | ||
| 42431-0K130 |
KUN2#..DCB,SCB |
2 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-0K020 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 42421-34010 |
KUN15,2#..DCB,SCB |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-T0016 |
KUN15,2#..4FC,5F |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-0K020 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 42421-34010 |
KUN15,2#..DCB,SCB |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-T0016 |
KUN15,2#..4FC,5F |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR |
1 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42423-20010 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR |
1 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42423-20010 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR |
1 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42423-20010 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR |
1 | ||
| 42423-20010 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR |
1 | ||
| 42423-20010 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR |
1 | ||
| 42423-20010 |
KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX |
1 | ||
| 42423-20010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42423-20010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR DIFFERENTIAL-WITH(LSD)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-35020 |
KUN2#..4FC,5F |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-35020 |
KUN2#..4FC,5F |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
KUN2#..4FC,5F |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-55020 |
KUN2#..4FC,5F |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35050 |
KUN2#..4FC,5F |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-35010 |
KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX;KUN25..LHD..(DCB,SCB);KUN25..RHD..(DCB,SCB)..DLX ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 43517-35010 |
KUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX..HDCR ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
