KUN25R-DRMDHW (2007)
Toyota Hilux

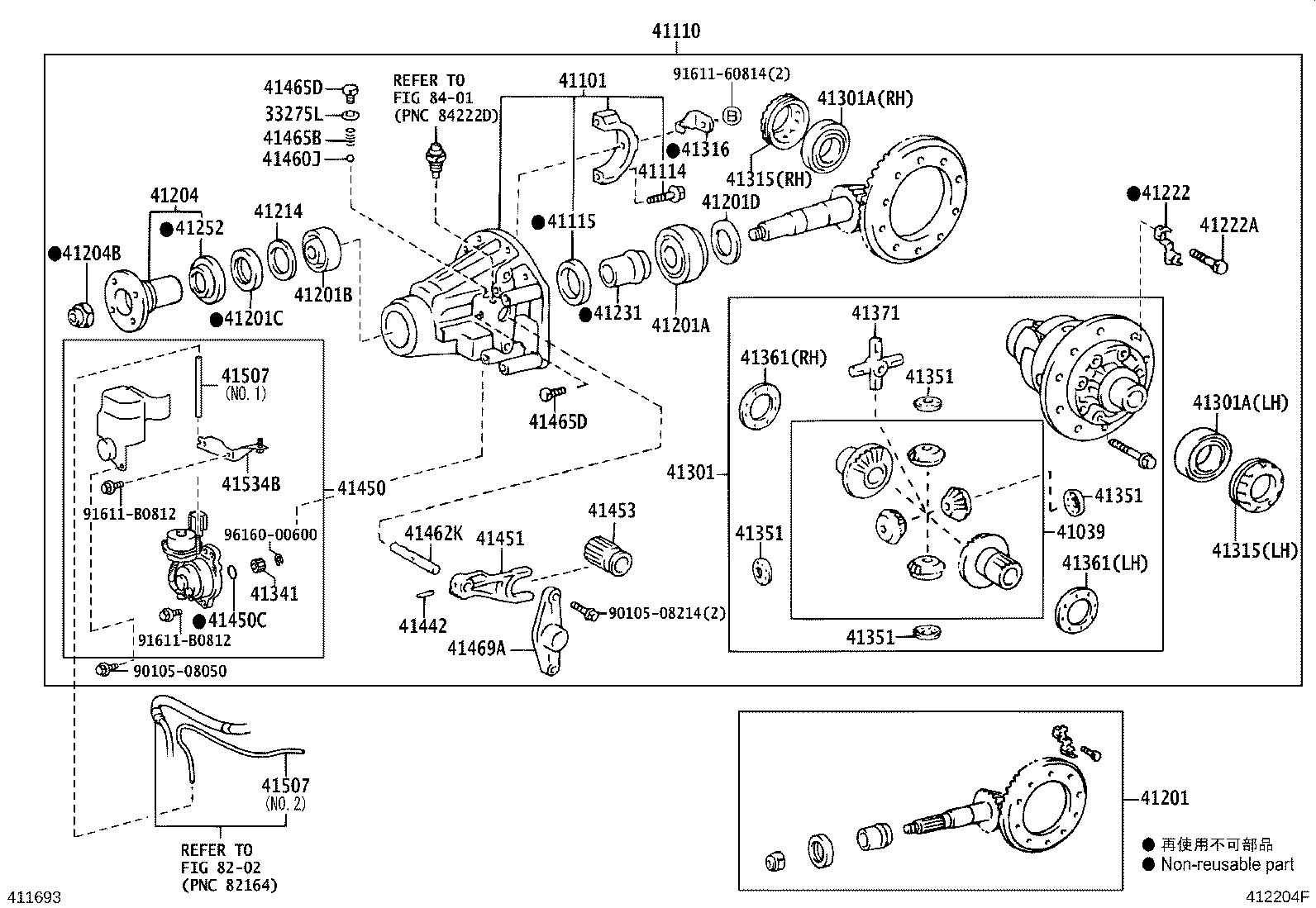

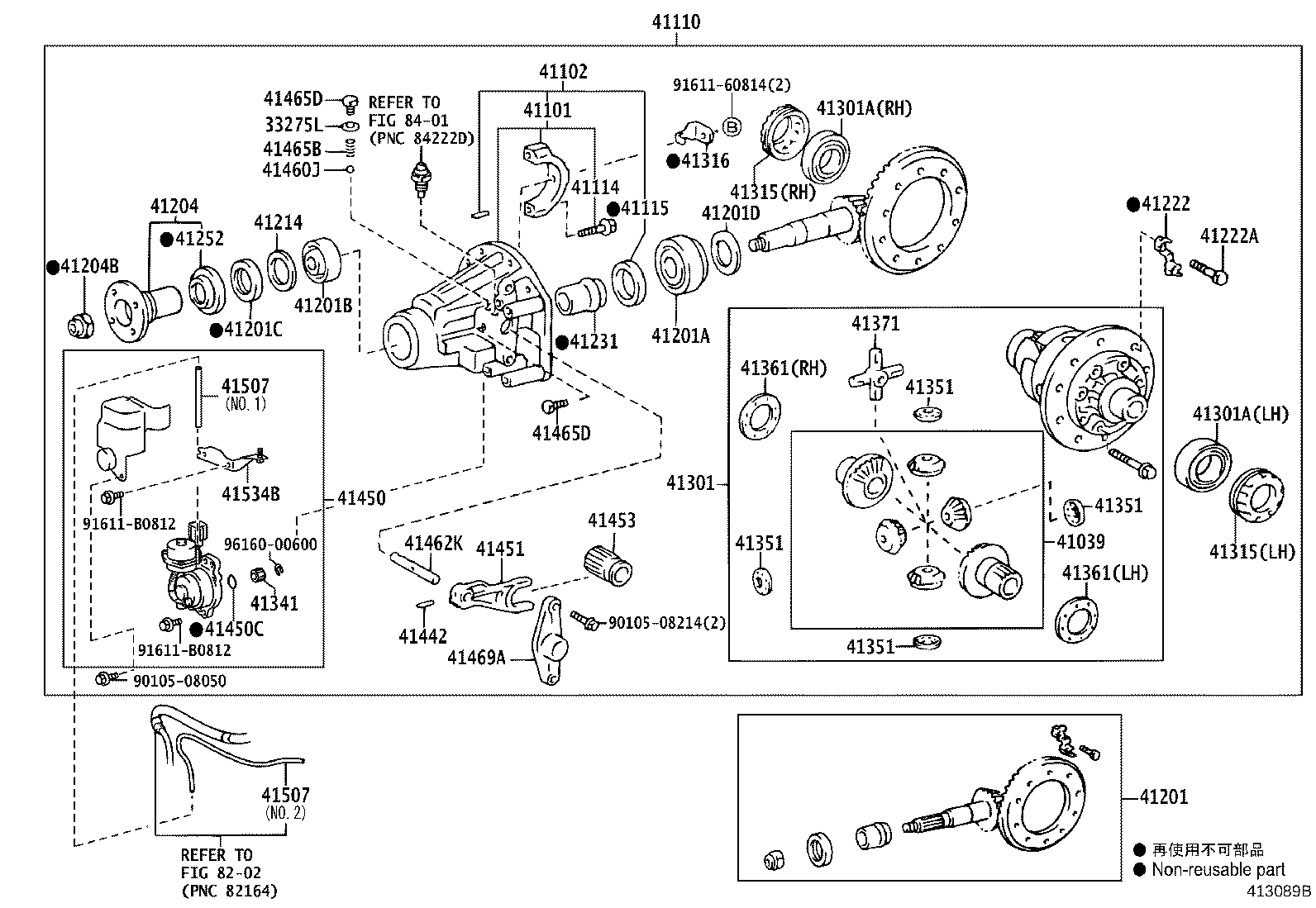

ILLUST NO. 1 OF 2(0507-0707)KUN25
W(REAR DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-71010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41039-34060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41039-34070 |
KUN15,2#..4FC,5F DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41101-35170 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41101-0K040 |
KUN15,2#..DCB,SCB |
1 | ||
| 41101-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K150 |
KUN25..DCB,SCB *FGR=43:11=3.909 |
1 | ||
| 41110-6A340 |
KUN25 *FGR=43:11=3.909,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41110-3D380 |
KUN25..DCB,SCB *FGR=43:11=3.909,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41110-0K030 |
KUN25..THDCB,THSCB,XTR *FGR=43:11=3.909 |
1 | ||
| 41110-0K080 |
KUN25..THDCB,THSCB,XTR *FGR=43:11=3.909,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
KUN15,2#..THDCB,THSCB,XTR |
4 | ||
| 90105-12053 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 90105-12053 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 90080-10301 |
KUN15,2#..DCB,SCB |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41115-35010 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-20103 |
KUN15,2#..DCB,SCB |
1 | ||
| 41115-35010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80178 |
KUN25 *FGR=43:11=3.909,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41201-80177 |
KUN25..DCB,SCB *FGR=43:11=3.909,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41201-79395 |
KUN25..DCB,SCB *FGR=43:11=3.909 |
1 | ||
| 41201-09340 |
KUN25..THDCB,THSCB,XTR *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90080-36216 |
KUN15,2#..DCB,SCB |
1 | ||
| 90366-35087 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90366-35087 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90080-36214 |
KUN15,2#..DCB,SCB |
1 | ||
| 90366-T0013 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90366-30067 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90311-T0013 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90311-41009 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-31109 |
KUN15,2#..DCB,SCB |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90080-56139 |
KUN15,2#..DCB,SCB T=1.40 |
1 | ||
| 90080-56141 |
KUN15,2#..DCB,SCB T=1.35 |
1 | ||
| 90080-56147 |
KUN15,2#..DCB,SCB T=1.19 |
1 | ||
| 90080-56148 |
KUN15,2#..DCB,SCB T=1.17 |
1 | ||
| 90080-56152 |
KUN15,2#..DCB,SCB T=1.07 |
1 | ||
| 90080-56142 |
KUN15,2#..DCB,SCB T=1.32 |
1 | ||
| 90080-56145 |
KUN15,2#..DCB,SCB T=1.24 |
1 | ||
| 90080-56143 |
KUN15,2#..DCB,SCB T=1.30 |
1 | ||
| 90080-56140 |
KUN15,2#..DCB,SCB T=1.37 |
1 | ||
| 90080-56150 |
KUN15,2#..DCB,SCB T=1.12 |
1 | ||
| 90080-56146 |
KUN15,2#..DCB,SCB T=1.22 |
1 | ||
| 90080-56138 |
KUN15,2#..DCB,SCB T=1.42 |
1 | ||
| 90080-56136 |
KUN15,2#..DCB,SCB T=1.47 |
1 | ||
| 90080-56137 |
KUN15,2#..DCB,SCB T=1.45 |
1 | ||
| 90080-56158 |
KUN15,2#..DCB,SCB T=0.91 |
1 | ||
| 90080-56156 |
KUN15,2#..DCB,SCB T=0.97 |
1 | ||
| 90080-56155 |
KUN15,2#..DCB,SCB T=0.99 |
1 | ||
| 90080-56154 |
KUN15,2#..DCB,SCB T=1.02 |
1 | ||
| 90080-56144 |
KUN15,2#..DCB,SCB T=1.27 |
1 | ||
| 90080-56153 |
KUN15,2#..DCB,SCB T=1.04 |
1 | ||
| 90080-56160 |
KUN15,2#..DCB,SCB T=0.86 |
1 | ||
| 90080-56161 |
KUN15,2#..DCB,SCB T=0.84 |
1 | ||
| 90080-56162 |
KUN15,2#..DCB,SCB T=0.81 |
1 | ||
| 90080-56157 |
KUN15,2#..DCB,SCB T=0.94 |
1 | ||
| 90080-56151 |
KUN15,2#..DCB,SCB T=1.09 |
1 | ||
| 90080-56163 |
KUN15,2#..DCB,SCB T=0.79 |
1 | ||
| 90201-35497 |
KUN25 OD=47,T=1.70,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90080-56165 |
KUN15,2#..DCB,SCB T=0.74 |
1 | ||
| 90201-35498 |
KUN25 OD=47,T=1.73,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35500 |
KUN15,2#..DCB,SCB OD=47,T=1.79,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56238 |
KUN15,2#..DCB,SCB T=0.69 |
1 | ||
| 90080-56149 |
KUN15,2#..DCB,SCB T=1.14 |
1 | ||
| 90201-35497 |
KUN15,2#..DCB,SCB OD=47,T=1.70,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35501 |
KUN15,2#..DCB,SCB OD=47,T=1.82,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56166 |
KUN15,2#..DCB,SCB T=0.71 |
1 | ||
| 90201-35499 |
KUN25 OD=47,T=1.76,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35503 |
KUN15,2#..DCB,SCB OD=47,T=1.88,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56164 |
KUN15,2#..DCB,SCB T=0.76 |
1 | ||
| 90201-35501 |
KUN25 OD=47,T=1.82,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35502 |
KUN15,2#..DCB,SCB OD=47,T=1.85,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35499 |
KUN15,2#..DCB,SCB OD=47,T=1.76,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56159 |
KUN15,2#..DCB,SCB T=0.89 |
1 | ||
| 90201-35498 |
KUN15,2#..DCB,SCB OD=47,T=1.73,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35502 |
KUN25 OD=47,T=1.85,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35504 |
KUN25 OD=47,T=1.91,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35503 |
KUN25 OD=47,T=1.88,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35507 |
KUN25 OD=47,T=2.00,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35506 |
KUN15,2#..DCB,SCB OD=47,T=1.97,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35505 |
KUN15,2#..DCB,SCB OD=47,T=1.94,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35509 |
KUN15,2#..DCB,SCB OD=47,T=2.06,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35505 |
KUN25 OD=47,T=1.94,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35508 |
KUN25 OD=47,T=2.03,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35509 |
KUN25 OD=47,T=2.06,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35500 |
KUN25 OD=47,T=1.79,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35508 |
KUN15,2#..DCB,SCB OD=47,T=2.03,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35506 |
KUN25 OD=47,T=1.97,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35511 |
KUN25 OD=47,T=2.12,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35515 |
KUN25 OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35507 |
KUN15,2#..DCB,SCB OD=47,T=2.00,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35512 |
KUN25 OD=47,T=2.15,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35511 |
KUN15,2#..DCB,SCB OD=47,T=2.12,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35513 |
KUN15,2#..DCB,SCB OD=47,T=2.18,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35516 |
KUN15,2#..DCB,SCB OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35510 |
KUN15,2#..DCB,SCB OD=47,T=2.09,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35517 |
KUN25 OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35504 |
KUN15,2#..DCB,SCB OD=47,T=1.91,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35513 |
KUN25 OD=47,T=2.18,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35517 |
KUN15,2#..DCB,SCB OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35512 |
KUN15,2#..DCB,SCB OD=47,T=2.15,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35515 |
KUN15,2#..DCB,SCB OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35516 |
KUN25 OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35518 |
KUN15,2#..DCB,SCB OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35514 |
KUN15,2#..DCB,SCB OD=47,T=2.21,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35518 |
KUN25 OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35510 |
KUN25 OD=47,T=2.09,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35514 |
KUN25 OD=47,T=2.21,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35100 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41204-35100 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41204-0K050 |
KUN15,2#..DCB,SCB |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90080-17204 |
KUN15,2#..DCB,SCB OD=40.2 |
1 | ||
| 90177-22003 |
KUN25..DCB,SCB OD=39.5,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90177-22003 |
KUN15..XTR..DCR;KUN15,2#..DCB,SCB OD=39.5,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90177-22003 |
KUN2#..THDCB,THSCB,XTR;KUN15..(THDCB,THSCB,XTR)..HDCR OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..DCB,SCB DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41214-26011 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41214-26011 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41214-0K030 |
KUN15,2#..DCB,SCB |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
5 | ||
| 41222-35020 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
5 | ||
| 41222-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN25..DCB,SCB DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
10 | ||
| 90101-11353 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
10 | ||
| 90080-10292 |
KUN15,2#..DCB,SCB |
10 | ||
| 90101-11353 |
KUN15,2#..THDCB,THSCB,XTR |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41231-24010 |
KUN25..DCB,SCB DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41231-24010 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41231-0K010 |
KUN15,2#..DCB,SCB |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-0K040 |
KUN15,2#..DCB,SCB |
1 | ||
| 41252-35041 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41252-35041 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41301-60060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41301-0K090 |
KUN15,2#..DCB,SCB |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90366-T0019 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90080-36215 |
KUN15,2#..DCB,SCB |
2 | ||
| 90366-T0010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 90366-75001 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90366-T0019 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90080-36215 |
KUN15,2#..DCB,SCB |
2 | ||
| 90366-T0010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 90366-75001 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41315-35020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41315-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41315-35020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41315-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41316-35010 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41316-35010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35070 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN15,2#..THDCB,THSCB,XTR T=1.80 |
2 | ||
| 41361-0K050 |
KUN15,2#..THDCB,THSCB,XTR T=1.70 |
2 | ||
| 41361-35310 |
KUN25 T=0.9,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K080 |
KUN15,2#..THDCB,THSCB,XTR T=1.85 |
2 | ||
| 41361-35320 |
KUN25 T=1.0,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35161 |
KUN15,2#..4FC,5F T=1.8,DIFFERENTIAL-WITH(LSD) |
6 | ||
| 41361-35340 |
KUN25 T=1.2,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K040 |
KUN15,2#..THDCB,THSCB,XTR T=1.65 |
2 | ||
| 41361-0K020 |
KUN15,2#..THDCB,THSCB,XTR T=1.55 |
2 | ||
| 41361-0K060 |
KUN15,2#..THDCB,THSCB,XTR T=1.75 |
2 | ||
| 41361-0K030 |
KUN15,2#..THDCB,THSCB,XTR T=1.60 |
2 | ||
| 41361-60300 |
KUN25 T=1.00,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60310 |
KUN25 T=1.10,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60290 |
KUN25 T=0.90,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
KUN15,2#..THDCB,THSCB,XTR T=1.90 |
2 | ||
| 41361-35330 |
KUN25 T=1.1,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35350 |
KUN25 T=1.3,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-60330 |
KUN25 T=1.30,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-35291 |
KUN15,2#..4FC,5F T=1.70,MARK N,DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41361-60320 |
KUN25 T=1.20,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN15,2#..THDCB,THSCB,XTR T=1.80 |
2 | ||
| 41361-0K050 |
KUN15,2#..THDCB,THSCB,XTR T=1.70 |
2 | ||
| 41361-35310 |
KUN25 T=0.9,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K080 |
KUN15,2#..THDCB,THSCB,XTR T=1.85 |
2 | ||
| 41361-35320 |
KUN25 T=1.0,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35161 |
KUN15,2#..4FC,5F T=1.8,DIFFERENTIAL-WITH(LSD) |
6 | ||
| 41361-35340 |
KUN25 T=1.2,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K040 |
KUN15,2#..THDCB,THSCB,XTR T=1.65 |
2 | ||
| 41361-0K020 |
KUN15,2#..THDCB,THSCB,XTR T=1.55 |
2 | ||
| 41361-0K060 |
KUN15,2#..THDCB,THSCB,XTR T=1.75 |
2 | ||
| 41361-0K030 |
KUN15,2#..THDCB,THSCB,XTR T=1.60 |
2 | ||
| 41361-60300 |
KUN25 T=1.00,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60310 |
KUN25 T=1.10,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60290 |
KUN25 T=0.90,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
KUN15,2#..THDCB,THSCB,XTR T=1.90 |
2 | ||
| 41361-35330 |
KUN25 T=1.1,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35350 |
KUN25 T=1.3,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-60330 |
KUN25 T=1.30,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-35291 |
KUN15,2#..4FC,5F T=1.70,MARK N,DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41361-60320 |
KUN25 T=1.20,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41371-35020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35030 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-0K020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.2 |
1 | ||
| 41507-35130 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.1 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-0K020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.2 |
1 | ||
| 41507-35130 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.1 |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-35030 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| 91611-B0812 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0707- )KUN25
W(REAR DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-71010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41039-34060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41039-34070 |
KUN15,2#..4FC,5F DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41101-35170 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41101-0K040 |
KUN15,2#..DCB,SCB |
1 | ||
| 41101-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K150 |
KUN25..DCB,SCB *FGR=43:11=3.909 |
1 | ||
| 41110-6A340 |
KUN25 *FGR=43:11=3.909,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41110-3D380 |
KUN25..DCB,SCB *FGR=43:11=3.909,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41110-0K030 |
KUN25..THDCB,THSCB,XTR *FGR=43:11=3.909 |
1 | ||
| 41110-0K080 |
KUN25..THDCB,THSCB,XTR *FGR=43:11=3.909,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
KUN15,2#..THDCB,THSCB,XTR |
4 | ||
| 90105-12053 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 90105-12053 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 90080-10301 |
KUN15,2#..DCB,SCB |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41115-35010 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-20103 |
KUN15,2#..DCB,SCB |
1 | ||
| 41115-35010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80178 |
KUN25 *FGR=43:11=3.909,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41201-80177 |
KUN25..DCB,SCB *FGR=43:11=3.909,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41201-79395 |
KUN25..DCB,SCB *FGR=43:11=3.909 |
1 | ||
| 41201-09340 |
KUN25..THDCB,THSCB,XTR *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90080-36216 |
KUN15,2#..DCB,SCB |
1 | ||
| 90366-35087 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90366-35087 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90080-36214 |
KUN15,2#..DCB,SCB |
1 | ||
| 90366-T0013 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90366-30067 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90311-T0013 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 90311-41009 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-31109 |
KUN15,2#..DCB,SCB |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90080-56139 |
KUN15,2#..DCB,SCB T=1.40 |
1 | ||
| 90080-56141 |
KUN15,2#..DCB,SCB T=1.35 |
1 | ||
| 90080-56147 |
KUN15,2#..DCB,SCB T=1.19 |
1 | ||
| 90080-56148 |
KUN15,2#..DCB,SCB T=1.17 |
1 | ||
| 90080-56152 |
KUN15,2#..DCB,SCB T=1.07 |
1 | ||
| 90080-56142 |
KUN15,2#..DCB,SCB T=1.32 |
1 | ||
| 90080-56145 |
KUN15,2#..DCB,SCB T=1.24 |
1 | ||
| 90080-56143 |
KUN15,2#..DCB,SCB T=1.30 |
1 | ||
| 90080-56140 |
KUN15,2#..DCB,SCB T=1.37 |
1 | ||
| 90080-56150 |
KUN15,2#..DCB,SCB T=1.12 |
1 | ||
| 90080-56146 |
KUN15,2#..DCB,SCB T=1.22 |
1 | ||
| 90080-56138 |
KUN15,2#..DCB,SCB T=1.42 |
1 | ||
| 90080-56136 |
KUN15,2#..DCB,SCB T=1.47 |
1 | ||
| 90080-56137 |
KUN15,2#..DCB,SCB T=1.45 |
1 | ||
| 90080-56158 |
KUN15,2#..DCB,SCB T=0.91 |
1 | ||
| 90080-56156 |
KUN15,2#..DCB,SCB T=0.97 |
1 | ||
| 90080-56155 |
KUN15,2#..DCB,SCB T=0.99 |
1 | ||
| 90080-56154 |
KUN15,2#..DCB,SCB T=1.02 |
1 | ||
| 90080-56144 |
KUN15,2#..DCB,SCB T=1.27 |
1 | ||
| 90080-56153 |
KUN15,2#..DCB,SCB T=1.04 |
1 | ||
| 90080-56160 |
KUN15,2#..DCB,SCB T=0.86 |
1 | ||
| 90080-56161 |
KUN15,2#..DCB,SCB T=0.84 |
1 | ||
| 90080-56162 |
KUN15,2#..DCB,SCB T=0.81 |
1 | ||
| 90080-56157 |
KUN15,2#..DCB,SCB T=0.94 |
1 | ||
| 90080-56151 |
KUN15,2#..DCB,SCB T=1.09 |
1 | ||
| 90080-56163 |
KUN15,2#..DCB,SCB T=0.79 |
1 | ||
| 90201-35497 |
KUN25 OD=47,T=1.70,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90080-56165 |
KUN15,2#..DCB,SCB T=0.74 |
1 | ||
| 90201-35498 |
KUN25 OD=47,T=1.73,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35500 |
KUN15,2#..DCB,SCB OD=47,T=1.79,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56238 |
KUN15,2#..DCB,SCB T=0.69 |
1 | ||
| 90080-56149 |
KUN15,2#..DCB,SCB T=1.14 |
1 | ||
| 90201-35497 |
KUN15,2#..DCB,SCB OD=47,T=1.70,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35501 |
KUN15,2#..DCB,SCB OD=47,T=1.82,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56166 |
KUN15,2#..DCB,SCB T=0.71 |
1 | ||
| 90201-35499 |
KUN25 OD=47,T=1.76,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35503 |
KUN15,2#..DCB,SCB OD=47,T=1.88,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56164 |
KUN15,2#..DCB,SCB T=0.76 |
1 | ||
| 90201-35501 |
KUN25 OD=47,T=1.82,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35502 |
KUN15,2#..DCB,SCB OD=47,T=1.85,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35499 |
KUN15,2#..DCB,SCB OD=47,T=1.76,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90080-56159 |
KUN15,2#..DCB,SCB T=0.89 |
1 | ||
| 90201-35498 |
KUN15,2#..DCB,SCB OD=47,T=1.73,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35502 |
KUN25 OD=47,T=1.85,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35504 |
KUN25 OD=47,T=1.91,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35503 |
KUN25 OD=47,T=1.88,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35507 |
KUN25 OD=47,T=2.00,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35506 |
KUN15,2#..DCB,SCB OD=47,T=1.97,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35505 |
KUN15,2#..DCB,SCB OD=47,T=1.94,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35509 |
KUN15,2#..DCB,SCB OD=47,T=2.06,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35505 |
KUN25 OD=47,T=1.94,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35508 |
KUN25 OD=47,T=2.03,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35509 |
KUN25 OD=47,T=2.06,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35500 |
KUN25 OD=47,T=1.79,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35508 |
KUN15,2#..DCB,SCB OD=47,T=2.03,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35506 |
KUN25 OD=47,T=1.97,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35511 |
KUN25 OD=47,T=2.12,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35515 |
KUN25 OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35507 |
KUN15,2#..DCB,SCB OD=47,T=2.00,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35512 |
KUN25 OD=47,T=2.15,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35511 |
KUN15,2#..DCB,SCB OD=47,T=2.12,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35513 |
KUN15,2#..DCB,SCB OD=47,T=2.18,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35516 |
KUN15,2#..DCB,SCB OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35510 |
KUN15,2#..DCB,SCB OD=47,T=2.09,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35517 |
KUN25 OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35504 |
KUN15,2#..DCB,SCB OD=47,T=1.91,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35513 |
KUN25 OD=47,T=2.18,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35517 |
KUN15,2#..DCB,SCB OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35512 |
KUN15,2#..DCB,SCB OD=47,T=2.15,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35515 |
KUN15,2#..DCB,SCB OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35516 |
KUN25 OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35518 |
KUN15,2#..DCB,SCB OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35514 |
KUN15,2#..DCB,SCB OD=47,T=2.21,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90201-35518 |
KUN25 OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35510 |
KUN25 OD=47,T=2.09,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90201-35514 |
KUN25 OD=47,T=2.21,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35100 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41204-35100 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41204-0K050 |
KUN15,2#..DCB,SCB |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90080-17204 |
KUN15,2#..DCB,SCB OD=40.2 |
1 | ||
| 90177-22003 |
KUN25..DCB,SCB OD=39.5,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 90177-22003 |
KUN15..XTR..DCR;KUN15,2#..DCB,SCB OD=39.5,DIFFERENTIAL-WITH(LSD) |
1 | ||
| 90177-22003 |
KUN2#..THDCB,THSCB,XTR;KUN15..(THDCB,THSCB,XTR)..HDCR OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN25..DCB,SCB DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41214-26011 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41214-26011 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41214-0K030 |
KUN15,2#..DCB,SCB |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
5 | ||
| 41222-35020 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
5 | ||
| 41222-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KUN25..DCB,SCB DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
10 | ||
| 90101-11353 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
10 | ||
| 90080-10292 |
KUN15,2#..DCB,SCB |
10 | ||
| 90101-11353 |
KUN15,2#..THDCB,THSCB,XTR |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41231-24010 |
KUN25..DCB,SCB DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41231-24010 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41231-0K010 |
KUN15,2#..DCB,SCB |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-0K040 |
KUN15,2#..DCB,SCB |
1 | ||
| 41252-35041 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41252-35041 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 41301-60060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41301-0K090 |
KUN15,2#..DCB,SCB |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90366-T0019 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90080-36215 |
KUN15,2#..DCB,SCB |
2 | ||
| 90366-T0010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 90366-75001 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90366-T0019 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
2 | ||
| 90080-36215 |
KUN15,2#..DCB,SCB |
2 | ||
| 90366-T0010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 90366-75001 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41315-35020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41315-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41315-35020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41315-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),LH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41316-35010 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41316-35010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35070 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
4 | ||
| 41351-30060 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41351-0K010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 41351-0K020 |
KUN15,2#..THDCB,THSCB,XTR DIFFERENTIAL-WITH(LSD) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN15,2#..THDCB,THSCB,XTR T=1.80 |
2 | ||
| 41361-0K050 |
KUN15,2#..THDCB,THSCB,XTR T=1.70 |
2 | ||
| 41361-35310 |
KUN25 T=0.9,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K080 |
KUN15,2#..THDCB,THSCB,XTR T=1.85 |
2 | ||
| 41361-35320 |
KUN25 T=1.0,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35161 |
KUN15,2#..4FC,5F T=1.8,DIFFERENTIAL-WITH(LSD) |
6 | ||
| 41361-35340 |
KUN25 T=1.2,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K040 |
KUN15,2#..THDCB,THSCB,XTR T=1.65 |
2 | ||
| 41361-0K020 |
KUN15,2#..THDCB,THSCB,XTR T=1.55 |
2 | ||
| 41361-0K060 |
KUN15,2#..THDCB,THSCB,XTR T=1.75 |
2 | ||
| 41361-0K030 |
KUN15,2#..THDCB,THSCB,XTR T=1.60 |
2 | ||
| 41361-60300 |
KUN25 T=1.00,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60310 |
KUN25 T=1.10,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60290 |
KUN25 T=0.90,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
KUN15,2#..THDCB,THSCB,XTR T=1.90 |
2 | ||
| 41361-35330 |
KUN25 T=1.1,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35350 |
KUN25 T=1.3,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-60330 |
KUN25 T=1.30,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-35291 |
KUN15,2#..4FC,5F T=1.70,MARK N,DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41361-60320 |
KUN25 T=1.20,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K070 |
KUN15,2#..THDCB,THSCB,XTR T=1.80 |
2 | ||
| 41361-0K050 |
KUN15,2#..THDCB,THSCB,XTR T=1.70 |
2 | ||
| 41361-35310 |
KUN25 T=0.9,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K080 |
KUN15,2#..THDCB,THSCB,XTR T=1.85 |
2 | ||
| 41361-35320 |
KUN25 T=1.0,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35161 |
KUN15,2#..4FC,5F T=1.8,DIFFERENTIAL-WITH(LSD) |
6 | ||
| 41361-35340 |
KUN25 T=1.2,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-0K040 |
KUN15,2#..THDCB,THSCB,XTR T=1.65 |
2 | ||
| 41361-0K020 |
KUN15,2#..THDCB,THSCB,XTR T=1.55 |
2 | ||
| 41361-0K060 |
KUN15,2#..THDCB,THSCB,XTR T=1.75 |
2 | ||
| 41361-0K030 |
KUN15,2#..THDCB,THSCB,XTR T=1.60 |
2 | ||
| 41361-60300 |
KUN25 T=1.00,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60310 |
KUN25 T=1.10,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-60290 |
KUN25 T=0.90,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
KUN15,2#..THDCB,THSCB,XTR T=1.90 |
2 | ||
| 41361-35330 |
KUN25 T=1.1,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-35350 |
KUN25 T=1.3,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH,ID=46 |
1 | ||
| 41361-60330 |
KUN25 T=1.30,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41361-35291 |
KUN15,2#..4FC,5F T=1.70,MARK N,DIFFERENTIAL-WITH(LSD) |
2 | ||
| 41361-60320 |
KUN25 T=1.20,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),RH & LH,ID=54 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
KUN15,2#..DCB,SCB DIFFERENTIAL-WITH(LSD) |
1 | ||
| 41371-35020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35030 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-0K020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.2 |
1 | ||
| 41507-35130 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.1 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-0K020 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.2 |
1 | ||
| 41507-35130 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK),NO.1 |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-35030 |
KUN25 DIFFERENTIAL-WITH(DIFFERENTIAL LOCK) |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| 91611-B0812 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
