KUN25R-DRMDHW (2007)

Toyota Hilux

Production Feb 2007 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0808)KUN2#..5F

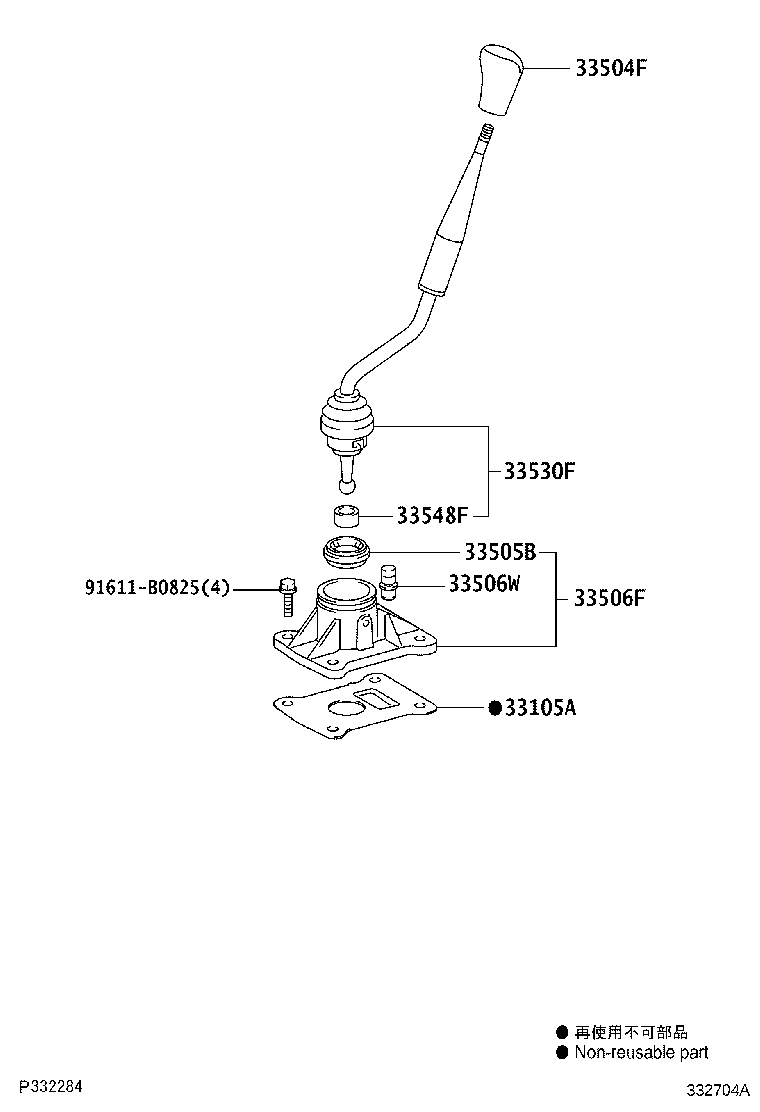

Click highlighted areas on diagram

diagram 33105A 33504F 33505B 33506F 33506W 33530F 33548F 91611B0825
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33144-35030

KUN2#..(DCB,SCB)..5F

TYPE C:REFER 33-01

 1
33144-35030

KUN2#..(THDCB,THSCB,XTR)..5F

TYPE B:REFER 33-01

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D050B0

KUN15,2#..(THDCB,THSCB,XTR)..5F

DK.GRAY,TRIM1#

 1
33504-02070B0

KUN15,2#..(DCB,SCB)..5F

DK.GRAY,TRIM1#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

KUN26..THDCB..5F;KUN15,25..(THDCB,THSCB,XTR)..HDCR

TYPE B:REFER 33-01

 1
33505-35030

KUN2#..(DCB,SCB)..5F

TYPE C:REFER 33-01

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-0K020

KUN2#..(THDCB,THSCB,XTR)..5F

TYPE B:REFER 33-01

 1
33506-0K010

KUN2#..(DCB,SCB)..5F

TYPE C:REFER 33-01

 1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075

KUN2#..(THDCB,THSCB,XTR)..5F

TYPE B:REFER 33-01

 1
90930-03075

KUN2#..(DCB,SCB)..5F

TYPE C:REFER 33-01

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K140

KUN25..RHD

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010

KUN2#..5F;KUN15..RHD..DCR;KUN15..DLX..HDCR;KUN15..LHD..XTR..DCR

 1
Common parts
91611-B0825
