KUN25R-DRMDHW (2007)

Toyota Hilux

Production Feb 2007 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )1KDFTV,2KDFTV..KUN15,26..THDCB,THSCB,XTR ; (0610-0810)1KDFTV,2KDFTV..DCB

Click highlighted areas on diagram

12V 80A

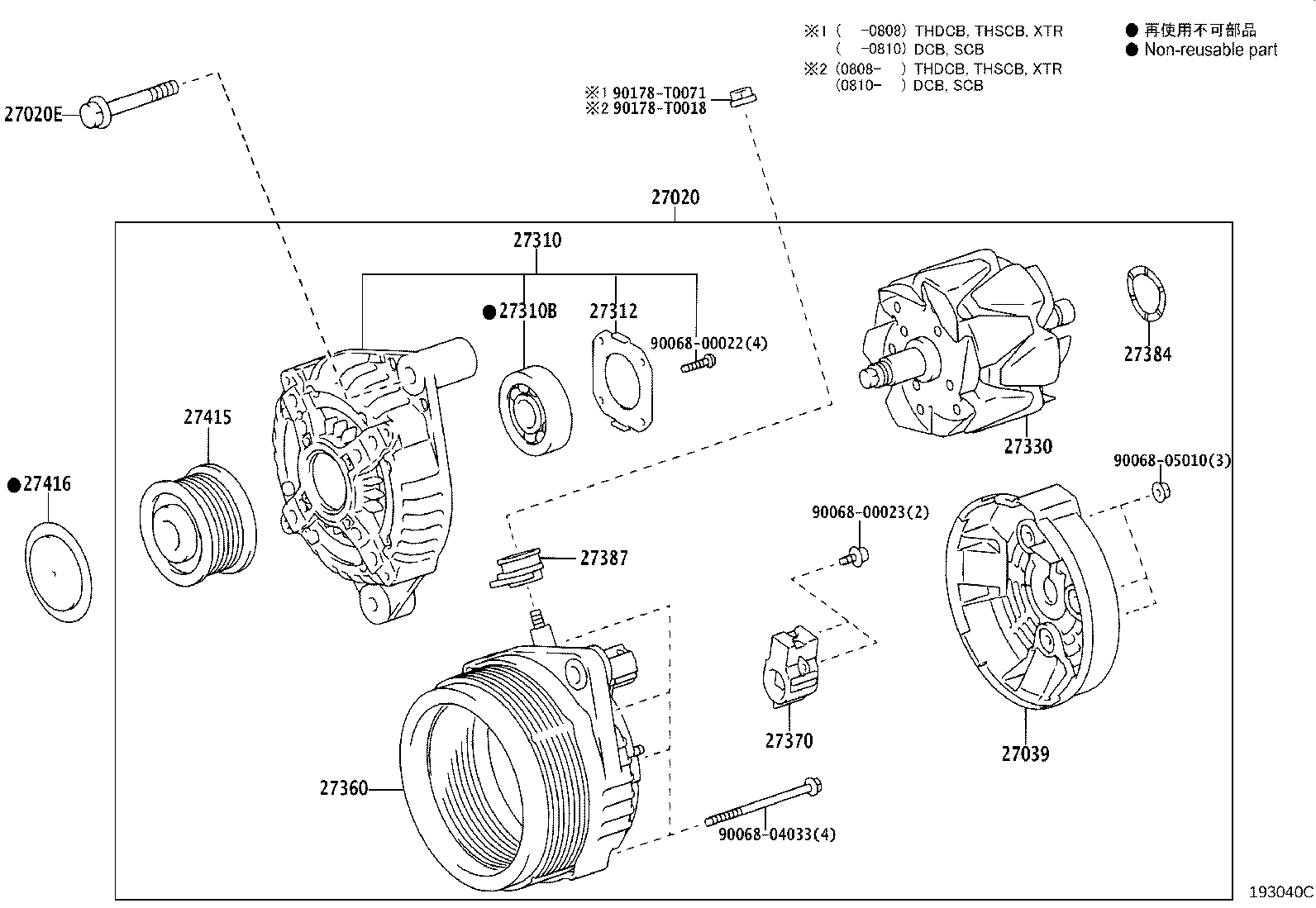

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9006800022 9006800023 9006804033 9006805010 90178T0018 90178T0071
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0L050

2KDFTV..KUN15,25..DCB,SCB

12V 70A

 1
27060-0L050

2KDFTV..KUN15,25..DCB,SCB

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10092

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 1
90105-10092

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0L050

2KDFTV..KUN15,25..DCB,SCB

 1
27330-0L050

2KDFTV..KUN15,25..DCB,SCB

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0L020

2KDFTV..KUN15,25..DCB,SCB

 1
27415-0L020

2KDFTV..KUN15,25..DCB,SCB

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0L020

2KDFTV..KUN15,25..DCB,SCB

 1
27416-0L020

2KDFTV..KUN15,25..DCB,SCB

 1
Common parts
90068-00022
90068-00023
90068-04033
90068-05010
90178-T0018
90178-T0071
