KUN25R-CRMDHW (2011)
Toyota Hilux

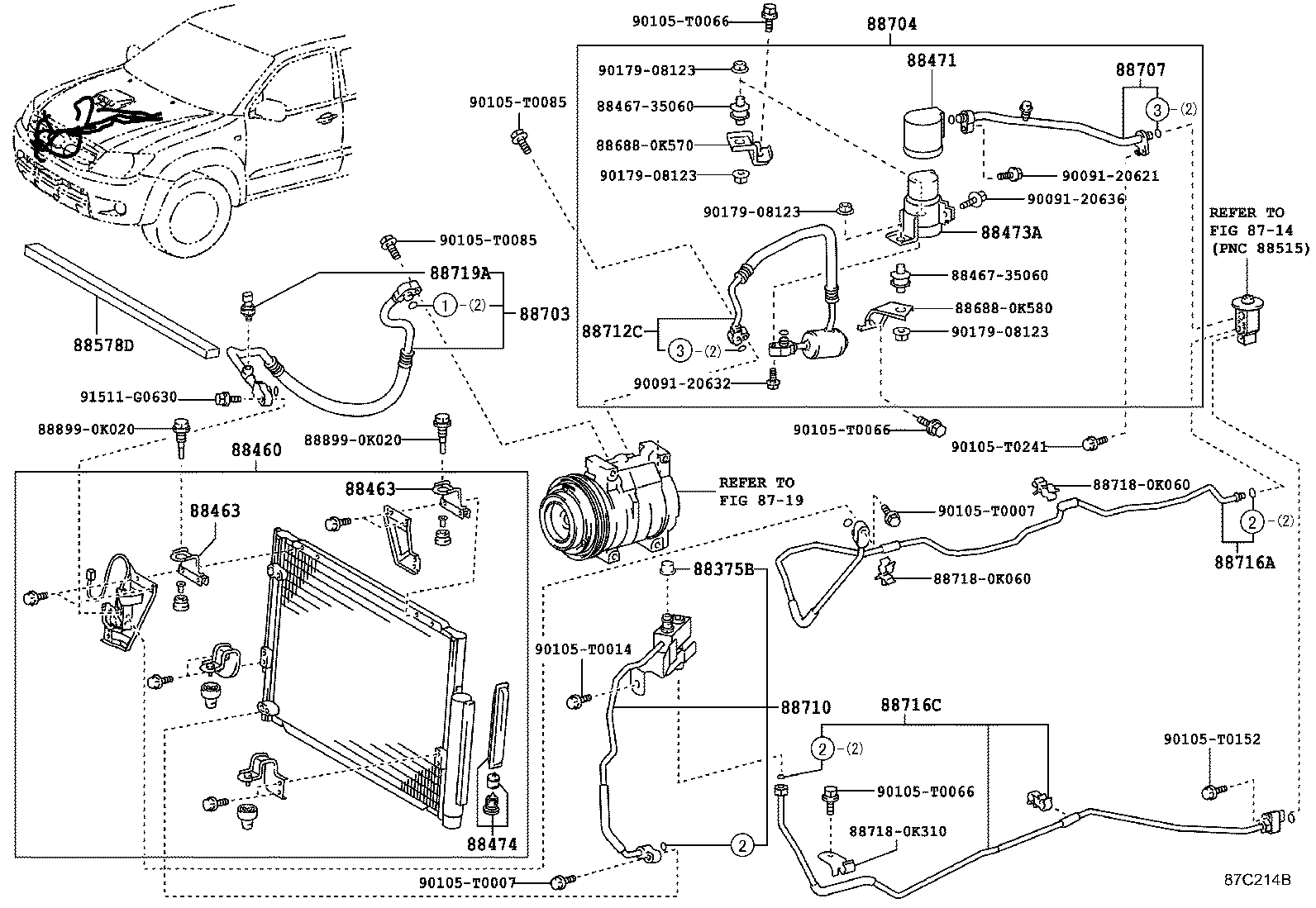

ILLUST NO. 1 OF 2(1107- )RHD..XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KUN25..RHD..XTR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K050 |
KUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
KUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K020 |
KUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-0K010 |
KUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-0K020 |
KUN25..RHD..XTR |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K790 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-0K250 |
KUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K662 |
KUN25..RHD..XTR |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88717-0KE20 |
KUN25..RHD..XTR |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K020 |
KUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-0K890 |
KUN25..RHD..XTR |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0K151 |
KUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-0KD11 |
KUN25..RHD..XTR |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
KUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR |
1 | ||
| Common parts | ||||
| 88467-35060 | ||||
| 88688-0K570 | ||||
| 88688-0K580 | ||||
| 88718-0K060 | ||||
| 88718-0K310 | ||||
| 88899-0K020 | ||||
| 90091-20621 | ||||
| 90091-20632 | ||||
| 90091-20636 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0152 | ||||
| 90105-T0241 | ||||
| 90179-08123 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(1107- )THDCB,THSCB,XTR
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
