KUN25R-CRMDHW (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )RHD

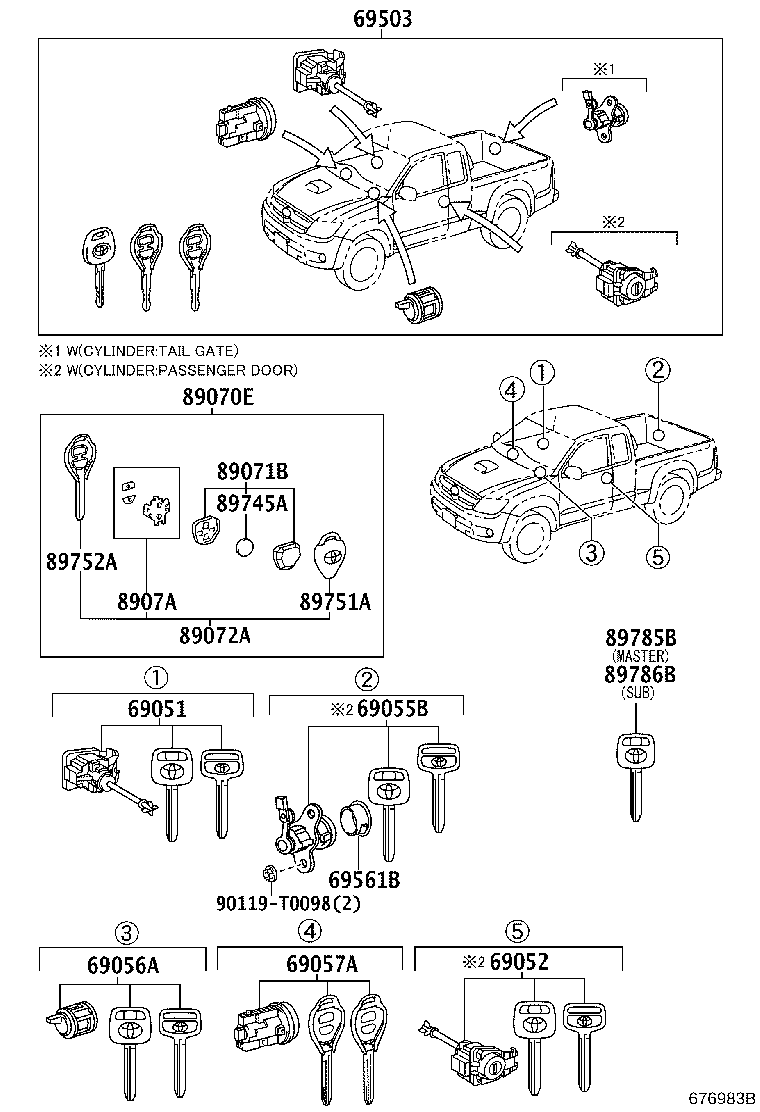

Click highlighted areas on diagram

diagram 69051 69052 69055B 69056A 69057A 69503 69561B 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89785B 89786B 90119T0098
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0K011

KUN2#,35

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0K010

KUN2#,35

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-0K040

KUN2#,35..(DCB,THDCB,XTR)..CBU

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-0K010

KUN2#,35

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0K052

KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DCB..DLX;KUN25..RHD..(SCB,XTR);KUN25,35..(DCB,THDCB,XTR)..SR

 1
69503 - CYLINDER SET, LOCK
69005-0K500

KUN2#..RHD..(DCB,XTR)

 1
69561B - RETAINER, BACK DOOR LOCK CYLINDER
69561-0K901

KUN2#,35..(DCB,THDCB,XTR)..CBU

(L)

 1
69561-33900

KUN2#,35..(DCB,THDCB,XTR)..CBU

(J)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0K670

KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DCB..DLX;KUN25..RHD..(SCB,XTR);KUN25,35..(DCB,THDCB,XTR)..SR

 1
89070-0K671

KUN25..RHD..XTR;KUN2#,35..(THDCB,XTR)..SR

REFER84-20:PNC 89741

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-71051

KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DCB..DLX;KUN25..RHD..(SCB,XTR);KUN25,35..(DCB,THDCB,XTR)..SR

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0K341

KUN25..RHD..XTR;KUN2#,35..(THDCB,XTR)..SR

REFER84-20:PNC 89741

 1
89072-0K340

KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DCB..DLX;KUN25..RHD..(SCB,XTR);KUN25,35..(DCB,THDCB,XTR)..SR

 1
8907A - SWITCH SET, TRANSMITTER
8907A-71010

KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DCB..DLX;KUN25..RHD..(SCB,XTR);KUN25,35..(DCB,THDCB,XTR)..SR

 1
89745A - BATTERY, TRANSMITTER
89745-71010

KUN2#..RHD

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52140

KUN2#..RHD

 1
89752A - CASE, TRANSMITTER HOUSING
89752-0K070

KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..(DCB,XTR)..DLX;KUN25,35..(DCB,THDCB,XTR)..SR

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-08040

KUN2#,35

BLANK KEY

 1
Common parts
90119-T0098
