KUN25R-CRMDHW (2008)
Toyota Hilux

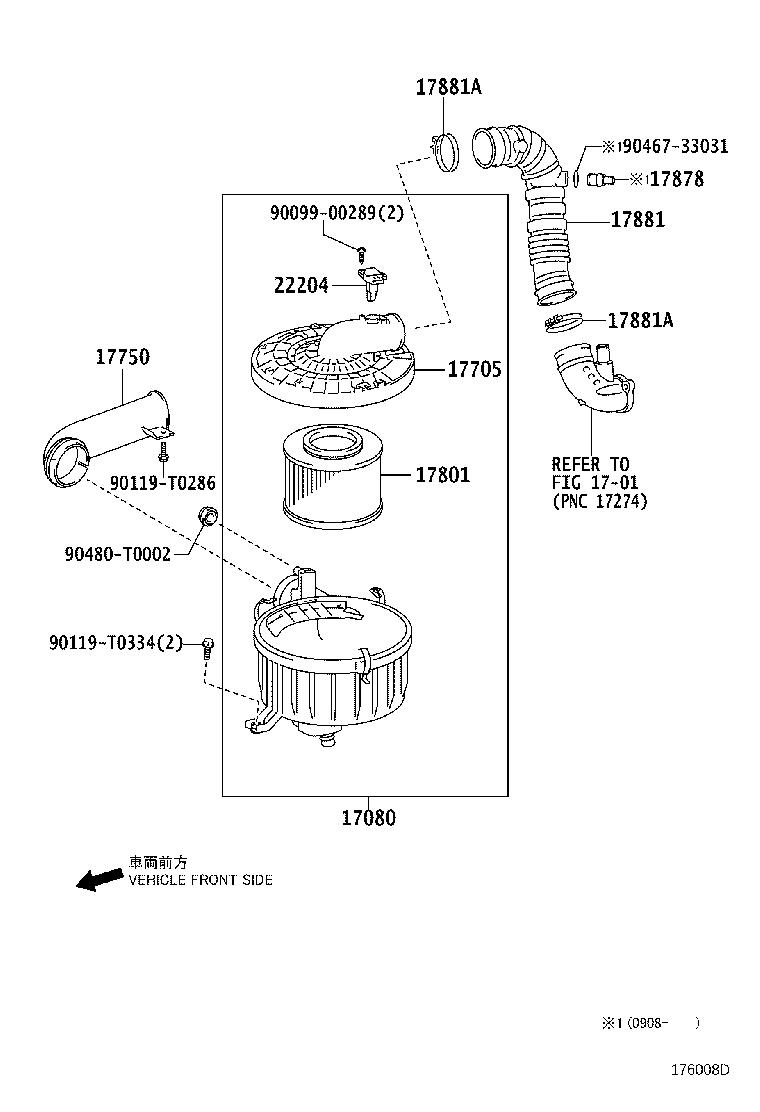

ILLUST NO. 1 OF 2(0808- )1KDFTV..THDCB ; (0908- )2KDFTV..KUN25..THDCB,THSCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L080 |
2KDFTV..KUN15,25..XTR |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L100 |
2KDFTV..KUN15,25..XTR |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L010 |
2KDFTV..KUN25..XTR |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L110 |
2KDFTV..KUN15,25..THDCB,THSCB,XTR |
1 | ||
| 17881-0L080 |
2KDFTV..KUN15,25 |
1 | ||
| 17881-0L170 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..XTR NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..XTR NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN15,25..THDCB,THSCB,XTR |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..XTR NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..XTR NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN15,25..THDCB,THSCB,XTR |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90467-33031 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||

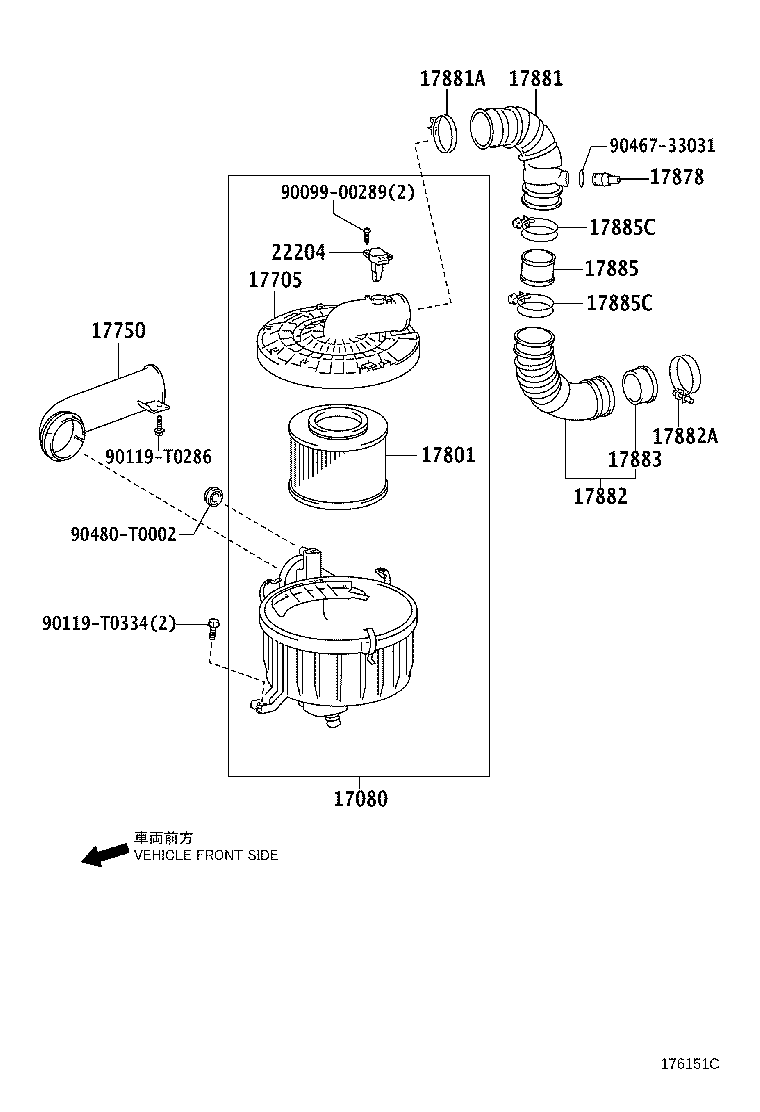

ILLUST NO. 1 OF 2(0809-0908)2KDFTV..THDCB,THSCB,XTR ; (0908- )2KDFTV..KUN15..THDCB,THSCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L080 |
2KDFTV..KUN15,25..XTR |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L100 |
2KDFTV..KUN15,25..XTR |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L010 |
2KDFTV..KUN25..XTR |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L110 |
2KDFTV..KUN15,25..THDCB,THSCB,XTR |
1 | ||
| 17881-0L080 |
2KDFTV..KUN15,25 |
1 | ||
| 17881-0L170 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..XTR NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..XTR NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN15,25..THDCB,THSCB,XTR |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0L010 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-T0004 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0L010 |
2KDFTV..KUN25..XTR |
1 | ||
| 17883-0L010 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-30050 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10830 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10830 |
2KDFTV..KUN25..THDCB,THSCB,XTR |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90467-33031 | ||||
| 90480-T0002 | ||||
ILLUST NO. 2 OF 2(0809- )2KDFTV..THDCB,THSCB,XTR ; (0810- )2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L030 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30010 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| 91671-B0816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
