KUN25L-TRMSHW (2011)
Toyota Hilux
(1108-1310)KUN26..DCB..SR ; (1108-1310)KUN25,35..DCB,SCB

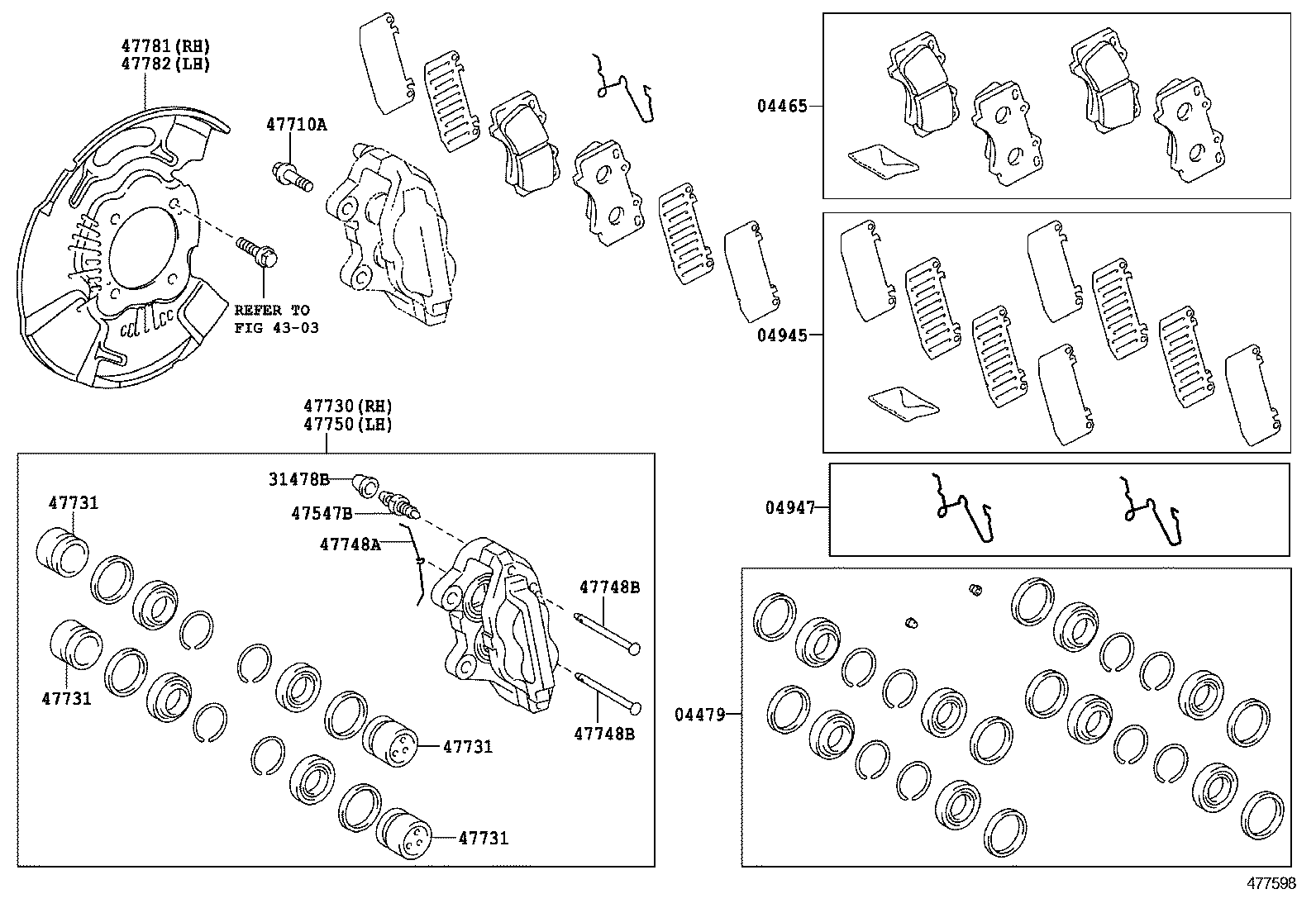

TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K240 |
KUN26..DCB..SR;KUN25,35..DCB,SCB MARK ADVICS PS558H,TYPE C:REFER ILLUST. |
1 | ||
| 04465-0K340 |
KUN26..DCB..SR;KUN25,35..DCB,SCB MARK ADVICS PS558H,TYPE D:REFER ILLUST. |
1 | ||
| 04465-35290 |
KUN26..DCB..SR;KUN25,35..DCB,SCB MARK SUMITOMO PS558H,TYPE B:REFER ILLUST. |
1 | ||
| 04465-35290 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX MARK SUMITOMO PS558H,VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-0K110 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 04478-0K130 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 04478-60050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 04478-60050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K210 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 04945-35120 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 04945-35120 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 04945-0K240 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 04947-0K040 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 04947-35050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 04947-35050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
2 | ||
| 31478-0K030 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
2 | ||
| 31478-30010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 31478-30010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 90069-0K072 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
2 | ||
| 47547-20030 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 47547-35020 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
2 | ||
| 47547-35020 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12175 |
KUN2#,35 *12-1.25PX35-27 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K190 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 47730-71010 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 47730-0K180 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 47730-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90069-49009 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90069-0K071 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
4 | ||
| 90240-06014 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90069-0K071 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
4 | ||
| 90240-06014 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K180 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 47750-0K190 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 47750-71010 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 47750-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,PNC 47730=TYPE B |
1 | ||
| 47781-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC47730=TYPE C OR D |
1 | ||
| 47781-0K050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC 47730=TYPE B |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,PNC 47750=TYPE B |
1 | ||
| 47782-0K050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC 47750=TYPE B |
1 | ||
| 47782-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC47750=TYPE C OR D |
1 | ||
| Linked diagrams | ||||
| 4303 | ||||
(1111- )FLD ; (1201- )THDCB,THSCB,XTR..EUR; (1310- )KUN26..DCB..SR ; (131
TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K240 |
KUN26..DCB..SR;KUN25,35..DCB,SCB MARK ADVICS PS558H,TYPE C:REFER ILLUST. |
1 | ||
| 04465-0K340 |
KUN26..DCB..SR;KUN25,35..DCB,SCB MARK ADVICS PS558H,TYPE D:REFER ILLUST. |
1 | ||
| 04465-35290 |
KUN26..DCB..SR;KUN25,35..DCB,SCB MARK SUMITOMO PS558H,TYPE B:REFER ILLUST. |
1 | ||
| 04465-35290 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX MARK SUMITOMO PS558H,VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-0K110 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 04478-0K130 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 04478-60050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 04478-60050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K210 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 04945-35120 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 04945-35120 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 04945-0K240 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 04947-0K040 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 04947-35050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 04947-35050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
2 | ||
| 31478-0K030 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
2 | ||
| 31478-30010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 31478-30010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 90069-0K072 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
2 | ||
| 47547-20030 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 47547-35020 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
2 | ||
| 47547-35020 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12175 |
KUN2#,35 *12-1.25PX35-27 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K190 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 47730-71010 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 47730-0K180 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 47730-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-0K060 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47731-35040 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
8 | ||
| 47731-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-48044 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-48044 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-48044 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-48044 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
8 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-0K190 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-0K190 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90069-0K071 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
4 | ||
| 90240-06014 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90069-0K071 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
4 | ||
| 90240-06158 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
4 | ||
| 90240-06014 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
4 | ||
| 47748C - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-60280 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K180 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE C:REFER ILLUST. |
1 | ||
| 47750-0K190 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE D:REFER ILLUST. |
1 | ||
| 47750-71010 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,TYPE B:REFER ILLUST. |
1 | ||
| 47750-71010 |
KUN26..DCB..SR;KUN25,35..DCB,SCB TYPE B:REFER ILLUST. |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,PNC 47730=TYPE B |
1 | ||
| 47781-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC47730=TYPE C OR D |
1 | ||
| 47781-0K050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC 47730=TYPE B |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K050 |
KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH,PNC 47750=TYPE B |
1 | ||
| 47782-0K050 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC 47750=TYPE B |
1 | ||
| 47782-0K070 |
KUN26..DCB..SR;KUN25,35..DCB,SCB PNC47750=TYPE C OR D |
1 | ||
| Linked diagrams | ||||
| 4303 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
