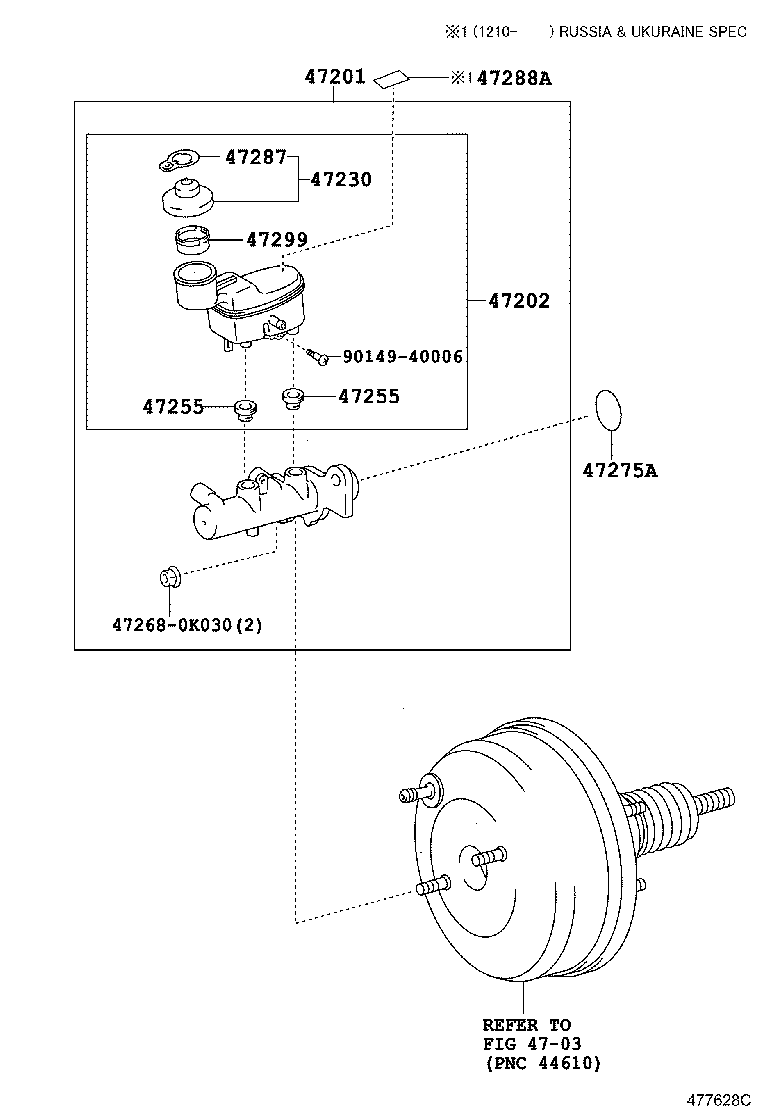

Toyota Hilux KUN25 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09210	KUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)	08/2011 - 10/2013	1
47201-0K040	KUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)	10/2013 - 10/2014	1
47201-0K172	KUN35..SCB..SR;KUN25..DCB..IV3;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX VSC-WITH	10/2013 - 10/2014	1
47201-0K172	KUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)	10/2014 - 12/2015	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-09080	KUN25,35..DCB,SCB;KUN26..DCB..5F..SR	08/2011 - 10/2013	1
47220-0K020	KUN25,35..DCB,SCB;KUN26..DCB..5F..SR	10/2013 - 10/2014	1
47220-0K090	KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH	10/2013 - 10/2014	1
47220-0K090	KUN25,35..DCB,SCB;KUN26..DCB..5F..SR	10/2014 - 12/2015	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-0K010	KUN2#,35	07/2011 - 02/2015	1
47230-0K011	KUN2#,35	02/2015 - 08/2015	1
47230-0D221	KUN2#,35	08/2015 - 12/2015	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT001	KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH	10/2013 - 10/2014	2
47255-16010	KUN26..DCB..SR;KUN25,35..DCB,SCB	07/2011 - 10/2014	2
90016-AT001	KUN26..DCB..SR;KUN25,35..DCB,SCB	10/2014 - 12/2015	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT001	KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH	10/2013 - 10/2014	2
47255-16010	KUN26..DCB..SR;KUN25,35..DCB,SCB	07/2011 - 10/2014	2
90016-AT001	KUN26..DCB..SR;KUN25,35..DCB,SCB	10/2014 - 12/2015	2
47275A - SEAL, MASTER CYLINDER
47275-02010	KUN26..DCB..SR;KUN25,35..DCB,SCB	08/2011 - 10/2013	1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-02360	KUN2#,35	08/2015 - 12/2015	1
47287-20010	KUN2#,35	07/2011 - 08/2015	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-0K010	KUN2#,35	07/2011 - 12/2015	1
Common parts
47268-0K030
90149-40006
Linked diagrams
4703

KUN25L-TRMSHW (2011)

(1107-1310)KUN26..DCB..SR ; (1107-1310)KUN25,35..DCB,SCB
