KUN25L-TRMSHW (2011)
Toyota Hilux

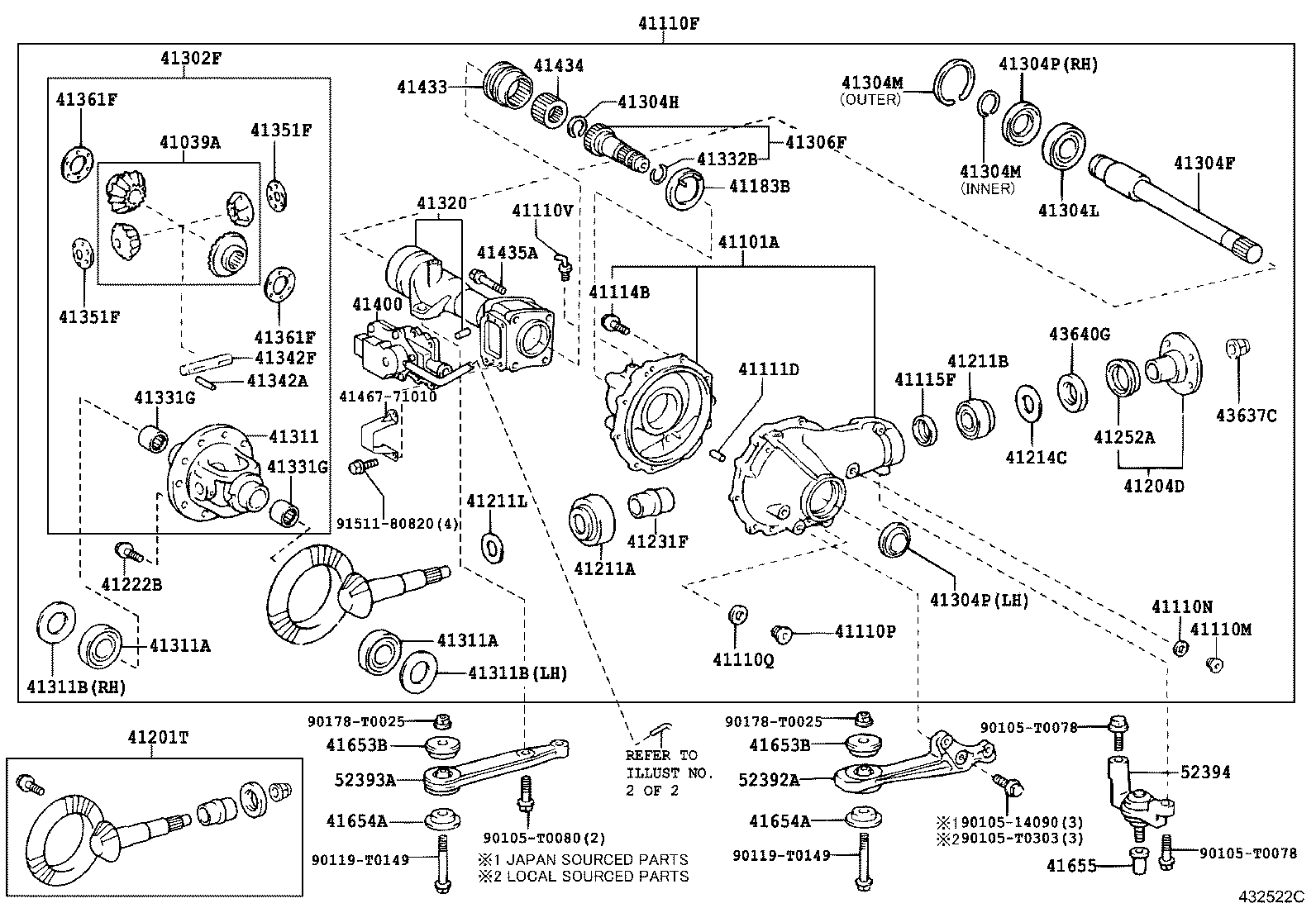

ILLUST NO. 1 OF 2(1108- )KUN2#..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-35010 |
KUN2#..DCB,SCB TYPE A:REFER 43-02 |
1 | ||
| 41039-71040 |
KUN2#..DCB,SCB TYPE B:REFER 43-02 |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-71010 |
KUN2#..DCB,SCB TYPE A:REFER 43-02 |
1 | ||
| 41101-71020 |
KUN2#..DCB,SCB TYPE B:REFER 43-02 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-71350 |
KUN25..DCB,SCB;KUN26..DCB..5FC *FGR=41:11=3.727,TYPE A:REFER 43-02 |
1 | ||
| 41110-71351 |
KUN25..DCB,SCB;KUN26..DCB..5FC *FGR=41:11=3.727,TYPE B:REFER 43-02 |
1 | ||
| 41110-71353 |
KUN25;KUN26..5FC *FGR=41:11=3.727 |
1 | ||
| 41110-71352 |
KUN25..DCB,SCB;KUN26..DCB..5FC *FGR=41:11=3.727 |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-18066 |
KUN2#..DCB,SCB |
1 | ||
| 90341-18032 |
KUN2#..DCB,SCB |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
KUN2# |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-24014 |
KUN2#..DCB,SCB |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 90430-24003 |
KUN2# |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-08004 |
KUN2# |
1 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
KUN2#..DCB,SCB |
2 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-10391 |
KUN2#..DCB,SCB (J) |
10 | ||
| 90105-T0101 |
KUN2#..DCB,SCB (L) |
10 | ||
| 90105-10391 |
KUN2#..DCB,SCB |
10 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
KUN2#..DCB,SCB |
1 | ||
| 41183B - DEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER | ||||
| 41183-35040 |
KUN2#..DCB,SCB |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-79555 |
KUN25;KUN26..5FC *FGR=41:11=3.727 |
1 | ||
| 41201-80327 |
KUN25;KUN26..5FC *FGR=41:11=3.727 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-71030 |
KUN2#..DCB,SCB |
1 | ||
| 41204-35110 |
KUN2#..DCB,SCB |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35087 |
KUN2#..DCB,SCB |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30067 |
KUN2#..DCB,SCB |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35110 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.73 |
1 | ||
| 90564-35109 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.70 |
1 | ||
| 90564-35111 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.76 |
1 | ||
| 90564-35117 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.94 |
1 | ||
| 90564-35119 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.00 |
1 | ||
| 90564-35112 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.79 |
1 | ||
| 90564-35115 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.88 |
1 | ||
| 90564-35121 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.06 |
1 | ||
| 90564-35120 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.03 |
1 | ||
| 90564-35116 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.91 |
1 | ||
| 90564-35118 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.97 |
1 | ||
| 90564-35114 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.85 |
1 | ||
| 90564-35123 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.09 |
1 | ||
| 90564-35128 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.24 |
1 | ||
| 90564-35124 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.12 |
1 | ||
| 90564-35127 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.21 |
1 | ||
| 90564-35125 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.15 |
1 | ||
| 90564-35129 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.27 |
1 | ||
| 90564-35130 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.30 |
1 | ||
| 90564-35113 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=1.82 |
1 | ||
| 90564-35126 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.18 |
1 | ||
| 90564-35131 |
KUN2#..DCB,SCB;KUN26..THDCB..5F OD=52,T=2.33 |
1 | ||
| 90201-35498 |
KUN2# OD=47,T=1.73,OD=47 |
1 | ||
| 90201-35501 |
KUN2# OD=47,T=1.82,OD=47 |
1 | ||
| 90201-35497 |
KUN2# OD=47,T=1.70,OD=47 |
1 | ||
| 90201-35504 |
KUN2# OD=47,T=1.91,OD=47 |
1 | ||
| 90201-35499 |
KUN2# OD=47,T=1.76,OD=47 |
1 | ||
| 90201-35506 |
KUN2# OD=47,T=1.97,OD=47 |
1 | ||
| 90201-35505 |
KUN2# OD=47,T=1.94,OD=47 |
1 | ||
| 90201-35508 |
KUN2# OD=47,T=2.03,OD=47 |
1 | ||
| 90201-35512 |
KUN2# OD=47,T=2.15,OD=47 |
1 | ||
| 90201-35507 |
KUN2# OD=47,T=2.00,OD=47 |
1 | ||
| 90201-35502 |
KUN2# OD=47,T=1.85,OD=47 |
1 | ||
| 90201-35500 |
KUN2# OD=47,T=1.79,OD=47 |
1 | ||
| 90201-35503 |
KUN2# OD=47,T=1.88,OD=47 |
1 | ||
| 90201-35513 |
KUN2# OD=47,T=2.18,OD=47 |
1 | ||
| 90201-35514 |
KUN2# OD=47,T=2.21,OD=47 |
1 | ||
| 90201-35515 |
KUN2# OD=47,T=2.24,MARK 01,OD=47 |
1 | ||
| 90201-35511 |
KUN2# OD=47,T=2.12,OD=47 |
1 | ||
| 90201-35517 |
KUN2# OD=47,T=2.30,MARK 03,OD=47 |
1 | ||
| 90564-35111 |
KUN2# OD=52,T=1.76,OD=52 |
1 | ||
| 90564-35114 |
KUN2# OD=52,T=1.85,OD=52 |
1 | ||
| 90564-35113 |
KUN2# OD=52,T=1.82,OD=52 |
1 | ||
| 90564-35112 |
KUN2# OD=52,T=1.79,OD=52 |
1 | ||
| 90201-35518 |
KUN2# OD=47,T=2.33,MARK 04,OD=47 |
1 | ||
| 90564-35117 |
KUN2# OD=52,T=1.94,OD=52 |
1 | ||
| 90564-35110 |
KUN2# OD=52,T=1.73,OD=52 |
1 | ||
| 90201-35510 |
KUN2# OD=47,T=2.09,OD=47 |
1 | ||
| 90564-35119 |
KUN2# OD=52,T=2.00,OD=52 |
1 | ||
| 90564-35109 |
KUN2# OD=52,T=1.70,OD=52 |
1 | ||
| 90564-35120 |
KUN2# OD=52,T=2.03,OD=52 |
1 | ||
| 90201-35509 |
KUN2# OD=47,T=2.06,OD=47 |
1 | ||
| 90564-35123 |
KUN2# OD=52,T=2.09,OD=52 |
1 | ||
| 90564-35115 |
KUN2# OD=52,T=1.88,OD=52 |
1 | ||
| 90564-35124 |
KUN2# OD=52,T=2.12,OD=52 |
1 | ||
| 90201-35516 |
KUN2# OD=47,T=2.27,MARK 02,OD=47 |
1 | ||
| 90564-35118 |
KUN2# OD=52,T=1.97,OD=52 |
1 | ||
| 90564-35129 |
KUN2# OD=52,T=2.27,OD=52 |
1 | ||
| 90564-35121 |
KUN2# OD=52,T=2.06,OD=52 |
1 | ||
| 90564-35130 |
KUN2# OD=52,T=2.30,OD=52 |
1 | ||
| 90564-35125 |
KUN2# OD=52,T=2.15,OD=52 |
1 | ||
| 90564-35127 |
KUN2# OD=52,T=2.21,OD=52 |
1 | ||
| 90564-35116 |
KUN2# OD=52,T=1.91,OD=52 |
1 | ||
| 90564-35128 |
KUN2# OD=52,T=2.24,OD=52 |
1 | ||
| 90564-35126 |
KUN2# OD=52,T=2.18,OD=52 |
1 | ||
| 90564-35131 |
KUN2# OD=52,T=2.33,OD=52 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
KUN2# |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
KUN2#..DCB,SCB |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35040 |
KUN2# |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-71030 |
KUN2#..DCB,SCB |
1 | ||
| 41252-35050 |
KUN2#..DCB,SCB |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-71050 |
KUN2#..DCB,SCB |
1 | ||
| 41301-71010 |
KUN2#..DCB,SCB |
1 | ||
| 41301-71051 |
KUN2# |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41337-35060 |
KUN2# |
1 | ||
| 41304H - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-31011 |
KUN2#..DCB,SCB |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90363-T0014 |
KUN2# |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
KUN2#..DCB,SCB INNER |
1 | ||
| 90520-75002 |
KUN2#..DCB,SCB OUTER |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
KUN2#..DCB,SCB INNER |
1 | ||
| 90520-75002 |
KUN2#..DCB,SCB OUTER |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47021 |
KUN2#..DCB,SCB RH |
1 | ||
| 90311-47024 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47028 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47030 |
KUN2#..DCB,SCB RH |
1 | ||
| 90311-47037 |
KUN2#..DCB,SCB RH |
1 | ||
| 90311-47020 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47036 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47025 |
KUN2#..DCB,SCB RH |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47021 |
KUN2#..DCB,SCB RH |
1 | ||
| 90311-47024 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47028 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47030 |
KUN2#..DCB,SCB RH |
1 | ||
| 90311-47037 |
KUN2#..DCB,SCB RH |
1 | ||
| 90311-47020 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47036 |
KUN2#..DCB,SCB LH |
1 | ||
| 90311-47025 |
KUN2#..DCB,SCB RH |
1 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-35050 |
KUN2#..DCB,SCB |
1 | ||
| 41306-35060 |
KUN2# |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-71010 |
KUN2#..DCB,SCB |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-53004 |
KUN2#..DCB,SCB |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-53004 |
KUN2#..DCB,SCB |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50223 |
KUN2# T=2.16,RH |
1 | ||
| 90564-50130 |
KUN2# T=1.78,LH |
1 | ||
| 90564-50128 |
KUN2# T=1.72,LH |
1 | ||
| 90564-50138 |
KUN2# T=2.02,LH |
1 | ||
| 90564-50136 |
KUN2# T=1.96,LH |
1 | ||
| 90564-50132 |
KUN2# T=1.84,LH |
1 | ||
| 90564-50140 |
KUN2# T=2.08,LH |
1 | ||
| 90564-50154 |
KUN2# T=1.60,RH |
1 | ||
| 90564-50168 |
KUN2# T=2.02,RH |
1 | ||
| 90564-50170 |
KUN2# T=2.08,RH |
1 | ||
| 90564-50126 |
KUN2# T=1.66,LH |
1 | ||
| 90564-50134 |
KUN2# T=1.90,LH |
1 | ||
| 90564-50158 |
KUN2# T=1.72,RH |
1 | ||
| 90564-50142 |
KUN2# T=2.14,LH |
1 | ||
| 90564-50186 |
KUN2# T=1.64,LH |
1 | ||
| 90564-50156 |
KUN2# T=1.66,RH |
1 | ||
| 90564-50172 |
KUN2# T=2.14,RH |
1 | ||
| 90564-50164 |
KUN2# T=1.90,RH |
1 | ||
| 90564-50166 |
KUN2# T=1.96,RH |
1 | ||
| 90564-50124 |
KUN2# T=1.60,LH |
1 | ||
| 90564-50160 |
KUN2# T=1.78,RH |
1 | ||
| 90564-50184 |
KUN2# T=1.58,LH |
1 | ||
| 90564-50188 |
KUN2# T=1.70,LH |
1 | ||
| 90564-50189 |
KUN2# T=1.74,LH |
1 | ||
| 90564-50190 |
KUN2# T=1.76,LH |
1 | ||
| 90564-50162 |
KUN2# T=1.84,RH |
1 | ||
| 90564-50194 |
KUN2# T=1.88,LH |
1 | ||
| 90564-50191 |
KUN2# T=1.80,LH |
1 | ||
| 90564-50203 |
KUN2# T=2.16,LH |
1 | ||
| 90564-50193 |
KUN2# T=1.86,LH |
1 | ||
| 90564-50198 |
KUN2# T=2.00,LH |
1 | ||
| 90564-50202 |
KUN2# T=2.12,LH |
1 | ||
| 90564-50204 |
KUN2# T=1.58,RH |
1 | ||
| 90564-50185 |
KUN2# T=1.62,LH |
1 | ||
| 90564-50192 |
KUN2# T=1.82,LH |
1 | ||
| 90564-50196 |
KUN2# T=1.94,LH |
1 | ||
| 90564-50187 |
KUN2# T=1.68,LH |
1 | ||
| 90564-50195 |
KUN2# T=1.92,LH |
1 | ||
| 90564-50197 |
KUN2# T=1.98,LH |
1 | ||
| 90564-50201 |
KUN2# T=2.10,LH |
1 | ||
| 90564-50200 |
KUN2# T=2.06,LH |
1 | ||
| 90564-50213 |
KUN2# T=1.86,RH |
1 | ||
| 90564-50199 |
KUN2# T=2.04,LH |
1 | ||
| 90564-50212 |
KUN2# T=1.82,RH |
1 | ||
| 90564-50206 |
KUN2# T=1.64,RH |
1 | ||
| 90564-50210 |
KUN2# T=1.76,RH |
1 | ||
| 90564-50208 |
KUN2# T=1.70,RH |
1 | ||
| 90564-50214 |
KUN2# T=1.88,RH |
1 | ||
| 90564-50211 |
KUN2# T=1.80,RH |
1 | ||
| 90564-50207 |
KUN2# T=1.68,RH |
1 | ||
| 90564-50217 |
KUN2# T=1.98,RH |
1 | ||
| 90564-50218 |
KUN2# T=2.00,RH |
1 | ||
| 90564-50219 |
KUN2# T=2.04,RH |
1 | ||
| 90564-50222 |
KUN2# T=2.12,RH |
1 | ||
| 90564-50205 |
KUN2# T=1.62,RH |
1 | ||
| 90564-50220 |
KUN2# T=2.06,RH |
1 | ||
| 90564-50229 |
KUN2#..DCB,SCB T=1.54,RH |
1 | ||
| 90564-50234 |
KUN2#..DCB,SCB T=2.24,LH |
1 | ||
| 90564-50231 |
KUN2#..DCB,SCB T=2.18,LH |
1 | ||
| 90564-50230 |
KUN2#..DCB,SCB T=1.56,RH |
1 | ||
| 90564-50225 |
KUN2#..DCB,SCB T=1.46,RH |
1 | ||
| 90564-50226 |
KUN2#..DCB,SCB T=1.48,RH |
1 | ||
| 90564-50237 |
KUN2#..DCB,SCB T=2.30,LH |
1 | ||
| 90564-50233 |
KUN2#..DCB,SCB T=2.22,LH |
1 | ||
| 90564-50216 |
KUN2# T=1.94,RH |
1 | ||
| 90564-50236 |
KUN2#..DCB,SCB T=2.28,LH |
1 | ||
| 90564-50221 |
KUN2# T=2.10,RH |
1 | ||
| 90564-50232 |
KUN2#..DCB,SCB T=2.20,LH |
1 | ||
| 90564-50224 |
KUN2#..DCB,SCB T=1.44,RH |
1 | ||
| 90564-50215 |
KUN2# T=1.92,RH |
1 | ||
| 90564-50235 |
KUN2#..DCB,SCB T=2.26,LH |
1 | ||
| 90564-50209 |
KUN2# T=1.74,RH |
1 | ||
| 90564-50228 |
KUN2#..DCB,SCB T=1.52,RH |
1 | ||
| 90564-50227 |
KUN2#..DCB,SCB T=1.50,RH |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50223 |
KUN2# T=2.16,RH |
1 | ||
| 90564-50130 |
KUN2# T=1.78,LH |
1 | ||
| 90564-50128 |
KUN2# T=1.72,LH |
1 | ||
| 90564-50138 |
KUN2# T=2.02,LH |
1 | ||
| 90564-50136 |
KUN2# T=1.96,LH |
1 | ||
| 90564-50132 |
KUN2# T=1.84,LH |
1 | ||
| 90564-50140 |
KUN2# T=2.08,LH |
1 | ||
| 90564-50154 |
KUN2# T=1.60,RH |
1 | ||
| 90564-50168 |
KUN2# T=2.02,RH |
1 | ||
| 90564-50170 |
KUN2# T=2.08,RH |
1 | ||
| 90564-50126 |
KUN2# T=1.66,LH |
1 | ||
| 90564-50134 |
KUN2# T=1.90,LH |
1 | ||
| 90564-50158 |
KUN2# T=1.72,RH |
1 | ||
| 90564-50142 |
KUN2# T=2.14,LH |
1 | ||
| 90564-50186 |
KUN2# T=1.64,LH |
1 | ||
| 90564-50156 |
KUN2# T=1.66,RH |
1 | ||
| 90564-50172 |
KUN2# T=2.14,RH |
1 | ||
| 90564-50164 |
KUN2# T=1.90,RH |
1 | ||
| 90564-50166 |
KUN2# T=1.96,RH |
1 | ||
| 90564-50124 |
KUN2# T=1.60,LH |
1 | ||
| 90564-50160 |
KUN2# T=1.78,RH |
1 | ||
| 90564-50184 |
KUN2# T=1.58,LH |
1 | ||
| 90564-50188 |
KUN2# T=1.70,LH |
1 | ||
| 90564-50189 |
KUN2# T=1.74,LH |
1 | ||
| 90564-50190 |
KUN2# T=1.76,LH |
1 | ||
| 90564-50162 |
KUN2# T=1.84,RH |
1 | ||
| 90564-50194 |
KUN2# T=1.88,LH |
1 | ||
| 90564-50191 |
KUN2# T=1.80,LH |
1 | ||
| 90564-50203 |
KUN2# T=2.16,LH |
1 | ||
| 90564-50193 |
KUN2# T=1.86,LH |
1 | ||
| 90564-50198 |
KUN2# T=2.00,LH |
1 | ||
| 90564-50202 |
KUN2# T=2.12,LH |
1 | ||
| 90564-50204 |
KUN2# T=1.58,RH |
1 | ||
| 90564-50185 |
KUN2# T=1.62,LH |
1 | ||
| 90564-50192 |
KUN2# T=1.82,LH |
1 | ||
| 90564-50196 |
KUN2# T=1.94,LH |
1 | ||
| 90564-50187 |
KUN2# T=1.68,LH |
1 | ||
| 90564-50195 |
KUN2# T=1.92,LH |
1 | ||
| 90564-50197 |
KUN2# T=1.98,LH |
1 | ||
| 90564-50201 |
KUN2# T=2.10,LH |
1 | ||
| 90564-50200 |
KUN2# T=2.06,LH |
1 | ||
| 90564-50213 |
KUN2# T=1.86,RH |
1 | ||
| 90564-50199 |
KUN2# T=2.04,LH |
1 | ||
| 90564-50212 |
KUN2# T=1.82,RH |
1 | ||
| 90564-50206 |
KUN2# T=1.64,RH |
1 | ||
| 90564-50210 |
KUN2# T=1.76,RH |
1 | ||
| 90564-50208 |
KUN2# T=1.70,RH |
1 | ||
| 90564-50214 |
KUN2# T=1.88,RH |
1 | ||
| 90564-50211 |
KUN2# T=1.80,RH |
1 | ||
| 90564-50207 |
KUN2# T=1.68,RH |
1 | ||
| 90564-50217 |
KUN2# T=1.98,RH |
1 | ||
| 90564-50218 |
KUN2# T=2.00,RH |
1 | ||
| 90564-50219 |
KUN2# T=2.04,RH |
1 | ||
| 90564-50222 |
KUN2# T=2.12,RH |
1 | ||
| 90564-50205 |
KUN2# T=1.62,RH |
1 | ||
| 90564-50220 |
KUN2# T=2.06,RH |
1 | ||
| 90564-50229 |
KUN2#..DCB,SCB T=1.54,RH |
1 | ||
| 90564-50234 |
KUN2#..DCB,SCB T=2.24,LH |
1 | ||
| 90564-50231 |
KUN2#..DCB,SCB T=2.18,LH |
1 | ||
| 90564-50230 |
KUN2#..DCB,SCB T=1.56,RH |
1 | ||
| 90564-50225 |
KUN2#..DCB,SCB T=1.46,RH |
1 | ||
| 90564-50226 |
KUN2#..DCB,SCB T=1.48,RH |
1 | ||
| 90564-50237 |
KUN2#..DCB,SCB T=2.30,LH |
1 | ||
| 90564-50233 |
KUN2#..DCB,SCB T=2.22,LH |
1 | ||
| 90564-50216 |
KUN2# T=1.94,RH |
1 | ||
| 90564-50236 |
KUN2#..DCB,SCB T=2.28,LH |
1 | ||
| 90564-50221 |
KUN2# T=2.10,RH |
1 | ||
| 90564-50232 |
KUN2#..DCB,SCB T=2.20,LH |
1 | ||
| 90564-50224 |
KUN2#..DCB,SCB T=1.44,RH |
1 | ||
| 90564-50215 |
KUN2# T=1.92,RH |
1 | ||
| 90564-50235 |
KUN2#..DCB,SCB T=2.26,LH |
1 | ||
| 90564-50209 |
KUN2# T=1.74,RH |
1 | ||
| 90564-50228 |
KUN2#..DCB,SCB T=1.52,RH |
1 | ||
| 90564-50227 |
KUN2#..DCB,SCB T=1.50,RH |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-71010 |
KUN2#..DCB,SCB TYPE B:REFER 43-02 |
1 | ||
| 41320-35050 |
KUN2#..DCB,SCB TYPE A:REFER 43-02 |
1 | ||
| 41331G - BEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR | ||||
| 90364-35010 |
KUN2#..DCB,SCB |
2 | ||
| 41331G - BEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR | ||||
| 90364-35010 |
KUN2#..DCB,SCB |
2 | ||
| 41332B - RING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT | ||||
| 90521-34003 |
KUN2# |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
KUN2#..DCB,SCB |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-53020 |
KUN2# |
1 | ||
| 41342-35020 |
KUN2#..DCB,SCB |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
KUN2#..DCB,SCB |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
KUN2#..DCB,SCB |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-34010 |
KUN2#..DCB,SCB T=1.50 |
2 | ||
| 41361-34040 |
KUN2#..DCB,SCB T=1.65 |
2 | ||
| 41361-34030 |
KUN2#..DCB,SCB T=1.60 |
2 | ||
| 41361-34050 |
KUN2#..DCB,SCB T=1.70 |
2 | ||
| 41361-34070 |
KUN2#..DCB,SCB T=1.80 |
2 | ||
| 41361-34080 |
KUN2#..DCB,SCB T=1.85 |
2 | ||
| 41361-34020 |
KUN2#..DCB,SCB T=1.55 |
2 | ||
| 41361-34060 |
KUN2#..DCB,SCB T=1.75 |
2 | ||
| 41361-34090 |
KUN2#..DCB,SCB T=1.90 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-34010 |
KUN2#..DCB,SCB T=1.50 |
2 | ||
| 41361-34040 |
KUN2#..DCB,SCB T=1.65 |
2 | ||
| 41361-34030 |
KUN2#..DCB,SCB T=1.60 |
2 | ||
| 41361-34050 |
KUN2#..DCB,SCB T=1.70 |
2 | ||
| 41361-34070 |
KUN2#..DCB,SCB T=1.80 |
2 | ||
| 41361-34080 |
KUN2#..DCB,SCB T=1.85 |
2 | ||
| 41361-34020 |
KUN2#..DCB,SCB T=1.55 |
2 | ||
| 41361-34060 |
KUN2#..DCB,SCB T=1.75 |
2 | ||
| 41361-34090 |
KUN2#..DCB,SCB T=1.90 |
2 | ||
| 41400 - ACTUATOR ASSY, DIFFERENTIAL VACUUM | ||||
| 41400-35032 |
KUN2#..DCB,SCB |
1 | ||
| 41400-35031 |
KUN2#..DCB,SCB |
1 | ||
| 41400-35033 |
KUN2# |
1 | ||
| 41433 - SLEEVE, DIFFERENTIAL CLUTCH | ||||
| 41433-35010 |
KUN2# |
1 | ||
| 41434 - HUB, DIFFERENTIAL CLUTCH | ||||
| 41434-35030 |
KUN2# |
1 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90107-12002 |
KUN2#..DCB,SCB *12-1.25PX78-30 |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60030 |
KUN2# |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60030 |
KUN2# |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
KUN2# |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
KUN2# |
2 | ||
| 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41655-0K011 |
KUN2# |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90177-22003 |
KUN2# |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
KUN2#..DCB,SCB |
1 | ||
| 90311-41015 |
KUN2#..DCB,SCB |
1 | ||
| 52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1 | ||||
| 52380-71010 |
KUN2# |
1 | ||
| 52393A - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52380-71020 |
KUN2# |
1 | ||
| 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 | ||||
| 52380-71030 |
KUN2# |
1 | ||
| Common parts | ||||
| 41467-71010 | ||||
| 90105-14090 | ||||
| 90105-T0078 | ||||
| 90105-T0080 | ||||
| 90105-T0303 | ||||
| 90119-T0149 | ||||
| 90178-T0025 | ||||
| 91511-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
