KUN25L-TRMSHW (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1KDFTV,2KDFTV..DCB,SCB

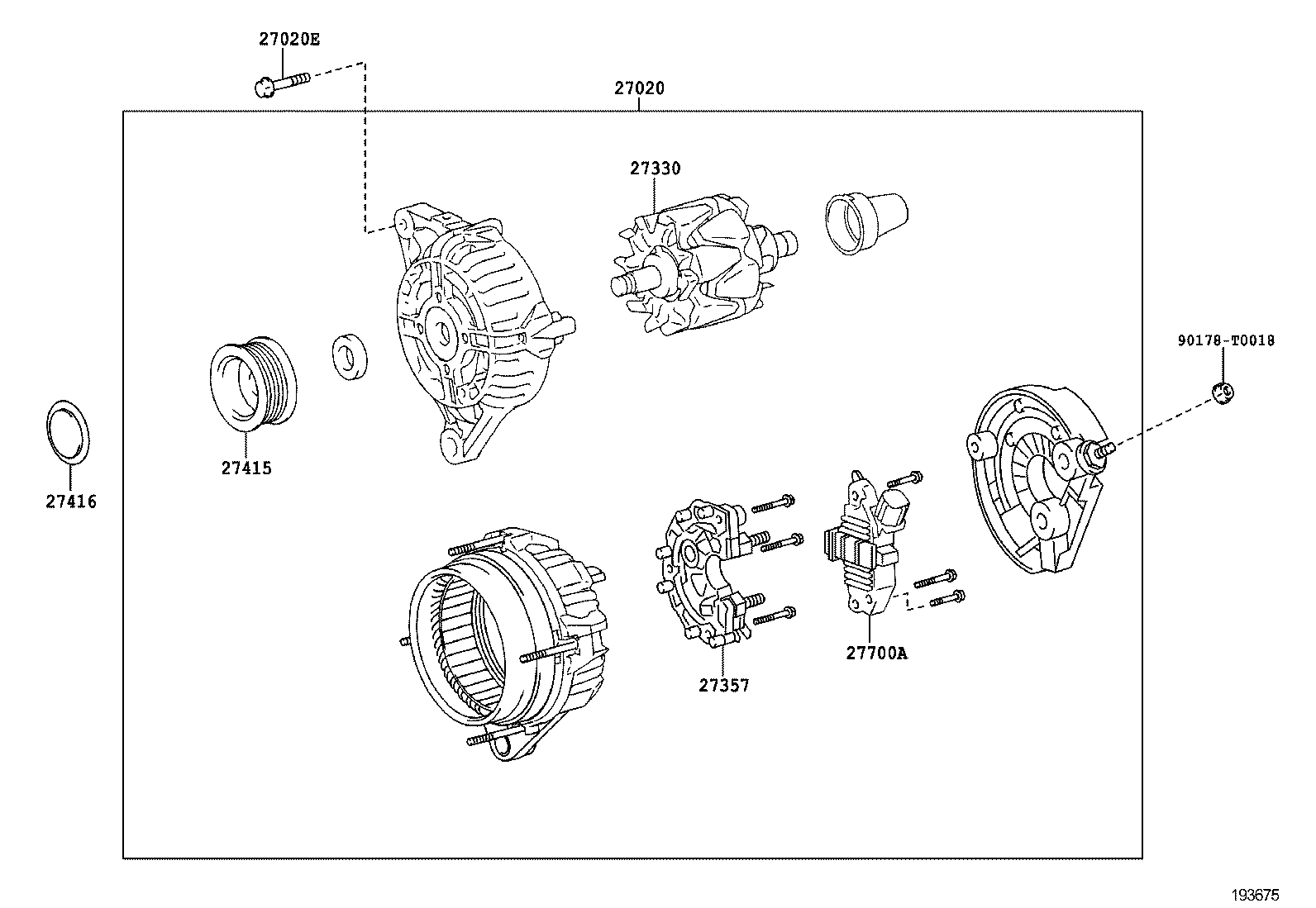

Click highlighted areas on diagram

12V 80A(BOSCH)

diagram 27020 27020E 27330 27357 27415 27416 27700A 90178T0018
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0L060

1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-T0074

1KDFTV,2KDFTV..KUN2#,35

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0L050

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-0L050

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0L040

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27416 - CAP, ALTERNATOR PULLEY
27416-33010

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0D020

2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB

 1
Common parts
90178-T0018
