KUN25L-TRMSHW (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )2KDFTV..KUN25..LHD..DCB,THDCB..CBU ;(1210-1308)2KDFTV..KUN35..THSCB ; (

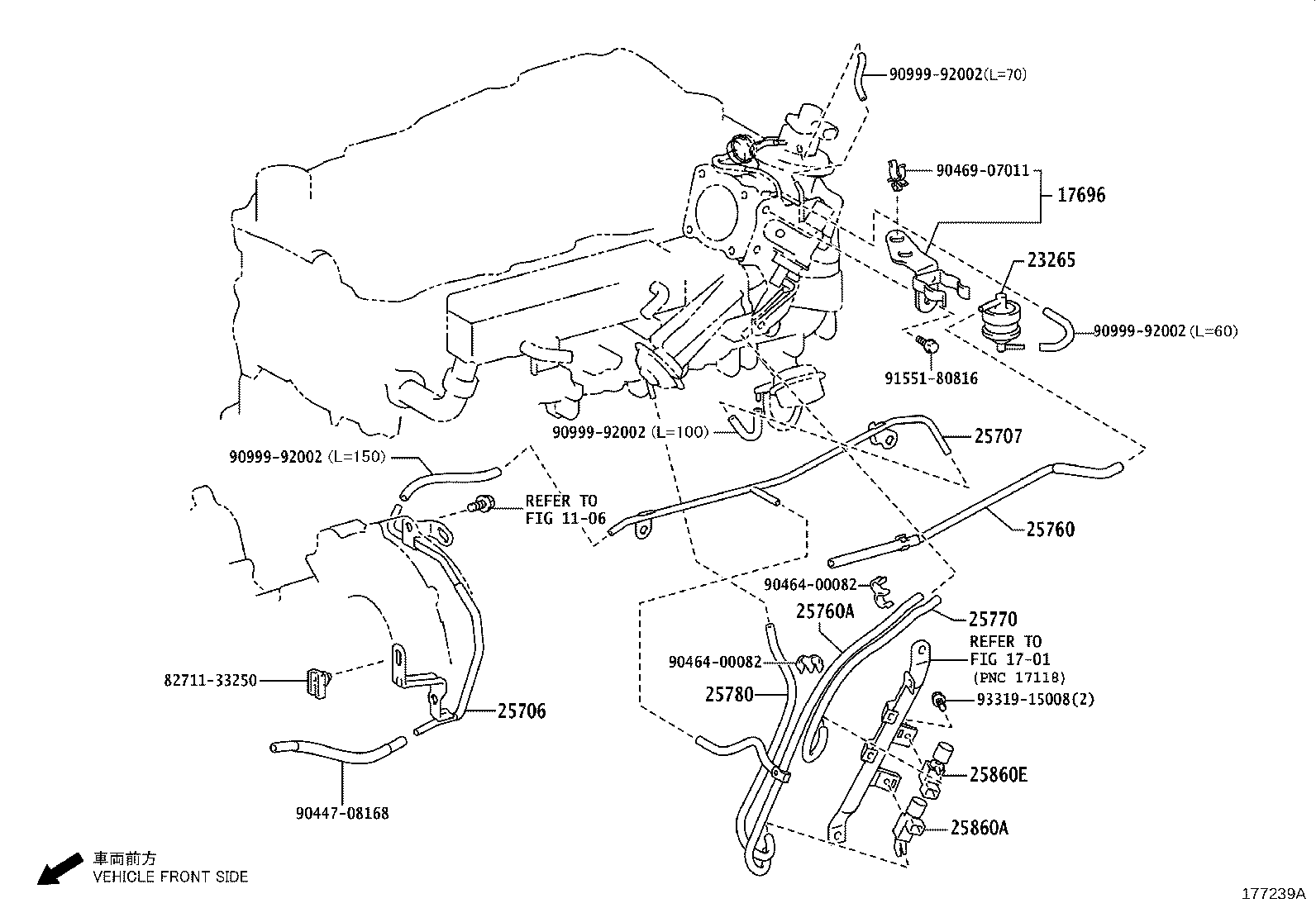

Click highlighted areas on diagram

RUSSIA & UKURAINE OR MOROCCO SPEC

diagram 1106 1701 17696 23265 25706 25707 25760 25760A 25770 25780 25860A 25860E 8271133250 9044708168 9046400082 9046400082 9046907011 9099992002 9099992002 9099992002 9099992002 9155180816 9331915008
Part # Description Qty Price
17696 - BRACKET, GAS FILTER
17696-30050

1KDFTV,2KDFTV..KUN2#,35

 1
23265 - FILTER, GAS, NO.1
90917-11044

1KDFTV,2KDFTV..KUN2#,35

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30070

1KDFTV,2KDFTV..KUN2#,35

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-30020

1KDFTV,2KDFTV..KUN2#,35

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-30070

1KDFTV,2KDFTV..KUN2#,35

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12093

1KDFTV,2KDFTV..KUN2#,35

 1
Common parts
82711-33250
90447-08168
90464-00082
90469-07011
90999-92002
91551-80816
93319-15008
Linked diagrams
1106
1701
