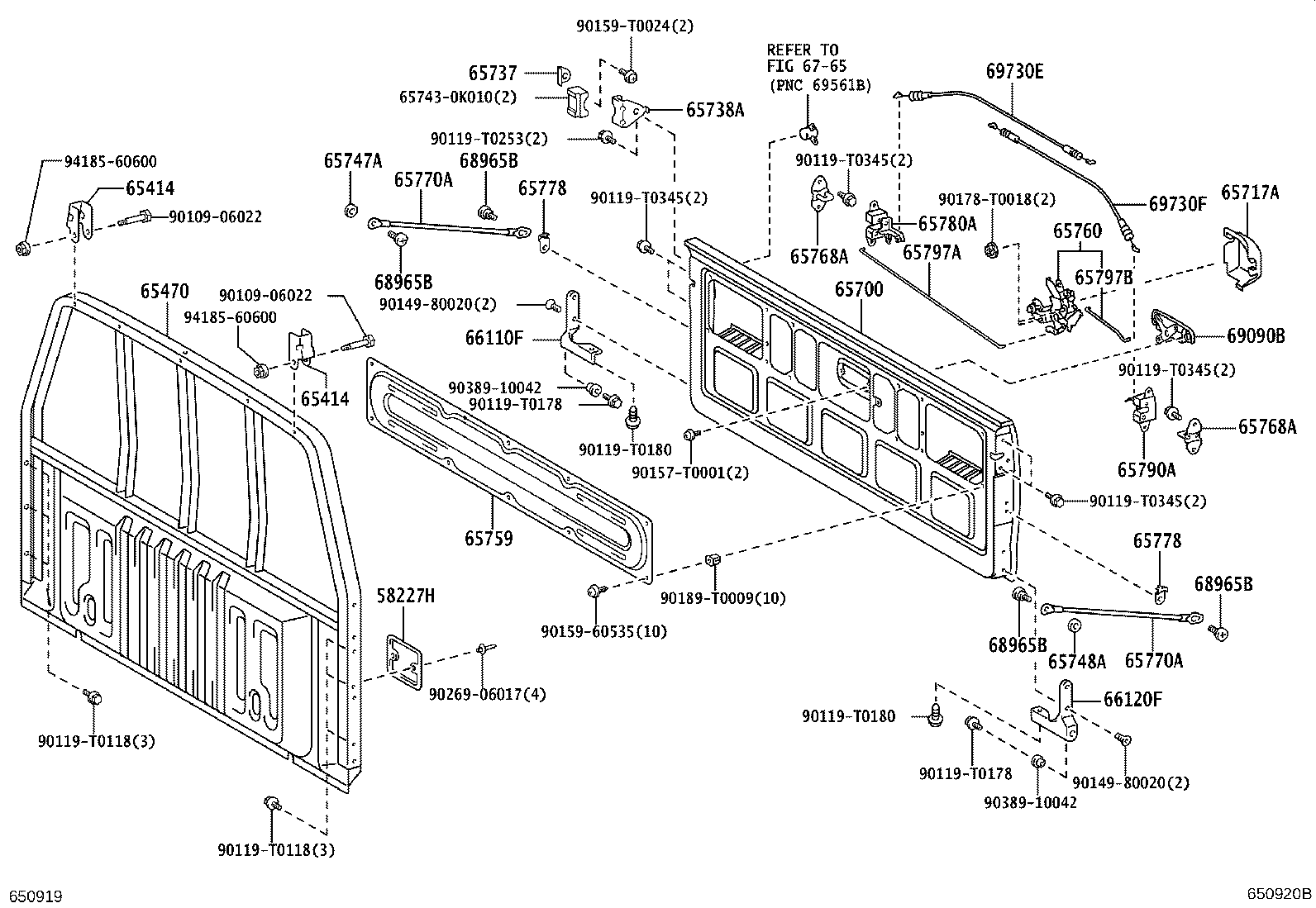

KUN25L-PRMSHW (2005)
Toyota Hilux
(0507- )KUN26..DCB..4FC ; (0507- )KUN25..DCB,XTR..CBU ; (0507- )KUN26..THD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65470-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65470-0K020 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
1 | ||
| 65470-0K020 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-0K040 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K040 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K100 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K041 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K041 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K101 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65737 - STOP, TAIL GATE | ||||
| 65737-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65737-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65738A - STOPPER, TAIL GATE LOCK HINGE, NO.1 | ||||
| 65738-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65738-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65747A - PLATE, TAIL GATE SEAL, RH | ||||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65748A - PLATE, TAIL GATE SEAL, LH | ||||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-0K060 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65759-0K060 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65780A - LOCK ASSY, TAIL GATE, RH | ||||
| 65780-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65780-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65790A - LOCK ASSY, TAIL GATE, LH | ||||
| 65790-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65790-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797A - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797B - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 66110F - HINGE ASSY, TAIL GATE, RH | ||||
| 66110-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66110-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66110-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66110-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120F - HINGE ASSY, TAIL GATE, LH | ||||
| 66120-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66120-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 69090B - HANDLE ASSY, TAIL GATE | ||||
| 69090-89101 |
KUN15,2#..(4FC,5F)..SR |
1 | ||
| 69090-89101 |
KUN15,2#..(4FC,5F)..SR |
1 | ||
| Common parts | ||||
| 65743-0K010 | ||||
| 90119-T0118 | ||||
| 90119-T0178 | ||||
| 90119-T0180 | ||||
| 90119-T0253 | ||||
| 90119-T0345 | ||||
| 90149-80020 | ||||
| 90157-T0001 | ||||
| 90159-60535 | ||||
| 90159-T0024 | ||||
| 90189-T0009 | ||||
| 90269-06017 | ||||
| 90389-10042 | ||||
(0507-0808)KUN25..THDCB,XTR..CBU ; (0507-0808)KUN15..LHD..THDCB,XTR..HDCR..CBU ; (0
W(FLAME)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
2 | ||
| 65414-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
2 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
2 | ||
| 65414-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65470-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65470-0K020 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
1 | ||
| 65470-0K020 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-0K040 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K040 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K100 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K041 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K041 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K101 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65737 - STOP, TAIL GATE | ||||
| 65737-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65737-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65738A - STOPPER, TAIL GATE LOCK HINGE, NO.1 | ||||
| 65738-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65738-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65747A - PLATE, TAIL GATE SEAL, RH | ||||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65748A - PLATE, TAIL GATE SEAL, LH | ||||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-0K060 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65759-0K060 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65780A - LOCK ASSY, TAIL GATE, RH | ||||
| 65780-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65780-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65790A - LOCK ASSY, TAIL GATE, LH | ||||
| 65790-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65790-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797A - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797B - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 66110F - HINGE ASSY, TAIL GATE, RH | ||||
| 66110-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66110-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66110-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66110-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120F - HINGE ASSY, TAIL GATE, LH | ||||
| 66120-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66120-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 69090B - HANDLE ASSY, TAIL GATE | ||||
| 69090-89101 |
KUN15,2#..(4FC,5F)..SR |
1 | ||
| 69090-89101 |
KUN15,2#..(4FC,5F)..SR |
1 | ||
| Common parts | ||||
| 65743-0K010 | ||||
| 90109-06022 | ||||
| 90119-T0118 | ||||
| 90119-T0178 | ||||
| 90119-T0180 | ||||
| 90119-T0253 | ||||
| 90119-T0345 | ||||
| 90149-80020 | ||||
| 90157-T0001 | ||||
| 90159-60535 | ||||
| 90159-T0024 | ||||
| 90189-T0009 | ||||
| 90269-06017 | ||||
| 90389-10042 | ||||
| 94185-60600 | ||||
(0808- )KUN15,25..DCB,THDCB,XTR..CBU
W(FLAME)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58227H - COVER, HEADER PANEL, NO.1 | ||||
| 58227-0K030 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
2 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-0K010 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65470-0K020 |
KUN25..LHD..(SCB,THSCB)..CBU;KUN15,25..(DCB,THDCB,XTR)..CBU DECK GUARD FRAME-WITH(STOPPER) |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-0K040 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K100 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K041 |
KUN25..(DCB,THDCB,XTR)..CBU REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT&REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED |
1 | ||
| 65700-0K101 |
KUN25..(DCB,THDCB,XTR)..CBU |
1 | ||
| 65700-0K100 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65700-0K101 |
KUN25..LHD..(DCB,THDCB)..SR TAIL GATE-WITHOUT |
1 | ||
| 65737 - STOP, TAIL GATE | ||||
| 65737-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65738A - STOPPER, TAIL GATE LOCK HINGE, NO.1 | ||||
| 65738-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65747A - PLATE, TAIL GATE SEAL, RH | ||||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65748A - PLATE, TAIL GATE SEAL, LH | ||||
| 65747-0K010 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-0K060 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65768A - STRIKER, TAIL GATE LOCK | ||||
| 65768-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65770A - STAY ASSY, TAIL GATE | ||||
| 65770-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-0K010 |
KUN15,2#..(4FC,5F)..CBU |
2 | ||
| 65780A - LOCK ASSY, TAIL GATE, RH | ||||
| 65780-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65790A - LOCK ASSY, TAIL GATE, LH | ||||
| 65790-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797A - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K010 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 65797B - LINK, TAIL GATE LOCK CONTROL | ||||
| 65797-0K020 |
KUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)..CBU |
1 | ||
| 66110F - HINGE ASSY, TAIL GATE, RH | ||||
| 66110-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 66110-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120F - HINGE ASSY, TAIL GATE, LH | ||||
| 66120-0K011 |
KUN15,2#..(4FC,5F)..CBU |
1 | ||
| 66120-0K010 |
KUN25..CBU;KUN15..(DCB,SCB)..CBU |
1 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 68965B - SHAFT, TAIL GATE STAY | ||||
| 68965-0K010 |
KUN15,2#..(4FC,5F)..CBU |
4 | ||
| 69090B - HANDLE ASSY, TAIL GATE | ||||
| 69090-89101 |
KUN15,2#..(4FC,5F)..SR |
1 | ||
| Common parts | ||||
| 65743-0K010 | ||||
| 90109-06022 | ||||
| 90119-T0118 | ||||
| 90119-T0178 | ||||
| 90119-T0180 | ||||
| 90119-T0253 | ||||
| 90119-T0345 | ||||
| 90149-80020 | ||||
| 90157-T0001 | ||||
| 90159-60535 | ||||
| 90159-T0024 | ||||
| 90178-T0018 | ||||
| 90189-T0009 | ||||
| 90269-06017 | ||||
| 90389-10042 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 6765 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
