KUN25L-PRMSHW (2005)
Toyota Hilux
(0507- )KUN25..LHD..DCB,THDCB ; (0507- )KUN15..LHD..DCB,SCB,THDCB,THSCB..DLX.
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-0K191B0 |
KUN26..DCB..5F;KUN15,25..DCB,SCB 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-0K101B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU 3-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-0K030 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU SRS AIR BAG-WITHOUT |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-0K070B0 |
KUN15,2#..DCB,SCB DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040E0 |
KUN25..LHD..DCB..SR SRS AIR BAG-WITHOUT,SANDAL WOOD,TRIM0# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
KUN15,2#..4FC,5F |
1 | ||
| Common parts | ||||
| 90159-T0006 | ||||
(0507-0808) ; (0808-0810)KUN2#..DCB,SCB,THSCB,XTR..5F ; (0808- )4FC ; (0808-

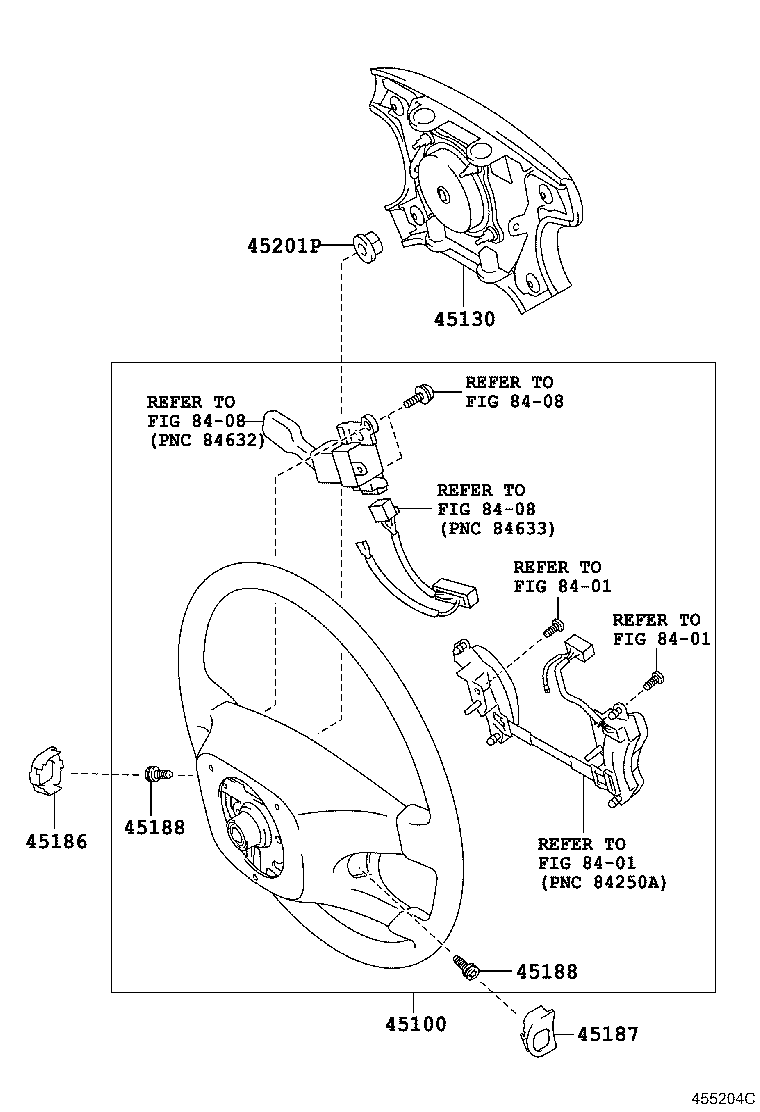

4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-0K191B0 |
KUN26..DCB..5F;KUN15,25..DCB,SCB 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-0K191B0 |
KUN26..DCB..5F;KUN15,25..DCB,SCB 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-0K101B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU 3-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45100-0K101B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU 3-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-0K070B0 |
KUN15,2#..DCB,SCB DK.GRAY,TRIM1# |
1 | ||
| 45130-0K070B0 |
KUN15,2#..DCB,SCB DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040E0 |
KUN25..LHD..DCB..SR SRS AIR BAG-WITHOUT,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-0K040E0 |
KUN25..LHD..DCB..SR SRS AIR BAG-WITHOUT,SANDAL WOOD,TRIM0# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-0K010 |
KUN15,2#..DCB,SCB L=18 |
2 | ||
| 45188-0K010 |
KUN15,2#..DCB,SCB L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-0K010 |
KUN15,2#..DCB,SCB L=18 |
2 | ||
| 45188-0K010 |
KUN15,2#..DCB,SCB L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
KUN15,2#..4FC,5F |
1 | ||
| 90179-12071 |
KUN15,2#..4FC,5F |
1 | ||
| Linked diagrams | ||||
| 8408 | ||||
(0808- )THDCB..SR ; (0810- )DCB..SR
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-0K191B0 |
KUN26..DCB..5F;KUN15,25..DCB,SCB 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-0K101B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU 3-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-0K070B0 |
KUN15,2#..DCB,SCB DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040B0 |
KUN25..LHD..DCB;KUN15..LHD..(DCB,SCB)..DLX..CBU SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 45130-0K040E0 |
KUN25..LHD..DCB..SR SRS AIR BAG-WITHOUT,SANDAL WOOD,TRIM0# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-0K010 |
KUN15,2#..DCB,SCB L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-0K010 |
KUN15,2#..DCB,SCB L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
KUN15,2#..4FC,5F |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
