KUN25L-DRMSHW (2011)
Toyota Hilux
Production
Jul 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )DCB,THDCB,XTR..SR

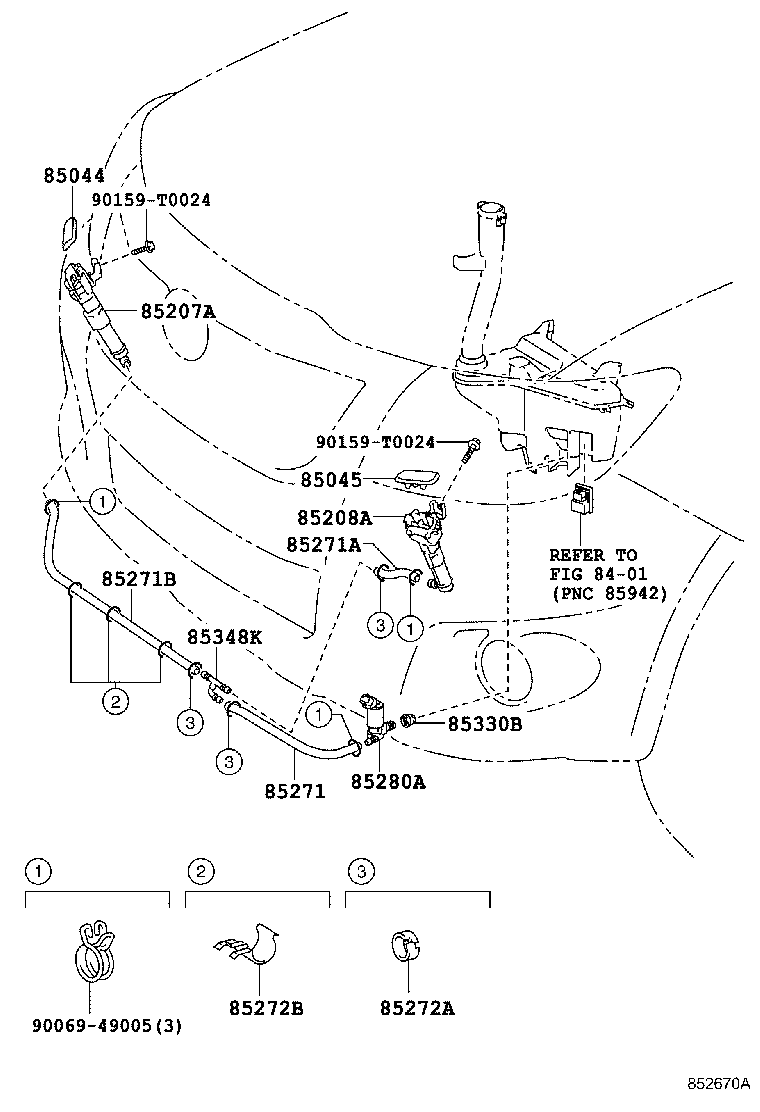

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85046-71020 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85047-71020 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-0K020 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-0K020 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85277-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85276-0K020 |
KUN2#,35..(DCB,THDCB,XTR)..SR L=50 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..SR L=1090 |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85273-20020 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
3 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 90075-90509 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
3 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-30040 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85279-0K010 |
KUN2#,35..(DCB,THDCB,XTR)..SR |
1 | ||
| Common parts | ||||
| 90069-49005 | ||||
| 90159-T0024 | ||||
| Linked diagrams | ||||
| 8401 | ||||
