KUN25L-DRMSHW (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCB,THDCB

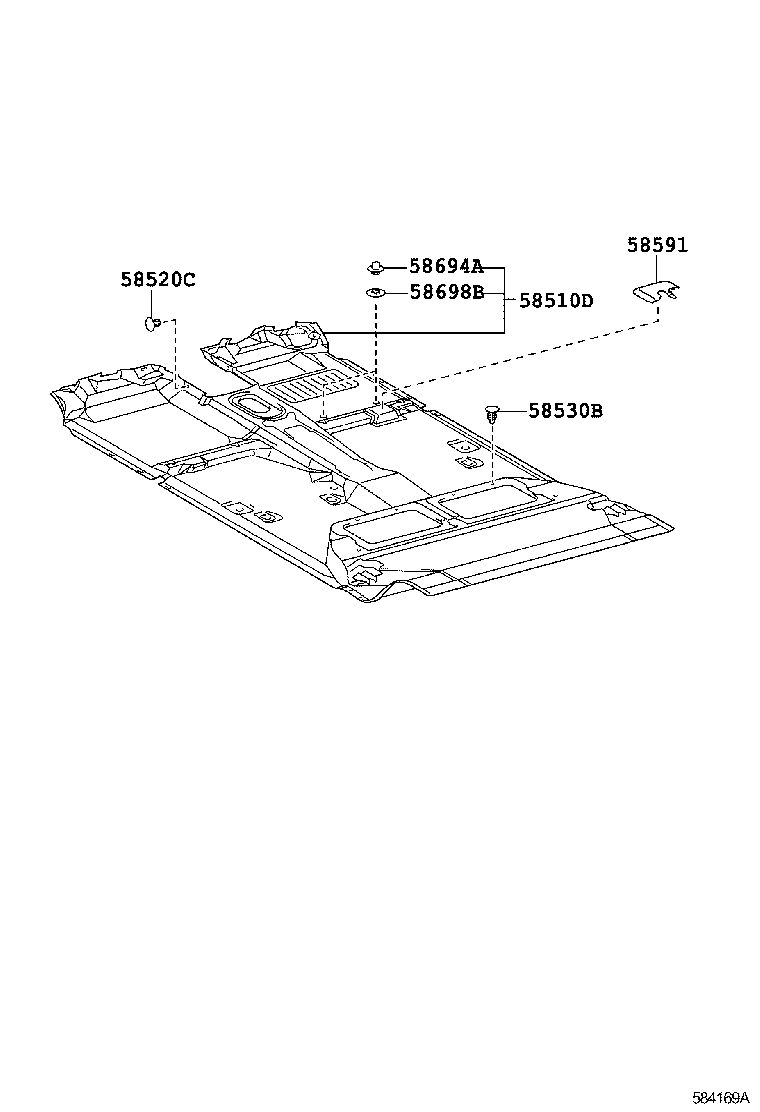

Click highlighted areas on diagram

diagram 58510D 58520C 58530B 58591 58694A 58698B
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-0KN50B0

KUN25,35..LHD..DCB..SR

FRONT SEAT-SPORTS SEAT&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#

 1
58510-0KN52B0

KUN25,35..LHD..DCB..SR

FRONT SEAT-SPORTS SEAT&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#

 1
58510-0KL11B1

KUN2#..LHD..DCB..5F

MD.GRAY,TRIM1#

 1
58510-0KN51B0

KUN25,35..LHD..DCB..SR

FRONT SEAT-SPORTS SEAT&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#

 1
58510-0KL12B1

KUN2#..LHD..DCB..5F

MID. GRAY,TRIM1#

 1
58510-0KN00B0

KUN25,35..THDCB..SR

FRONT SEAT-SPORTS SEAT&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#

 1
58510-0KK51B0

KUN25,35..THDCB;KUN26..THDCB..5FC

MID. GRAY,TRIM1#

 1
58510-0KK51C0

KUN25,35..THDCB;KUN26..THDCB..5FC

BLACK,TRIM2#

 1
58510-0KN00C0

KUN25,35..THDCB..SR

FRONT SEAT-SPORTS SEAT&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0029B0

KUN25..RHD..(SCB,XTR);KUN2#,35..LHD..(THDCB,XTR)

MD.GRAY,TRIM1#

 2
90467-T0029B0

KUN25..RHD..DCB;KUN26,35..DCB,SCB,THSCB;KUN25..LHD..(DCB,SCB,THSCB)

MD.GRAY,TRIM1#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-T0031B0

KUN26..5FC;KUN35..DCB,THDCB,XTR;KUN25..RHD..(DCB,XTR);KUN25..LHD..(THDCB,XTR)

MD.GRAY,TRIM1#

 8
90467-T0031B0

KUN26..DCB..5F;KUN25..LHD..DCB

MD.GRAY,TRIM1#

 8
58591 - COVER, FLOOR CARPET
58591-0K010B1

KUN2#,35..THDCB

MD.GRAY,TRIM1#

 1
58591-0K010B1

KUN2#,35..DCB

MD.GRAY,TRIM1#

 1
58591-0K010C0

KUN2#,35..THDCB

BLACK,TRIM2#

 1
58694A - PLATE, MAT SET, UPPER
58694-76010

KUN26,35;KUN25..DLX;KUN25..RHD..SCB..SR;KUN25..(DCB,THDCB,XTR)..SR

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

KUN26,35;KUN25..DLX;KUN25..RHD..SCB..SR;KUN25..(DCB,THDCB,XTR)..SR

 2
