KUN25L-DRMSHW (2011)
Toyota Hilux
ILLUST NO. 2 OF 2(1107- )1KDFTV..LHD..DCB..SR ; (1107- )2KDFTV..KUN25..LHD..DCB,THDCB..CBU ; (
RUSSIA & UKURAINE OR MOROCCO SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17116-0L010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 90460-80006 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 90460-80006 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17341-30060 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17342-30010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30100 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17860-30100 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17860-30030 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17860-30030 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17940-0L070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17940-0L060 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17940-0L060 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 12601-0L050 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 12601-0L070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 12601-0L070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17945-30080 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17945-30100 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17945-30100 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17946-30070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17946-30040 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17946-30040 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30030 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17947-30020 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17947-30020 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17947-30030 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||

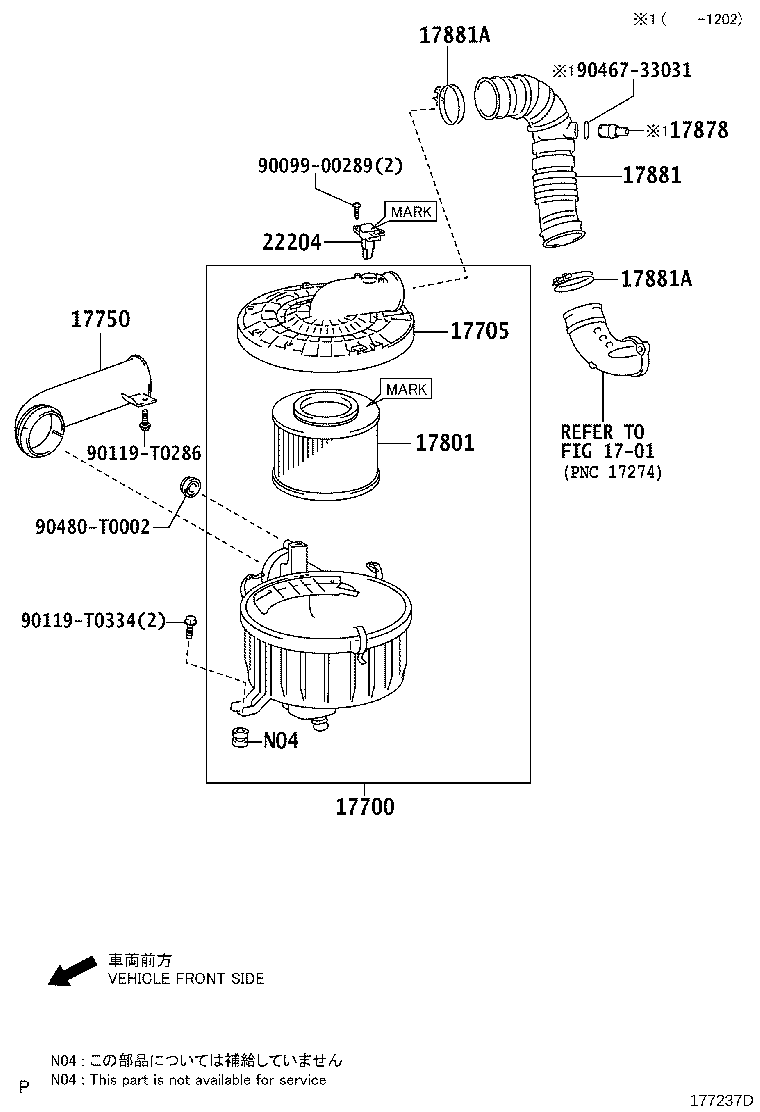

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L130 |
2KDFTV..KUN25..THDCB..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17705-0L220 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0L010 |
2KDFTV..KUN25..THDCB..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 22204-30020 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90467-33031 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV..THDCB,THSCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L190 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THDCB..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L130 |
2KDFTV..KUN25..THDCB..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17705-0L220 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0L010 |
2KDFTV..KUN25..THDCB..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 22204-30020 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90467-33031 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV,2KDFTV..KUN2#,35 |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30010 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30100 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17860-30030 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17940-0L060 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 12601-0L070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17945-30100 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17946-30040 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30030 |
1KDFTV,2KDFTV..KUN2#,35 |
1 | ||
| 17947-30020 |
1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU RUSSIA & UKRAINE SPEC |
1 | ||
| Common parts | ||||
| 23211-30050 | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-65012 | ||||
| 91551-80616 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
