KUN25L-DRMDHW3 (2011)
Toyota Hilux

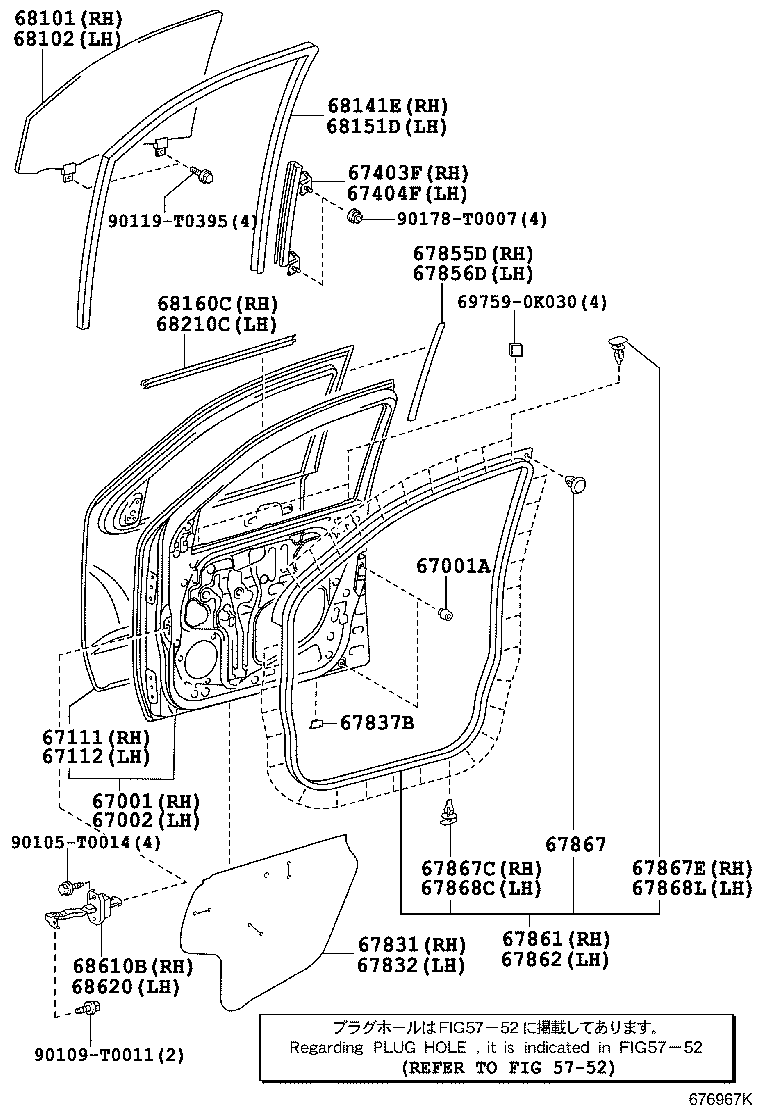

ILLUST NO. 1 OF 2(1107- )DCB,THDCB
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0K010 |
KUN2#,35..THDCB |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
KUN2#,35 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0K010 |
KUN2#,35..THDCB |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0K010 |
KUN2#,35 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0K010 |
KUN2#,35 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0K010 |
KUN2#,35..THDCB |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-0K010 |
KUN2#,35..THDCB |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-0K120 |
KUN2#,35..THDCB |
6 | ||
| 67837-0K120 |
KUN2#,35..DCB |
6 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-0K060 |
KUN2#,35..DCB,THDCB |
1 | ||
| 67856D - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-0K020 |
KUN2#,35..DCB,THDCB |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0K013 |
KUN2#,35..DCB,THDCB |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0K013 |
KUN2#,35..DCB,THDCB |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KUN2#,35..DCB,THDCB,THSCB,XTR |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KUN2#,35..DCB,THDCB |
23 | ||
| 67867E - RETAINER, FRONT DOOR LOWER PROTECTOR, RH | ||||
| 67867-52040 |
KUN2#,35..DCB,THDCB |
10 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KUN2#,35..DCB,THDCB |
23 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
KUN2#,35..DCB,THDCB |
10 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0K111 |
KUN2#,35..THDCB *TT,T=3.5,GREEN |
1 | ||
| 68101-0K110 |
KUN2#,35..THDCB *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0K111 |
KUN2#,35..THDCB *TT,T=3.5,GREEN |
1 | ||
| 68102-0K110 |
KUN2#,35..THDCB *TT,T=3.5,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0K011 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 68610-0K012 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 68610-0K010 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 68610-0K020 |
KUN2#,35..DCB,SCB |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-0K012 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 68620-0K020 |
KUN2#,35..DCB,SCB |
1 | ||
| 68620-0K010 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| 68610-0K011 |
KUN2#,35..THDCB,THSCB,XTR |
1 | ||
| Common parts | ||||
| 69759-0K030 | ||||
| 90105-T0014 | ||||
| 90109-T0011 | ||||
| 90119-T0395 | ||||
| 90178-T0007 | ||||
ILLUST NO. 2 OF 2(1107- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0K010C0 |
KUN25..(THDCB,XTR)..SR..EUR;KUN25,35..(THDCB,THSCB,XTR)..DLX BLACK,TRIM1#,2# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0K010C0 |
KUN25..(THDCB,XTR)..SR..EUR;KUN25,35..(THDCB,THSCB,XTR)..DLX BLACK,TRIM1#,2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0K620B1 |
KUN25,35..THDCB..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),MD.GRAY,TRIM1# |
1 | ||
| 67610-0K620B1 |
KUN25,35..THDCB..DLX POWER DOOR LOCK-WITH,MD.GRAY,TRIM1# |
1 | ||
| 67610-0K010B3 |
KUN25,35..THDCB..DLX MD.GRAY,TRIM1# |
1 | ||
| 67610-0K620C1 |
KUN25,35..THDCB..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2# |
1 | ||
| 67610-0K640B1 |
KUN2#,35..LHD..DCB..DLX POWER DOOR LOCK-WITH,MD.GRAY,TRIM1# |
1 | ||
| 67610-0K010C0 |
KUN25,35..THDCB..DLX BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KUN2#,35 NO.2:REFER ILLUST. |
4 | ||
| 90467-T0019 |
KUN2#,35..DCB,THDCB NO.1:REFER ILLUST. |
14 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KUN2#,35 NO.2:REFER ILLUST. |
4 | ||
| 90467-T0019 |
KUN2#,35..DCB,THDCB NO.1:REFER ILLUST. |
14 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KUN2#,35 NO.2:REFER ILLUST. |
4 | ||
| 90467-T0019 |
KUN2#,35..DCB,THDCB NO.1:REFER ILLUST. |
14 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09203 |
KUN2#,35 NO.2:REFER ILLUST. |
4 | ||
| 90467-T0019 |
KUN2#,35..DCB,THDCB NO.1:REFER ILLUST. |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0K620B1 |
KUN25,35..THDCB..DLX POWER DOOR LOCK-WITH,MD.GRAY,TRIM1# |
1 | ||
| 67620-0K640B1 |
KUN2#,35..LHD..DCB..DLX POWER DOOR LOCK-WITH,MD.GRAY,TRIM1# |
1 | ||
| 67620-0K620B1 |
KUN25,35..THDCB..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),MD.GRAY,TRIM1# |
1 | ||
| 67620-0K010B3 |
KUN25,35..THDCB..DLX MD.GRAY,TRIM1# |
1 | ||
| 67620-0K010C0 |
KUN25,35..THDCB..DLX BLACK,TRIM2# |
1 | ||
| 67620-0K620C1 |
KUN25,35..THDCB..DLX POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-0K010 |
KUN2#,35..THDCB,THSCB,XTR |
2 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 90467-T0027B3 |
KUN2#,35 MD.GRAY,TRIM1# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0K010 |
KUN2#,35..DCB,THDCB |
1 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 90159-T0013 | ||||
| 90164-T0006 | ||||
| 90189-T0005 | ||||
| 90189-T0011 | ||||
| 90467-10161 | ||||
| 90467-T0016 | ||||
| 90467-T0021 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||
