KUN25L-DRMDHW3 (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCB,THDCB

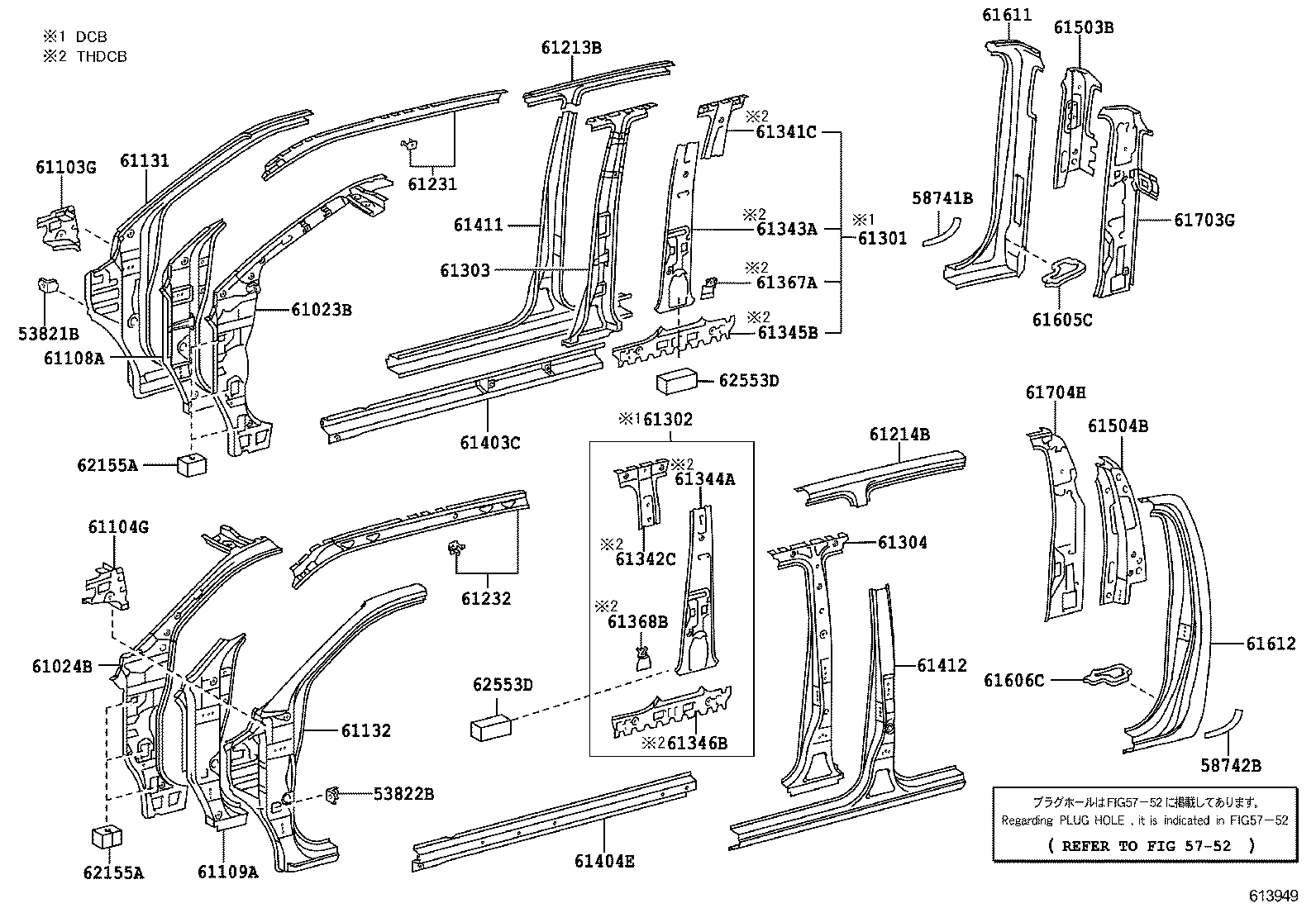

Click highlighted areas on diagram

diagram 53821B 53822B 5752 58741B 58742B 61023B 61024B 61103G 61104G 61108A 61109A 61131 61132 61213B 61214B 61231 61232 61301 61302 61303 61304 61341C 61342C 61343A 61344A 61345B 61346B 61367A 61368B 61403C 61404E 61411 61412 61503B 61504B 61605C 61606C 61611 61612 61703G 61704H 62155A 62155A 62553D 62553D
Part # Description Qty Price
53821B - BRACKET, FRONT FENDER, REAR RH
53821-16010

KUN2#,35

 1
53822B - BRACKET, FRONT FENDER, REAR LH
53821-16010

KUN2#,35

 1
58741B - PROTECTOR, QUARTER PANEL, RH
58741-0K050

KUN2#,35..DCB,THDCB

STEP & STEP COVER-WITHOUT

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-0K040

KUN2#,35..DCB,THDCB

STEP & STEP COVER-WITHOUT

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0K091

KUN2#,35

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0K102

KUN2#,35

 1
61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61103-0K010

KUN2#,35

 1
61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61104-0K010

KUN2#,35

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-0K010

KUN2#,35

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-0K010

KUN2#,35

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-0K020

KUN2#,35..DCB,THDCB

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-0K010

KUN2#,35..DCB,THDCB

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-0K010

KUN2#,35..DCB,THDCB

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-0K010

KUN2#,35..DCB,THDCB

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-0K903

KUN2#,35..DCB,THDCB

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-0K904

KUN2#,35..DCB,THDCB

 1
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-0K060

KUN2#,35..DCB,THDCB

 1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-0K060

KUN2#,35..DCB,THDCB

 1
61341C - PILLAR, CENTER BODY, INNER UPPER RH
61341-0K040

KUN2#,35..THDCB

 1
61342C - PILLAR, CENTER BODY, INNER UPPER LH
61342-0K040

KUN2#,35..THDCB

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-0K041

KUN2#,35..THDCB

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-0K041

KUN2#,35..THDCB

 1
61345B - PILLAR, CENTER BODY, INNER LOWER RH
61345-0K010

KUN2#,35..THDCB

 1
61346B - PILLAR, CENTER BODY, INNER LOWER LH
61346-0K010

KUN2#,35..THDCB

 1
61367A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61367-0K010

KUN2#,35..THDCB

 1
61368B - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61368-0K010

KUN2#,35..THDCB

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0K010

KUN2#,35..DCB,THDCB

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0K010

KUN2#,35..DCB,THDCB

 1
61411 - PANEL, ROCKER, OUTER RH
61411-0K010

KUN2#,35..DCB,THDCB

 1
61412 - PANEL, ROCKER, OUTER LH
61412-0K010

KUN2#,35..DCB,THDCB

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-0K010

KUN2#,35..DCB,THDCB

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-0K010

KUN2#,35..DCB,THDCB

 1
61605C - PANEL SUB-ASSY, QUATER, REAR INNER RH
61567-0K010

KUN2#,35..DCB,THDCB

 1
61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH
61568-0K010

KUN2#,35..DCB,THDCB

 1
61611 - PANEL, QUARTER, RH
61611-0K010

KUN2#,35..DCB,THDCB

 1
61612 - PANEL, QUARTER, LH
61612-0K010

KUN2#,35..DCB,THDCB

 1
61703G - PANEL SUB-ASSY, QUARTER, INNER RH
61703-0K111

KUN2#,35..DCB,THDCB

 1
61704H - PANEL SUB-ASSY, QUARTER, INNER LH
61704-0K151

KUN2#,35..DCB,THDCB

 1
62155A - PAD, COWL SIDE LOWER SILENCER
62155-0K010

KUN2#,35

 6
62155A - PAD, COWL SIDE LOWER SILENCER
62155-0K010

KUN2#,35

 6
62553D - PAD, PILLAR, NO.3
62557-0K010

KUN25,35;KUN26..DLX

 2
62553D - PAD, PILLAR, NO.3
62557-0K010

KUN25,35;KUN26..DLX

 2
Linked diagrams
5752
