KUN25L-CRMDHH (2011)
Toyota Hilux
Production
Nov 2011
-
Apr 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90179-06264 | ||||
| 90466-T0029 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 5355 | ||||
| 8714 | ||||
(0507- )
Click highlighted areas on diagram
W(VISCOUS HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-0K100 | ||||
| 90105-T0054 | ||||
| 90105-T0059 | ||||
| 90179-06264 | ||||
| 90466-T0029 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 5355 | ||||
| 8712 | ||||
| 8714 | ||||

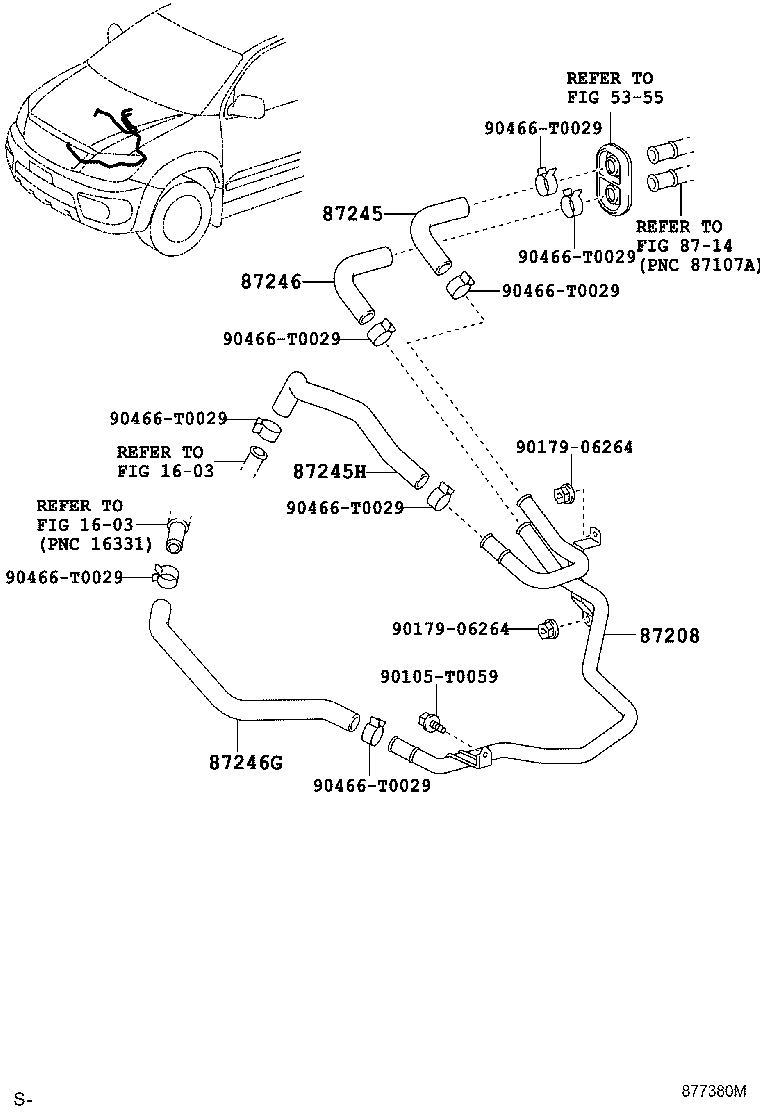

(1107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-0K140 |
KUN2#,35 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-0K300 |
KUN2#,35 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-0K860 |
KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DLX;KUN25..DLX..FLD;KUN25..(DCB,THDCB,XTR)..SR |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-0K300 |
KUN2#,35 |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-0K750 |
KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DLX;KUN25..DLX..FLD;KUN25..(DCB,THDCB,XTR)..SR |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90179-06264 | ||||
| 90466-T0029 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 5355 | ||||
| 8714 | ||||
