KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0507- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625C 88625H 88790B
Part # Description Qty Price

ILLUST NO. 1 OF 3(0507- )

Click highlighted areas on diagram

CONTROL---DIAL TYPE

diagram 5551 55900 55905A 55905A 55905A 55905B 55906 55908A 55909A 55910B 81942A 81942B 81942H 81942J 81942K 90167T0022
Part # Description Qty Price
Common parts
90167-T0022
Linked diagrams
5551

ILLUST NO. 2 OF 3(0507- )LHD

Click highlighted areas on diagram

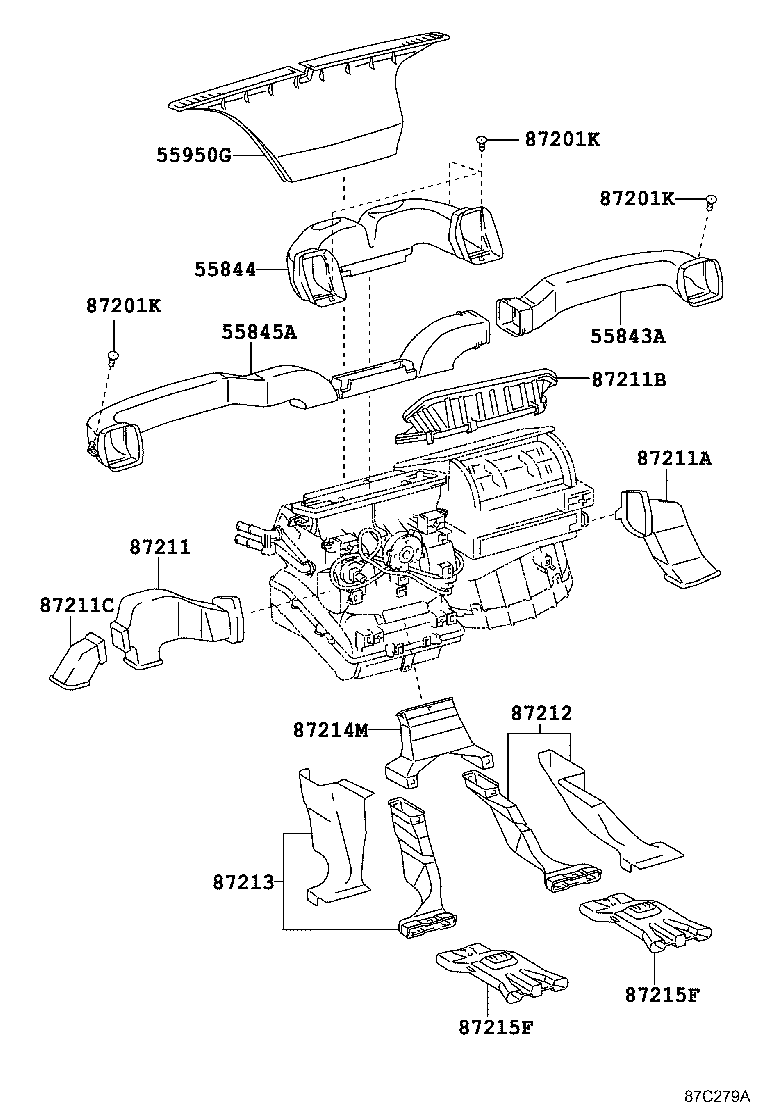

AIR DUCT

diagram 55843A 55844 55845A 55950G 87201K 87201K 87201K 87211 87211A 87211B 87211C 87212 87213 87214M 87215F 87215F
Part # Description Qty Price

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55912E 55912E 84013A 88484 88650B 9016730010 90167T0007
Part # Description Qty Price
Common parts
90167-30010
90167-T0007

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

MANUAL HEATER CONTROL

diagram 5551 55900 55905A 55905A 55905A 55905B 55906 55908A 55909A 55910B 81942A
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0K350

KUN25,35;KUN26..DLX

 1
55905A - KNOB, HEATER CONTROL
55905-0K101

KUN25,35..THDCB,THSCB,XTR

 3
55905A - KNOB, HEATER CONTROL
55905-0K101

KUN25,35..THDCB,THSCB,XTR

 3
55905A - KNOB, HEATER CONTROL
55905-0K101

KUN25,35..THDCB,THSCB,XTR

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-0K020

KUN25,35;KUN26..DLX

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-0K010

KUN25,35;KUN26..DLX

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0K050

KUN25,35..LHD;KUN26..LHD..DLX

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

KUN25,35;KUN26..DLX

 1
55910B - BULB, HEATER CONTROL
84999-10530

KUN25,35;KUN26..DLX

 2
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-0K490B0

KUN25,35..SR;KUN25..DLX..FLD

DK.GRAY,TRIM1#

 1
81942-0K490C0

KUN25..DLX..FLD

BLACK,TRIM1#,2#

 1
Linked diagrams
5551

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625C 88625H 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

KUN25..FLD;KUN26..RHD;KUN26..LHD..SR;KUN25..RHD..DLX;KUN25..XTR..SR..EUR

 1

ILLUST NO. 2 OF 3(1107- )LHD

Click highlighted areas on diagram

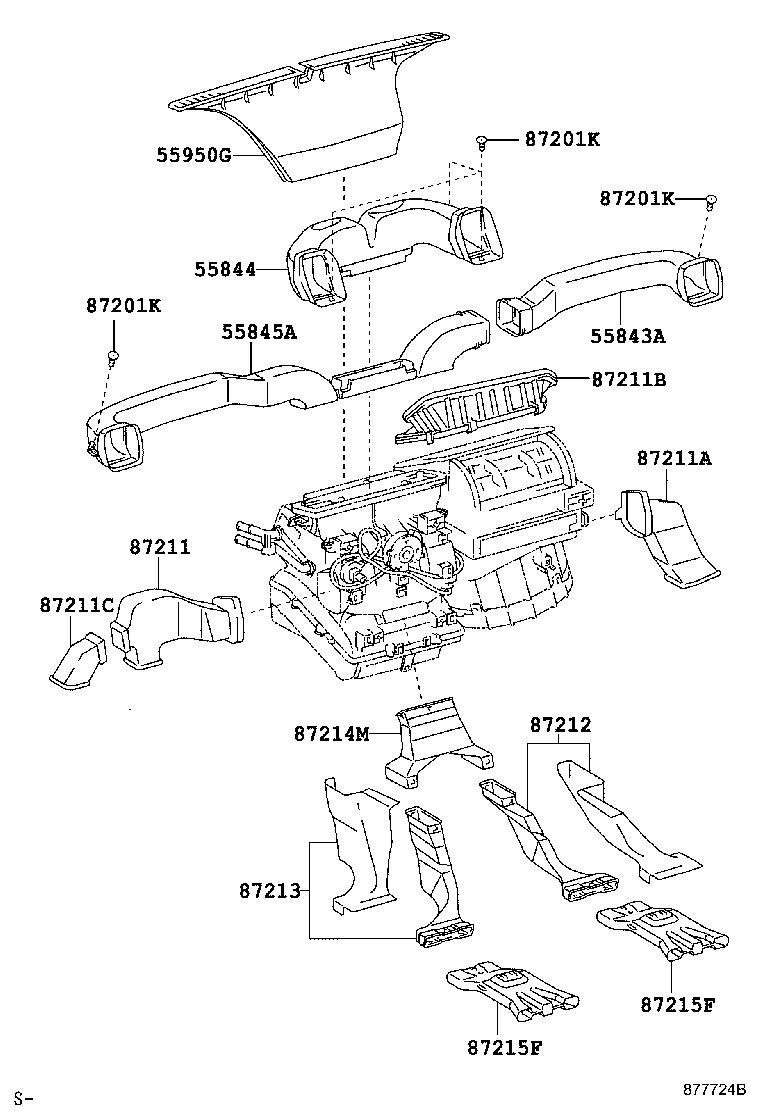

AIR DUCT

diagram 55843A 55844 55845A 55950G 87201K 87201K 87201K 87211 87211A 87211B 87211C 87212 87213 87214M 87215F 87215F
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0K010

KUN25,35;KUN26..DLX;KUN26..LHD..SR

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55086-0K040

KUN25..LHD..EUR;KUN25..DLX..FLD;KUN26..LHD..DLX;KUN35..DCB,SCB,THSCB;KUN35..(THDCB,XTR)..DLX

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55087-0K010

KUN25,35;KUN26..DLX;KUN26..LHD..SR

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0K010

KUN2#,35

 1
87201K - CLIP (FOR AIR DUCT)
90467-T0002B1

KUN25;KUN26..DLX;KUN35..DCB,SCB,THSCB;KUN35..(THDCB,XTR)..DLX

MD.GRAY,TRIM1#

 5
87201K - CLIP (FOR AIR DUCT)
90467-T0002B1

KUN25;KUN26..DLX;KUN35..DCB,SCB,THSCB;KUN35..(THDCB,XTR)..DLX

MD.GRAY,TRIM1#

 5
87201K - CLIP (FOR AIR DUCT)
90467-T0002B1

KUN25;KUN26..DLX;KUN35..DCB,SCB,THSCB;KUN35..(THDCB,XTR)..DLX

MD.GRAY,TRIM1#

 5
87211 - DUCT, AIR, NO.1
87211-0K030

KUN2#,35..LHD..(THDCB,THSCB,XTR)

 1
87211A - DUCT, AIR, NO.2
87211-0K040

KUN2#,35..LHD..(THDCB,THSCB,XTR)

 1
87211B - DUCT, AIR, NO.3
87211-0K150

KUN2#,35..LHD..(THDCB,THSCB,XTR)

 1
87211C - DUCT, AIR, NO.4
87211-0K330

KUN2#,35..LHD..(THDCB,THSCB,XTR)

 1
