KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86211 86212 86221A 86221D 90153T0001 90153T0001 90163T0001 90163T0001 90163T0001 90163T0001
Part # Description Qty Price
Common parts
90153-T0001
90163-T0001

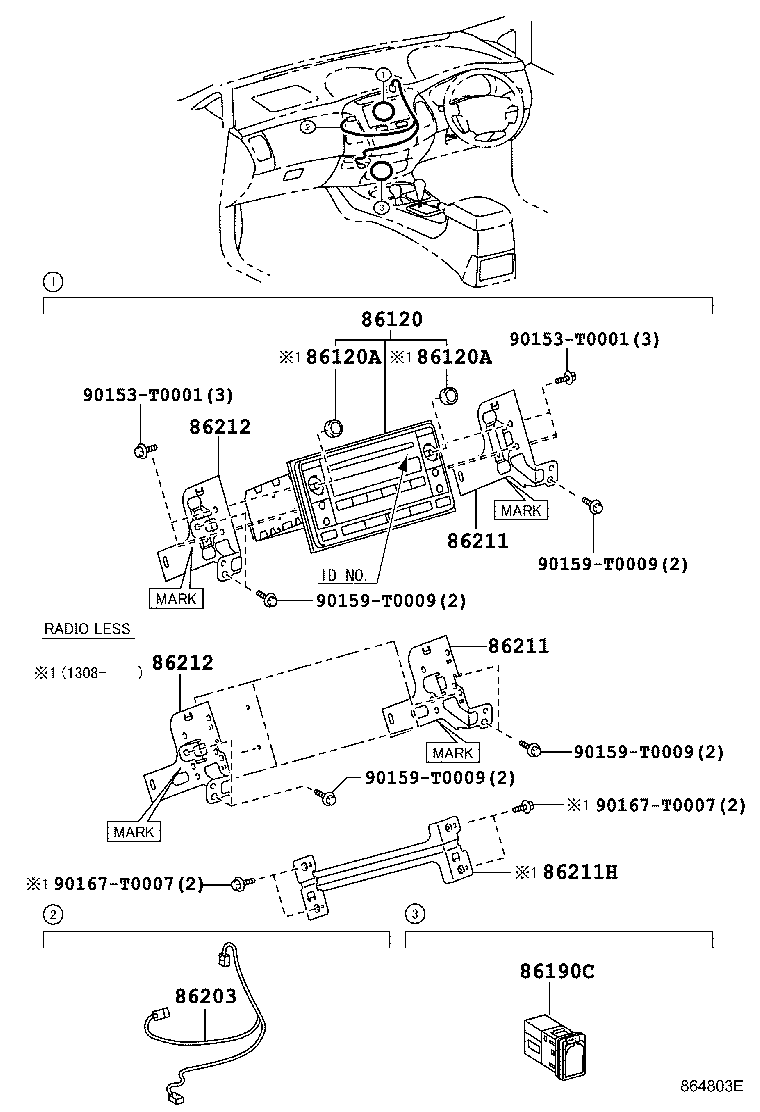

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86190C 86203 86211 86211 86211H 86212 86212 90153T0001 90153T0001 90159T0009 90159T0009 90159T0009 90159T0009 90167T0007 90167T0007
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0K550

KUN25..DLX..FLD

PANASONIC,ID=53874,TYPE A:REFER ILLUST.

 1
86120-0K490

KUN25..DLX..FLD

FUJITSU TEN,ID100009,TYPE A:REFER ILLUST.

 1
86120-0KC11

KUN25..DLX..FLD

FUJITSU TEN,ID100305,TYPE B:REFER ILLUST.

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25246

KUN25..DLX..FLD

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25246

KUN25..DLX..FLD

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0K010

KUN25..FLD;KUN26..THDCB

 1
86203 - WIRE, RADIO
86203-71060

KUN25..FLD;KUN26..THDCB

 1
86211 - BRACKET, RADIO, NO.1
86211-0K070

KUN25..DLX..FLD

MARK=YR

 1
86211 - BRACKET, RADIO, NO.1
86211-0K070

KUN25..DLX..FLD

MARK=YR

 1
86212 - BRACKET, RADIO, NO.2
86212-0K070

KUN25..DLX..FLD

MARK=YL

 1
86212 - BRACKET, RADIO, NO.2
86212-0K070

KUN25..DLX..FLD

MARK=YL

 1
Common parts
90153-T0001
90159-T0009
90167-T0007

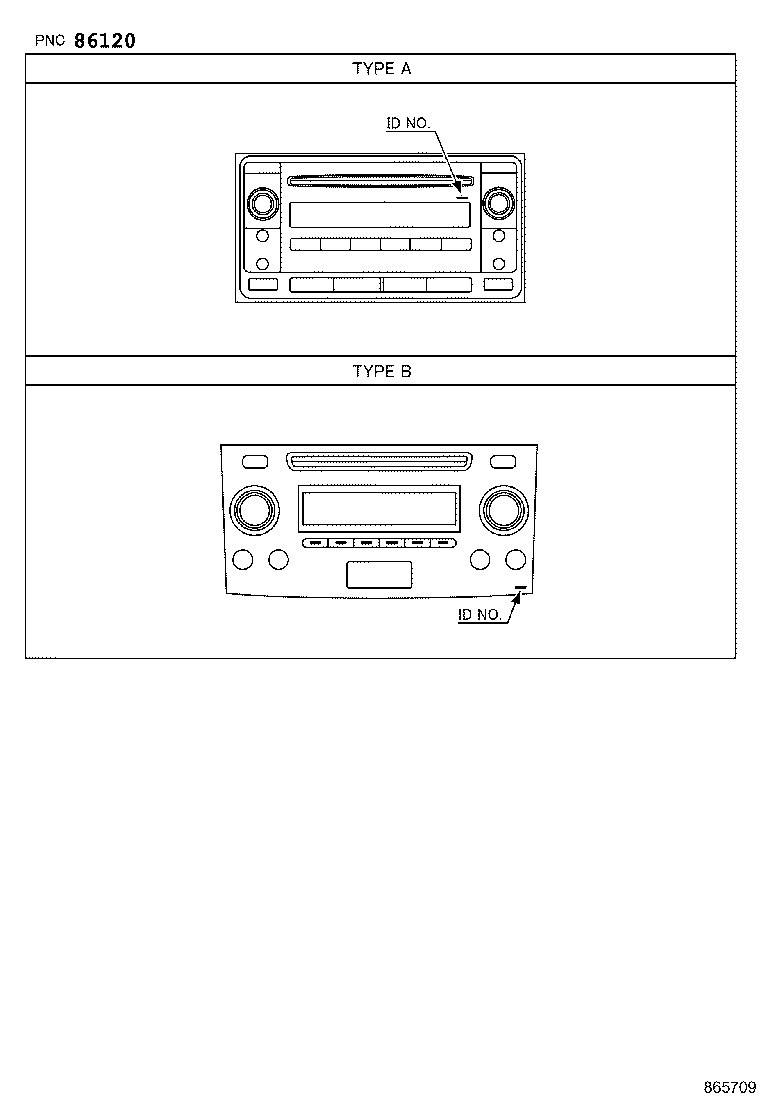

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0K550

KUN25..DLX..FLD

PANASONIC,ID=53874,TYPE A:REFER ILLUST.

 1
86120-0K490

KUN25..DLX..FLD

FUJITSU TEN,ID100009,TYPE A:REFER ILLUST.

 1
86120-0KC11

KUN25..DLX..FLD

FUJITSU TEN,ID100305,TYPE B:REFER ILLUST.

 1
