KUN25L-CRMDHH (2011)

Toyota Hilux

Production Nov 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )4FC,5F

Click highlighted areas on diagram

W/O HEADLAMP CLEANER

diagram 827110K070 8271116820 8271152070 8271152070 8271152090 85035 85035 85301 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 9011906818 90119T0144 9046707076A0
Part # Description Qty Price
Common parts
82711-0K070
82711-16820
82711-52070
82711-52090
90119-06818
90119-T0144
90467-07076A0

(1107- )

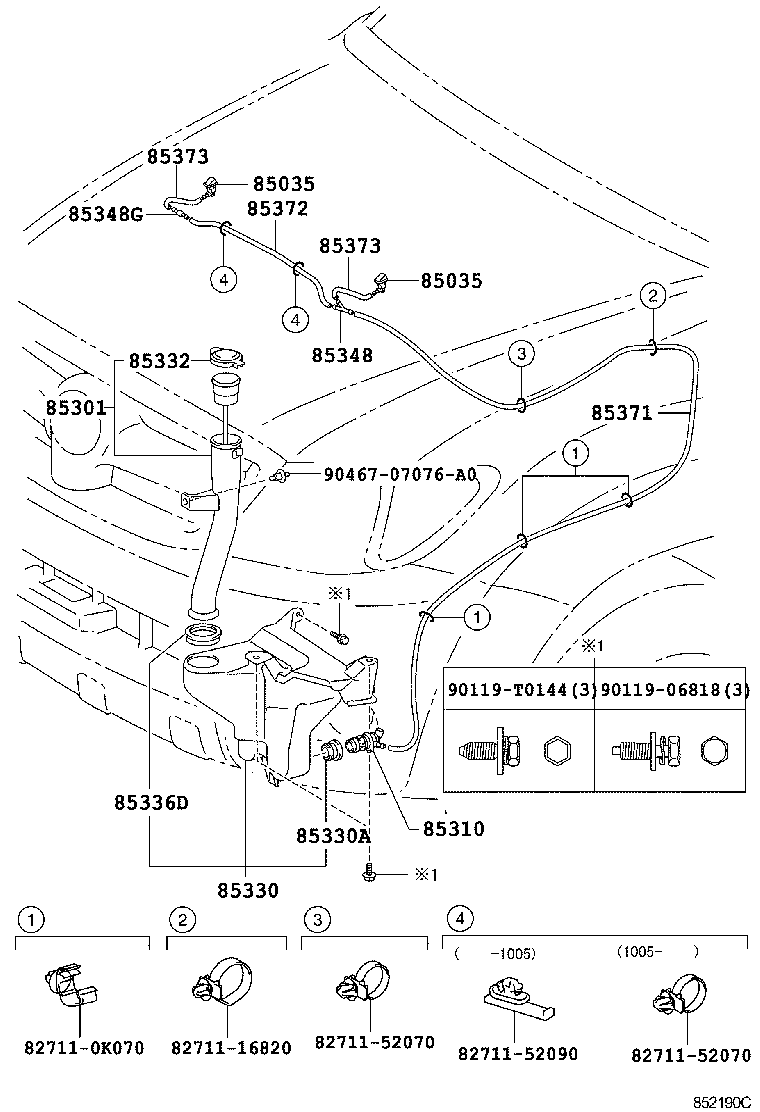

Click highlighted areas on diagram

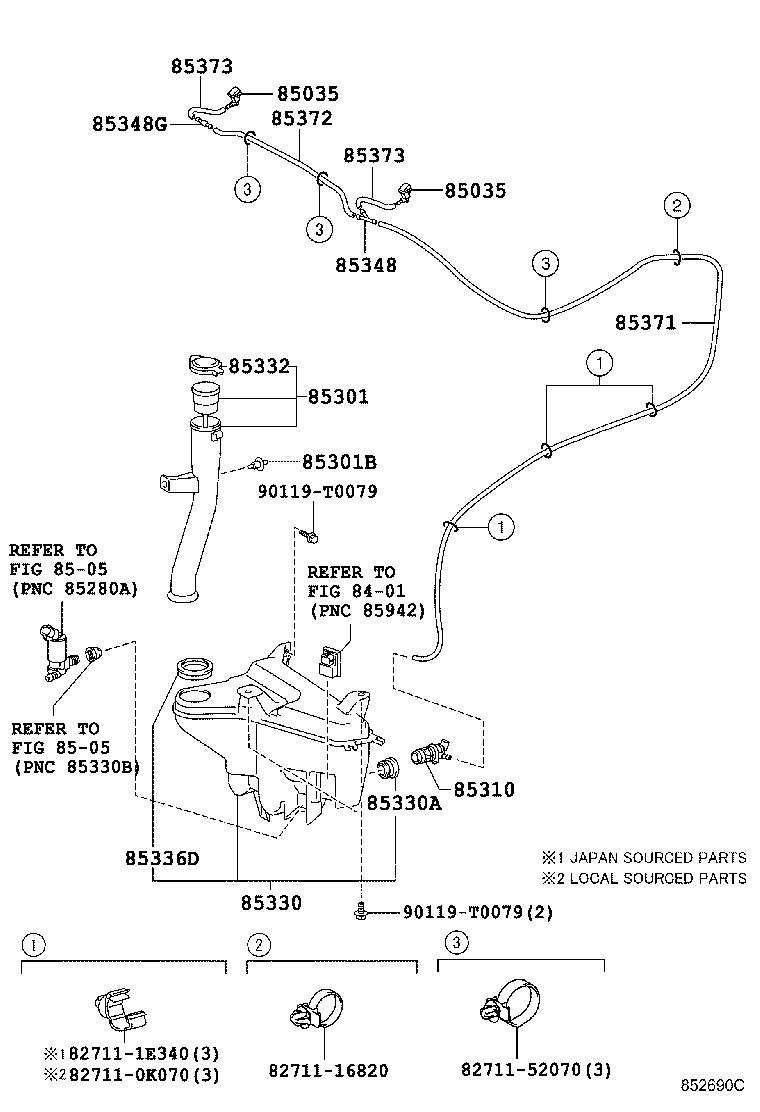

diagram 827110K070 8271116820 827111E340 8271152070 85035 85035 85301 85301B 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 90119T0079 90119T0079
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

KUN2#,35

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

KUN2#,35

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K010

KUN2#,35

 1
85301B - CLIP, WASHER
90467-07076A0

KUN2#,35

IVORY

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-71010

KUN2#,35

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K010

KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-0K020

KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K010

KUN2#,35

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0K010

KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051

KUN2#,35

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

KUN2#,35

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33108

KUN2#,35

L=1910

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KUN2#,35

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KUN2#,35

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KUN2#,35

*H,L=120

 2
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
90119-T0079

(1107- )

Click highlighted areas on diagram

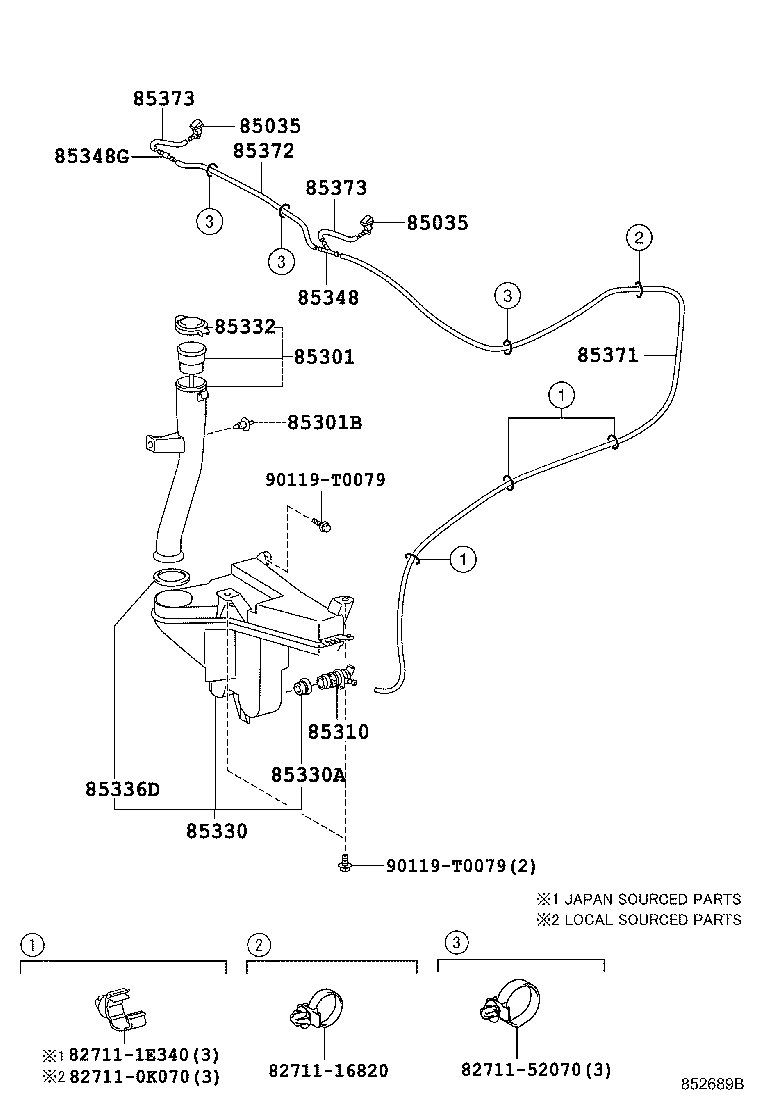

W(HEADLAMP CLEANER)

diagram 827110K070 8271116820 827111E340 8271152070 8401 85035 85035 8505 8505 85301 85301B 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 90119T0079 90119T0079
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

KUN2#,35

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

KUN2#,35

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K010

KUN2#,35

 1
85301B - CLIP, WASHER
90467-07076A0

KUN2#,35

IVORY

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-71010

KUN2#,35

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K010

KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-0K020

KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K010

KUN2#,35

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0K010

KUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..(DCB,THDCB,XTR)..DLX

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051

KUN2#,35

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

KUN2#,35

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33108

KUN2#,35

L=1910

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KUN2#,35

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KUN2#,35

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KUN2#,35

*H,L=120

 2
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
90119-T0079
